JW3318A Optical Power Meter with ONT Inventory Module & Optical Resource Verification Module
Features:
ONT Inventory Module
1. Supports ONU user information detection in EPON and GPON modes, and can directly read online user equipment ONT related information: (PPPOE, SN, MAC, Password, LOID, etc.)
2. Intelligently check the resource occupation or idle situation of optical network terminal: ONT online and offline (off, disconnected, optical cat not powered on, vagrant cat) status check 3. Support user uplink and downlink optical power test function

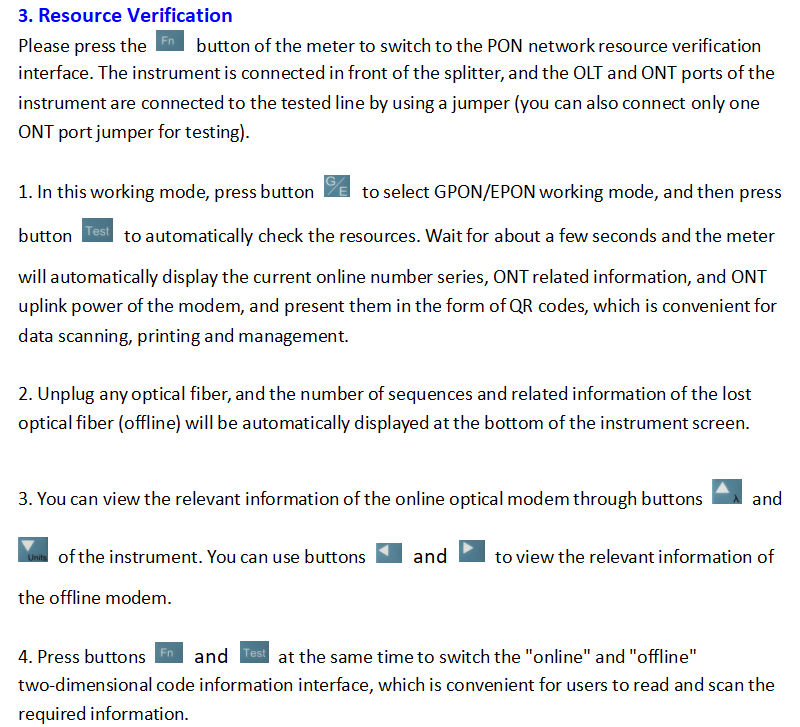

Resource Verification Module
1. Automatic fiber alignment for home access fiber:
A: Support to connect in front of an optical splitter, obtain all online ONU resources (SN, MAC, Password, LOID, etc.) under the optical splitter, plug and unplug each home access fiber to fiber
B: After connecting to an optical splitter, you can obtain online ONU resources (SN, MAC, Password, LOID, etc.) of home-access optical fiber
2. Support the test function of measuring the upstream and downstream optical power of all online users at various measurement points on the live network
3. Generate a QR code with information such as SN, MAC, PASSWORD, LOID, uplink and downlink power to facilitate data reading, printing, and management
Technical Parameters:
PON Power Meter (Optional):
- Detection range: 1310 uplink (+10 to -40dBm); 1490 downlink (+12 to -40dBm); 1550 downlink (+25 to -40dBm)
- Uncertainty: ≤0.5dB
- Display accuracy: 0.01dB
Optical Power Meter:
- Calibration wavelength: 1310/1490/1550/1625nm
- Detection range: +10 to -70dBm
- Uncertainty: ≤0.5dB
Visual Fault Locator VFL (Optional):
- Wavelength: 650±20nm
- Output optical power: ≥1mW
Optical Light Source (Optional):
- Wavelength: 1310±20nm & 1550±20nm
- Output optical power: 0dBm
Others:
- Interface type: (FC/SC)/PC
- Display: TFT color screen
- Power supply: 3.7V lithium battery or DC 5V power adapter
- Communication interface: Mini USB
- Working temperature: -5 to 40℃
- Storage temperature: -10 to 70℃
- Relative humidity: 0~95% (no condensation)
- Weight (without battery and sheath): 423g/0.93 lb
- Dimensions: 192 x 102 x 50mm/7.6 x 4 x 2"
Package Included:
- 1x Set of PON Terminal Tester
Note:
- If the optional functions are needed, please contact us to cover the cost. Thank you!
