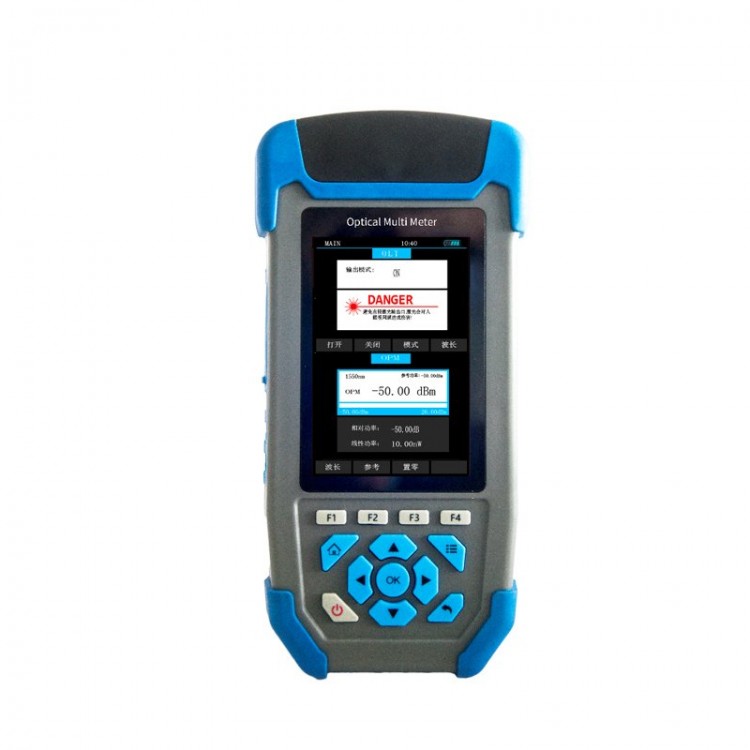

JW3329 Optical Multimeter Fiber Optic Power Meter & Optical Light Source 3.5" Screen Data Storage
Description:
The intelligent optical multimeter is a very cost-effective instrument with 3.5" screen. It has a smaller and lighter shell than that of JW3209, and has the functions of an optical power meter and a light source. The data record of the instrument test can be stored and uploaded. It is widely used in the construction, inspection and maintenance of optical fiber line projects such as digital data networks, telecommunications networks and limited TV.
Features:
- Light source automatic switching function
- Data communication storage and upload, and power supply via USB port
- Stable output frequency of light source
- Light detection function
- Simple function mode
- Data storage up to 1000pcs
- Real-time data reading. Convenient to embed system application
Technical Parameters:
OPM (Optical Power Meter):
- Calibration wavelength: 850/1300/1310/1490/1550/1625nm (customizable)
- Measuring range: -50 to +26dBm
- Display resolution: 0.01dB
- Uncertainty: ≤ ±0.25dB
- Frequency identification range: < 10K
- Interface type: FC (customizable)
Optical Light Source:
- Working wavelength: 1310/1550nm (customizable)
- Typical output power: > -5dBm
- Stability (30min, 20℃): ≤ 0.1dB
- Modulation frequency: CW, 270Hz, 1KHz, 2KHz
Other Parts:
- Power supply mode: lithium battery
- Battery continuous working time: standby> 20 hours; measurement> 12 hours
- Communication interface: Micro USB
- Working temperature: -10 to 60℃
- Storage temperature: -25 to 70℃
- Display: 3.5-inch color LCD screen
- Dimensions: 173 x 82 x 37mm/6.8 x 3.2 x 1.5"
- Weight (excluding the weight of battery): ≤ 350g/0.8 lb
Package Included:
- 1 x Set of Optical Power Meter Light Source
