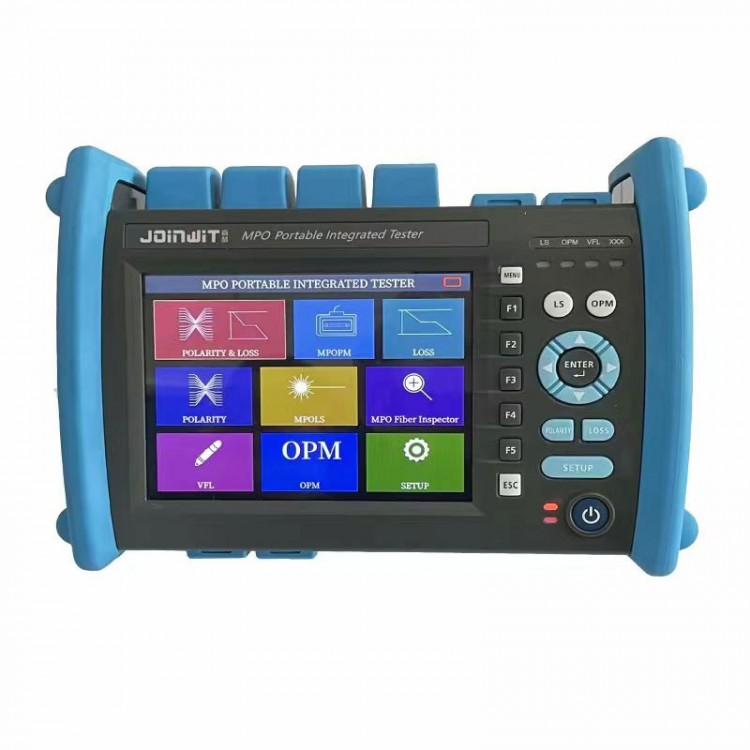

JW3502 24-Core MPO Integrated Tester MPO Terminal Detector with 5.6-invh Color Touch Screen
Description:
- JW3502 MPO integrated tester integrates the basic functions of MPO testing, including the light source, optical power meter, end detector and other functional modules, supporting 24-core MPO polarity and loss testing (compatible with 12 cores downward). The meter features a 5.6-inch color touch screen and integrated MPO terminal detector to ensure connector cleanliness. The integrated and convenient MPO link solution ensures a fast and reliable workflow when testing and verifying the network links connected by MPO, which greatly facilitates the construction and maintenance of data center rooms and site.
Features:
- Support single instrument polarity and loss testing at the same time
- Support 24-core and 12-core testing
- 5.6 -inch LCD touch screen
- Support customizable pass or not in threshold
- Any of two instruments can remote different systems in pair
Application:
- Data center
- Room
- Digital data network engineering maintenance
- Optical communication teaching and research
Package Included:
- 1 x MPO Tester
- 1 x Pack of Optical Interface
- 1 x 5V Power Adapter
- 1 x Micro USB Cable
- 1 x 24-core SM MPO/APC Female head-24core MPO/PC Female head (A-polar type)
- 1 x User Manual
- 1 x Certification
