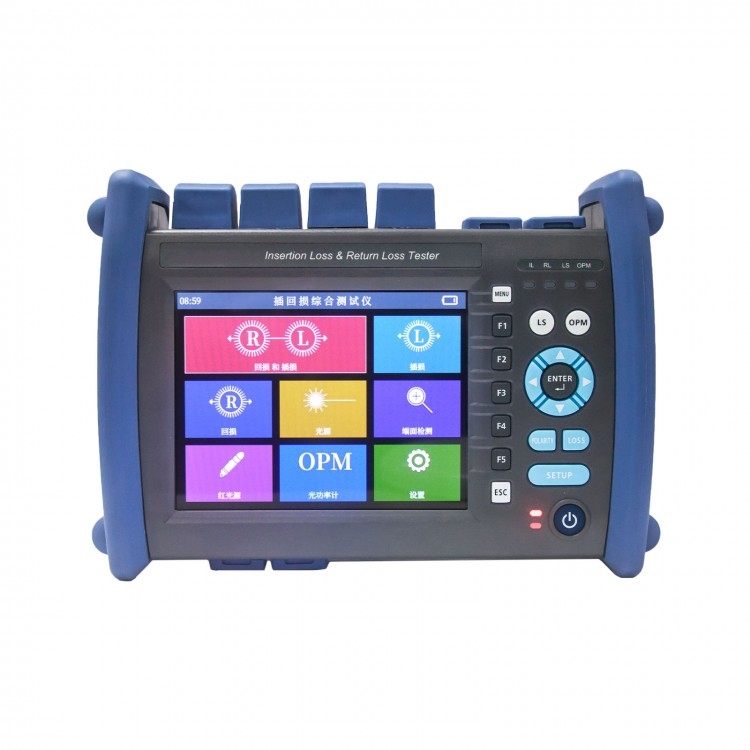

JW3503 Portable Insertion Loss & Return Loss Integrated Tester Support Multi-wavelength Automatic Test with 5.6-inch LCD
Description:
- JW3503 insertion loss and return loss integrated tester is a testing instrument. The performance of the instrument is stable and reliable. It is a multi-functional instrument integrating stabilized light source, high-precision power meter, insertion loss test, return loss test, visible red light source and end face detector. It is widely used in insertion loss and return loss test of optical fiber and cable, optical passive devices and optical fiber communication systems. It is a basic test instrument used by the majority of device manufacturers, scientific research institutions and operators for production testing, research and development and engineering construction and maintenance.
Features:
- Provides insertion loss, return loss, light source, optical power meter and other measurement modes
- Supports multi-wavelength automatic test and display
- Portable 5.6-inch LCD touch screen
- The threshold and alarm function are configurable
Application:
- Data center and equipment room
- Optical fiber and cable, optical passive device detection
- Digital data network project maintenance
- Teaching and research of optical communication
Package Included:
- 1 x Insertion Loss & Return Loss Integrated Tester
- 1 x Set of Optical Interface
- 1 x 12-19V 2A Power Adapter
- 1 x Micro USB Cable
- 1 x Test Line
- 1 x User Manual
- 1 x Certification
