Description:
JW4106N optical fiber fusion splicer is exclusively used in the hot splicing of the optical fiber connecting the user end of FTTX project as well as the manufacture of quick connector. The splicer uses high-speed image processing technology and special precision positioning technology, which can make the entire process of fiber splicing in nine seconds automatically. Large-screen LCD monitors make all stages of fiber splicing clear. It is small in shape, light in weight, and therefore is applicable for overhead work, work in confined space and field work. Its operation is simple, fusion speed is high and fusion loss is small, so it is particularly applicable to Optical Fiber Communication engineering and maintenance of communication fields such as telecommunications, broadcasting, railways, petrochemical, power supply, the armed forces, public security and other areas, and the teaching and research of research institutes.

Specifications:
- Model: JW4106N
- Applicable Optical Fibers: SM (G.652), MM (G.651), NZ (G.655), DS (G.653), COS (G.654), BUI (G.657) and EDF
- Applicable Core Type: Single Core
- Applicable Fiber Diameter: Cladding diameter 80-150μm; Coating diameter 100～1000μm
- Splicing Mode: Pre-store
- 8 groups Customize: 792 groups
- Splicing Results Recording: 10000-group splicing records & splicing images recording
- Splicing Speed: 9 sec (Standard Mode); 7s (Fast Mode)
- Alignment: Core alignment and cladding alignment
- Average Splicing Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS) and 0.04dB (NZ)
- Return Loss: ≧60dB
- Splicing Loss Estimation: Exist
- Power Supply: Input 220V±10%, 1.4A, 50/60Hz output 13.5V/5A
- Battery: 11.1V Lithium battery, typically splicing/heating 260 times, charging time 3h, 500 times rechargeable, 5200mAh
- Operation Environment: Altitudes 0～5000m, relative humidity 0～95% (No condensation), temperature -20℃ to 55℃; maximum wind speed15m/s
- Storage Conditions: Relative humidity 0～95% (No condensation), temperature -40℃ to 80℃
- Corrosiveness Resistance: The main device, components and their materials meet the requirements of GB/T 2423.54-2005 and are not vulnerable to the corrosiveness of fluid pollution
- Net weight: 1.53kg/3.4" (With battery)
- Dimensions: 146 x 131 x 152mm/5.7 x 5.2 x 6" (DxWxH)

Heating Shrinkable Tube:
- Applicable Diameter: 2mm/0.08", 3mm/0.12", 4mm/0.16", and 6mm/0.24"
- Applicable Length: 60mm/2.4", 50mm/2", 45mm/1.8", 40mm/1.6", 25mm/0.98" and 20mm/0.79"
- Heating Time: 2mm/0.08" tube (10-15S adjustable), 4mm/0.16" tube (14-19S adjustable), 6mm/0.24" tube (17-23S adjustable)
- Heating Temperature: 10-260℃ (Customizable)
- Automatic Heating: Automatic fiber recognition and heating after covered

Others:
- Tension Test: ≧2N（Optional）
- Display: 5 inches TFT true color HD LCD screen. Support multi-language selection
- Magnification: X/Y:200 times; X/Y:400 times
- USB Port: USB2.0
- Illumination: LED double white light

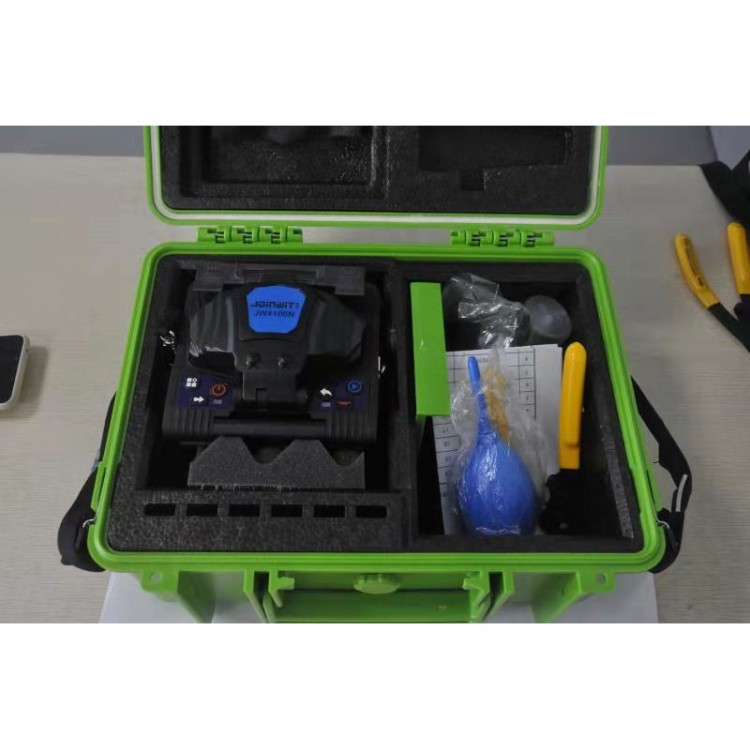

Package Included:
- 1 x Set of Fusion Splicer
