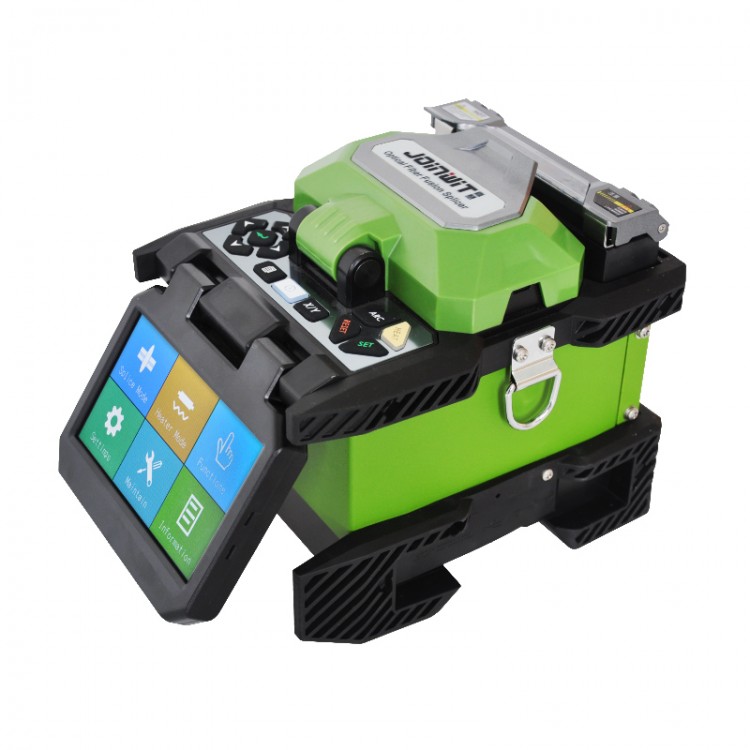

JW4106S Optical Fiber Fusion Splicer Fusion Splicing Machine For Core Alignment & Cladding Alignment

JW4106S Optical Fiber Fusion Splicer Fusion Splicing Machine For Core Alignment & Cladding Alignment

Description:
JW4106S optical fiber fusion splicer adopts innovative design methods and superb manufacturing technology to bring users an unprecedented fusion splicing experience. The new technology greatly shortens the welding and heat shrinking time. It uses a brand-new high-definition fiber optic microscope, imported high-speed motors, and a large number of aluminum alloy materials. It has the advantages of small size, light weight, low loss, high speed, and high reliability, which brings a new welding experience to users.

Features:
- Fiber core alignment ensures ultra-low fiber splicing loss
- 320 times image magnification, 5mm ultra-short fiber fusion splicing
- Fast splicing in 7 seconds, efficient heating in 18 seconds
- 300 groups of welding modes, 100 groups of heating modes
- HD LCD screen, high-strength protective panel. Simultaneously observe the X-axis and Y-axis directions of the fiber
- Three-in-one fixture can splice single cores, covered wires and fiber pigtails
- Small size and light weight
- USB and SD card interface, U disk automatic software upgrade. Built-in modular lithium battery, welding and heating cycles at least 200 times

Specifications:
- Model: JW4106S
- Host size (WxHxD): 120 x 130 x 154mm/4.7 x 5.1 x 6.1" (excluding the size of rubber feet pad)
- Weight: host 1.59KG/3.5" (host), 0.38KG/0.8" (battery)
- Alignment method: precise core alignment, precise cladding alignment
- Applicable fiber type: ordinary fiber, leather cable and jumper in accordance with ITU-TG.651/652/653/655/657
- Applicable fiber diameter: cladding: 80~150um, coating: 0.1~3mm
- Cutting length: 5~16mm (coated fiber diameter≤250um); 10mm (coated fiber diameter 0.25~3mm)
- Typical splicing loss: 0.02dB (SMF); 0.01dB (MMF); 0.04dB (DSF); 0.04dB (NZDSF)
- Return loss: better than 60dB
- Lighting: built-in high-brightness, wide-range lighting
- Splicing time: 7 seconds
- Typical heating time: 18 seconds
- Splicing records: 10,000 groups, 64 images storage
- Tensile test: 1.96~2.25N
- Heat shrink tubing: 60mm, 40mm and a series of heat shrink tubing
- Working environment: Altitude: 0~6000M/0-19685FT, relative humidity 0~95%RH; -10 to 50℃
- Image display: high-performance 4.3" LCD touch screen
- Magnification: 320 times/88 times
- Power input: AC power supply AC100~240V, 60Hz, 0~1.5A; DC power supply DC10~15V
- Battery life: 300~500 cycles of charging. Replaceable
- Battery capacity: 11.1V, 6400mAh. Typical value for welding and heating cycles 220 times
- Electrode life: 4000 times typical. Replaceable
- Operation interface: GUI graphical user operation interface
- External interface: USB/SD

Package Included:
- 1 x Set of Fusion Splicer
