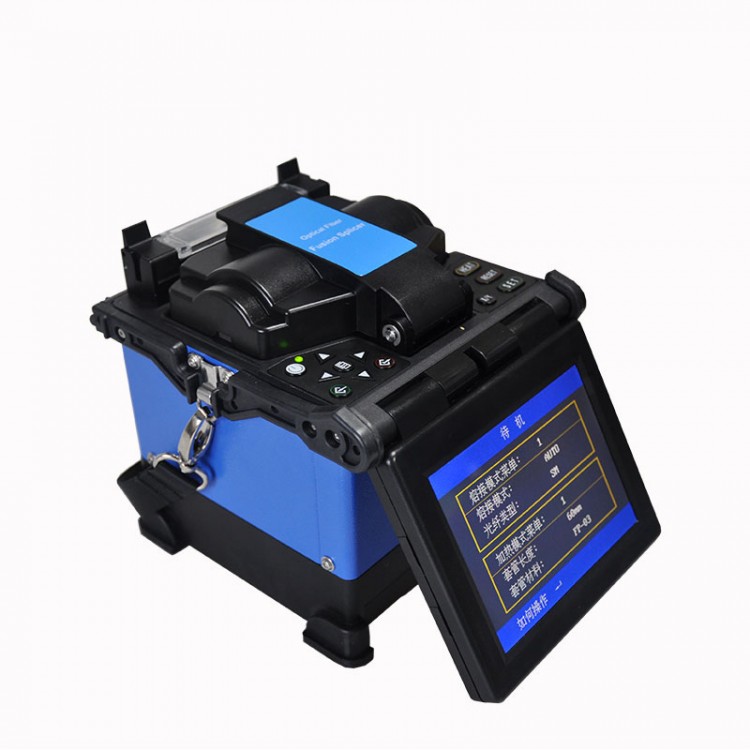

JW4109 Core Alignment Fusion Splicer Optical Fiber Fusion Splicer w/ 3-In-1 Fiber Cleaver 5" Screen

JW4109 Core Alignment Fusion Splicer Optical Fiber Fusion Splicer w/ 3-In-1 Fiber Cleaver 5" Screen

Description:
With smart appearance, reliable quality, JW4109 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

Features:
- Used for FTTH and ordinary fiber projects
- Core to core alignment by PAS technology
- 9s splicing time and 30s heating time
- With 5200mAh ultra-large capacity
- 300 X or Y view, 200 X and Y view
- 5 inch digital high-quality LCD screen, observe X and Y view at same time
- Three in one fixture, splicing single fiber cable, indoor cable and pigtails
- Built in large electricity of over 300 times splicing and heating
- V type high power automatic heater with steel based thick film, high thermal efficiency, fast heating and long life
- Small size and light weight

Specifications:
- Model: JW4109
- Fiber Types: SM, MM, DS, NZDS
- Splicing Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
- Return Loss: > 60dB
- Operation Modes: Manual, Half Auto, Auto
- Fiber Alignment: Core to Core Alignment by PAS technology, Cladding Alignment, Manual Alignment
- Applicable Fibers: Indoor Cables, 0.25mm,0.9mm Ordinary Fiber, SC Connector(Optional)
- Splicing Time: ≤9s
- Heating Time: ≤30s
- Cleaved Length: 8 to 16mm
- Fiber Image/ Magnification: 300/150X
- Storage: 8000 Groups
- Image Display: 5-inch LCD screen
- Tension Test: Standard 2N (Optional)
- Heat Shrinkable Sleeve: 60mm, 40mm and Serial Heat Shrinkable Sleeve
- Electrical Capacity: Typical splicing 300 times; 3-hour charging ( splicing and charging at the same time)
- Electricity Life Span: Cycling charging 300-500 times
- Electrodes Life Span: Typical 3000 times, easy to replace electrodes
- Max. Power: 20W
- Interface: USB port makes it convenient to download data and update software
- Construction Lighting: Built in high brightness lights for lighting in a wide range and easy operation at night
- External Power Adapter: Input AC100-240V & Output DC13.5V/4.5A
- Operating Condition: 0-5000m above sea level, Temperature: -10 to 60℃, Humidity:0 to 95%RH (No Condensation)
- Dimensions: 135 x 158 x 155mm

Package Included:
- 1 x Fusion Splicer JW4109
- 1 x Fiber Cleaver
- 1 x Fiber Stripper
- 1 x Charger
- 1 x AC Power Cord
- 1 x Pair of Spare Electrodes
- 1 x Cooling Tray
- 1 x Carrying Case
- 1 x Carrying Belt
- 1 x User Manual
