JW5009 250X Fiber Optic Microscope Fiber Inspection Microscope Handheld Fiber End Inspector Device

JW5009 250X Fiber Optic Microscope Fiber Inspection Microscope Handheld Fiber End Inspector Device

Description:
Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

JW5009 is a handheld microscope specifically designed for fiber optic connector end face inspection.

Features:
* FC/SC/ST/E2000/LC/MU/MPO compatible
* 3.5-inch TFT display
* Up to 250X overall magnification
* 4X digital zoom
* SD card storage up to 8G
* Snapshot, video recording and playback
* PC plug-and-play

Specifications:
- Model: JW5009
- Item Name: Handheld Video Microscope
- Display: 3.5" TFT-LCD, 320 x 240 pixels
- Dimensions: 170 x 100 x 40mm/6.7 x 3.9 x 1.6"
- Weight: 200g/0.44 lb (including battery)
- Power Supply: Replaceable battery or universal input 5V DC adapter
- Battery: Rechargeable Li-Ion, 3.7V / 1450mAh
- Battery duration time: > 3 hours (continuous)
- Image / Video Storage: 8GB SD card
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 70°C

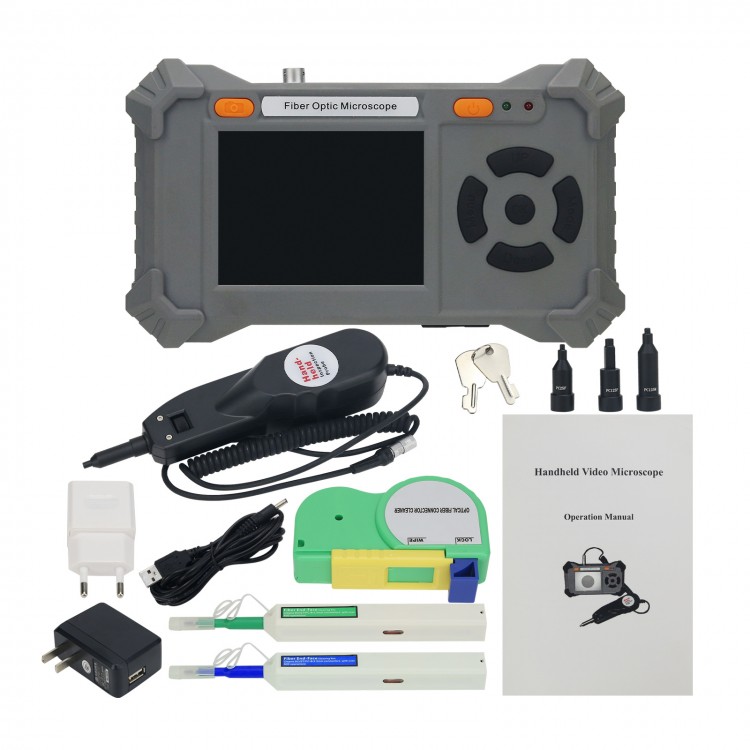

Package Included:
- 1 x Inspection Probe
- 1 x Mainframe
- 1 x AC power adapter/battery charger
- 1 x Rechargeable battery pack
- 1 x 2.5mm tip for PC male connector
- 1 x 1.25mm tip for PC male connector
- 1 x Tip for SC / FC PC female connector
- 1 x Tip for LC PC female connector
- 1 x Tip box
- 1 x User Manual
- 1 x Carrying case
