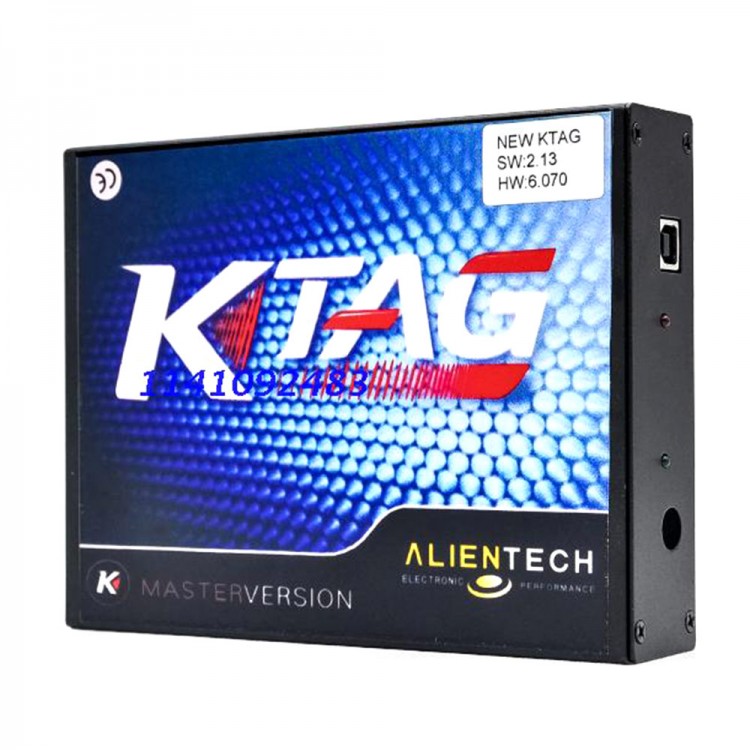

K TAG ECU Car Programming Tool V2.13 Firmware V6.070 KTAG Master Version No Tokens Limited K-TAG ECU Chip

K TAG ECU Car Programming Tool V2.13 Firmware V6.070 KTAG Master Version No Tokens Limited K-TAG ECU Chip

KTAG Description:
- The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.
- K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.
- Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.
- Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave version. This way, Slave user can rely on the larger network of Master in the chiptuning field.The only thing that K-TAG does not do: OBD Communication. But for that you can count on KESSv2.
- To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide range of special adapters, to be soldered on the ECU or to be used on the positioning frame.
- Fllowing details of the accessories available in car list catalog per each group of protocols of communication

BDM Motorola MPC5XX
- 14AS00T01S: Adapter to be soldered to the ECU
- 14AS00T02S: Cable with connector to be soldered to the ECU
- 14AS00T03S: Adapter to be soldered to the ECU
- 14AS00T04S: Adapter to be soldered to the ECU
- 14AM00T00M: Board for connection through positioning frame
- 14AM00T01M: Board for connection through positioning frame
- 14AM00T02M: Board for connection through positioning frame
- 14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
- 14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
- 14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03

J-TAG Nexus MPC5xx
- 14AS00T05S: Adapter to be soldered to the ECU
- 14AM00T05M: Board for connection through positioning frame
- 14AM00T06M: Board for connection through positioning frame

J-TAG RENESAS SH705xx
- 14AM00T07M: Write Board for connection through positioning frame
- 14AM00T08M: Write Board for connection through positioning frame
- 14AM00T09M: Write Board for connection through positioning frame
- 14AM00T10M: Read Board for connection through positioning frame
- 14AM00T11M: Read Board for connection through positioning frame

BOOTLOADER INFINEON TRICORE
14P600KT04: Board for connection through positioning frame

BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame

Note: This product cannot be linked to net,or it will be locked.

Package List:
- 1 x KTAG Main Unit
- 1 x 144300T 104
- 1 x 144300T 103
- 1 x 144300T 101
- 1 x 144300T 106
- 1 x 144300T 102
- 1 x 144300T 105
- 1 x 144300T 100
- 3 x Chips Inside
- 1 x Multi-Color Cable
- 1 x USB Cable
- 1 x Power Adapter
- 1 x CD
