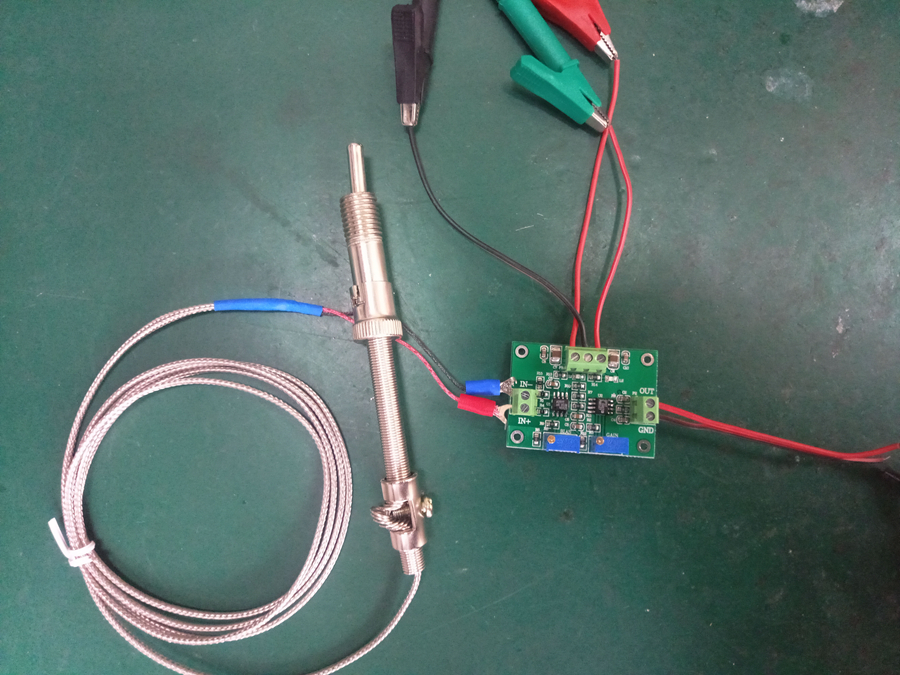

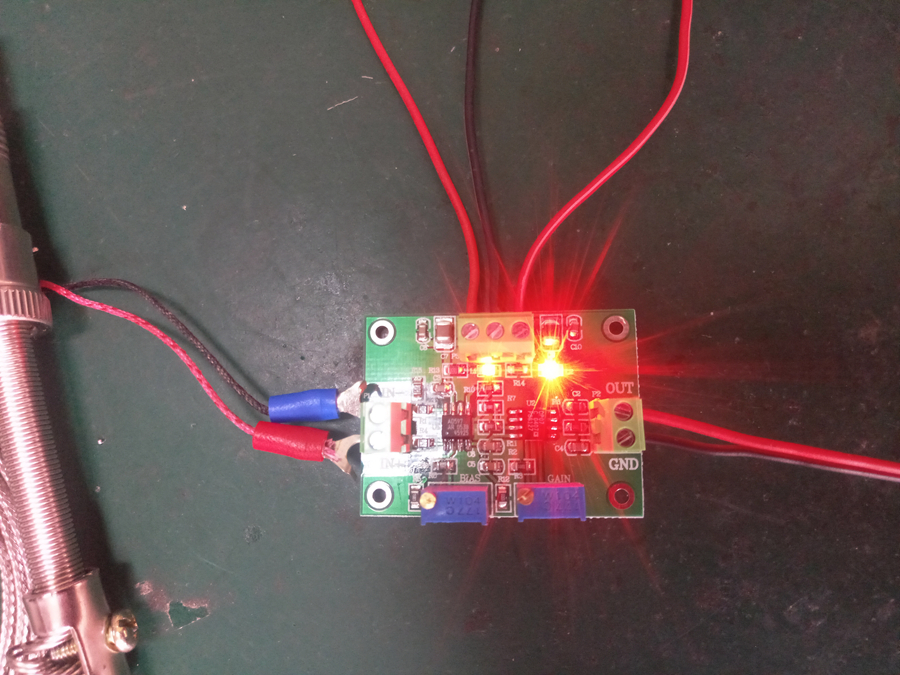

K Type Thermocouple Sensor + AD597 K-Thermocouple Module For Temperature Measuring Analog Output
Description:
The AD597 module can perform cold-junction compensation and amplification on K-type thermocouple input to obtain an internal signal that is proportional to the temperature.
It can be configured to provide a voltage output (10mV/℃) directly from a K-type thermocouple signal. It can also be used as a separate voltage output temperature sensor.
Features:
- Working with K-type (AD597) thermocouple
- Built-in freezing point compensation
- Temperature proportional working mode: 10mV/℃
- Temperature setting point mode: On/off
- Programmable switching hysteresis
- High impedance differential input
- Bias adjustment for zero adjustment and calibration
- Integrated amplifier circuit can adjust gain to decide whether to use MCU or PLC to collect data
Parameters:
- Item Name: AD597 K Type Thermocouple Regulator
- Size: 45 x 33mm
- Supply Voltage: ±5V to ±15V
- N.W.: 12.1g
Package Included:
- 1 x K Type Thermocouple Sensor
- 1 x AD597 Module
Note: Other items in the pictures are not included.
