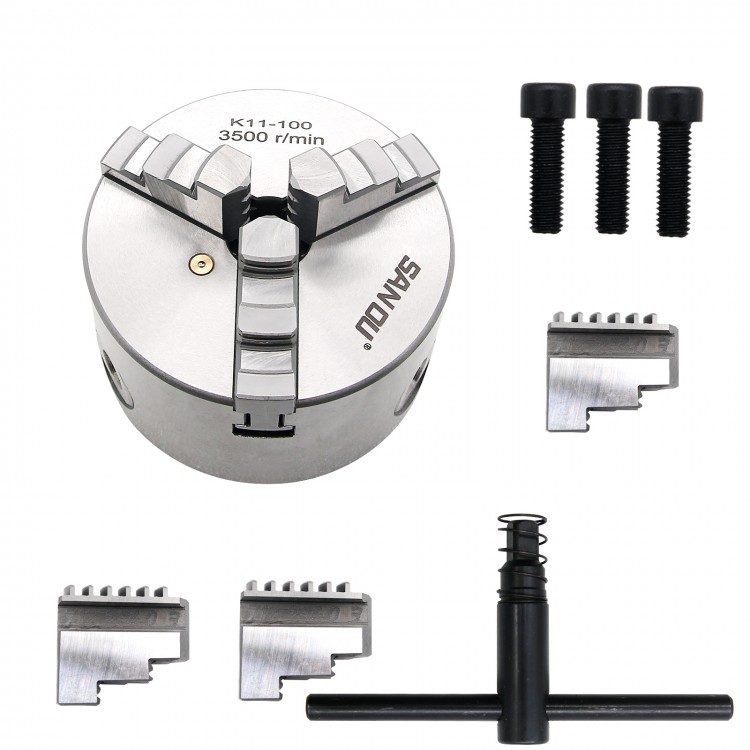

K11-100 Metal Lathe Chuck 3 Jaw 100mm Self Centering & Reversible Jaw
Features:
1. Short cylindrical center mounting
2. Model K11 chucks are provided with one piece jaws(which include a set of internal jaws and a set of external ones ).
3. The jaws for K11A, K11C,K11D and K11E chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment
4. The jaws for K11A and K11D,K11E chucks conform to is 03442 standard.
5 .Model K11 chucks are supplied with traditional two-piece jaws.
Applicable machine tools and accessories:
General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc.
Specifications:
Material: Hardened Steel
Model: K11-100
Max RPM: 3500 r/min
Jaw: 3 Jaw
High precision: ≤0.05mm
Application: for CNC Drilling Milling Machine
Color: Silver
Lathe Chuck:
Diameter: 100mm (3.937")
Thickness: 55mm (2.165")
Center Hole: 22mm (0.866")
Bolt Circle Diameter: 84mm (3.307")
Runout: 0.07mm (0.003")
Internal Jaw:
Clamping Range A-A1: 2- 30mm (0.079- 1.181")
Jamming Range B-B1: 30- 90mm (1.181- 3.543")
External Jaw
Clamping Range C-C1: 30- 80mm (1.181- 3.150")
Packaged included:
1 x Self-Centering Jaw
3 x Inside jaws
3 x Outside jaws large
1 x Safety chuck key
3 x Mounting bolts
