Features:
1. Short cylindrical center mounting
2. Model K11 chucks are provided with one-piece jaws(which include a set of internal jaws and a set of external ones ).
3. The jaws for K11A, K11C,K11D and K11E chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment
4. The jaws for K11A and K11D,K11E chucks conform to is 03442 standard.
5 .Model K11 chucks are supplied with traditional two-piece jaws.
Applicable machine tools and accessories:
General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..
Specifications:
- Material:Hardened Steel
- Model: K11-125
- Max RPM: 3800 r/min
- Jaw: 3 Jaw
- High precision: ≤0.05mm
- Application: for CNC Drilling Milling Machine
- Color: Silver

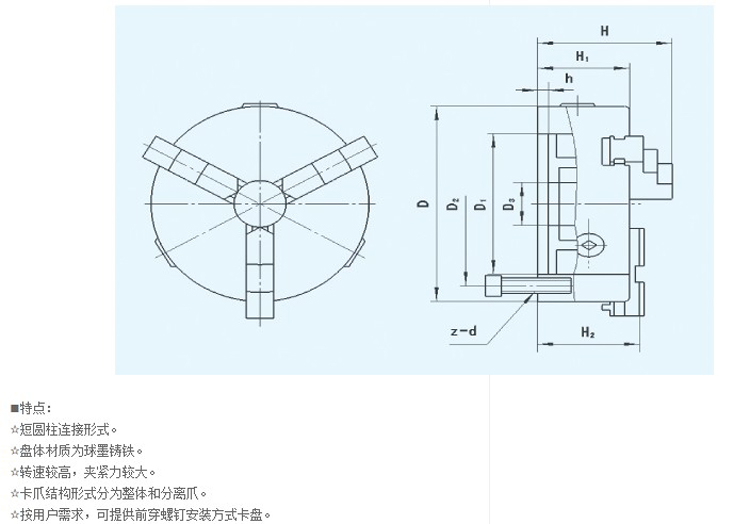

Lathe Chuck:
- Diameter: 125mm(4.921")
- Thickness: 58mm(2.283")
- Center Hole: 30mm(1.181")
- Bolt Circle Diameter: 108mm(4.252")
- Runout: 0.07mm(0.003")

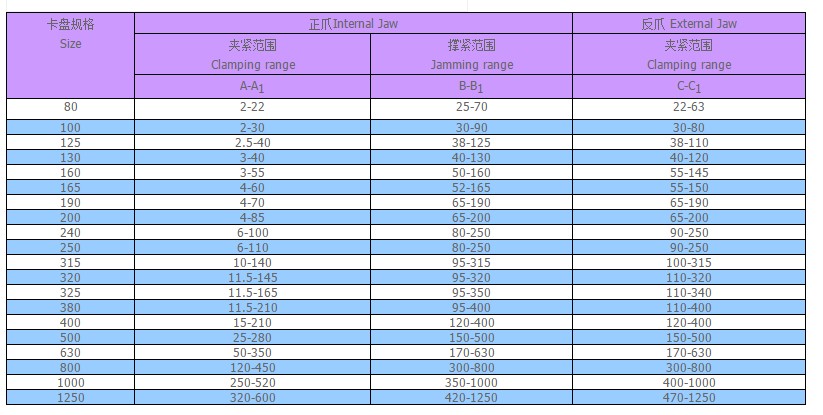

Internal Jaw:
- Clamping Range A-A1: 2.5- 40mm(0.098- 1.575")
- Jamming Range B-B1: 38- 125mm(1.496- 4.921")
- External Jaw
- Clamping Range C-C1: 38-110mm(1.496- 4.331")

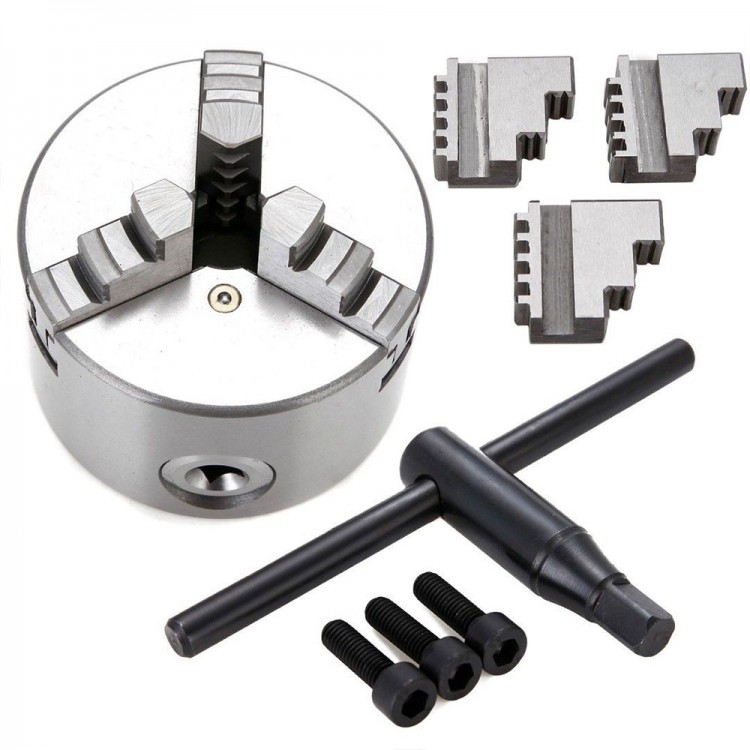

Packaged included:
- 1 x Self-Centering Jaw
- 3 x Inside jaws
- 3 x Outside jawslarge
- 1 x Safety chuck key
- 3 x Mounting bolts
