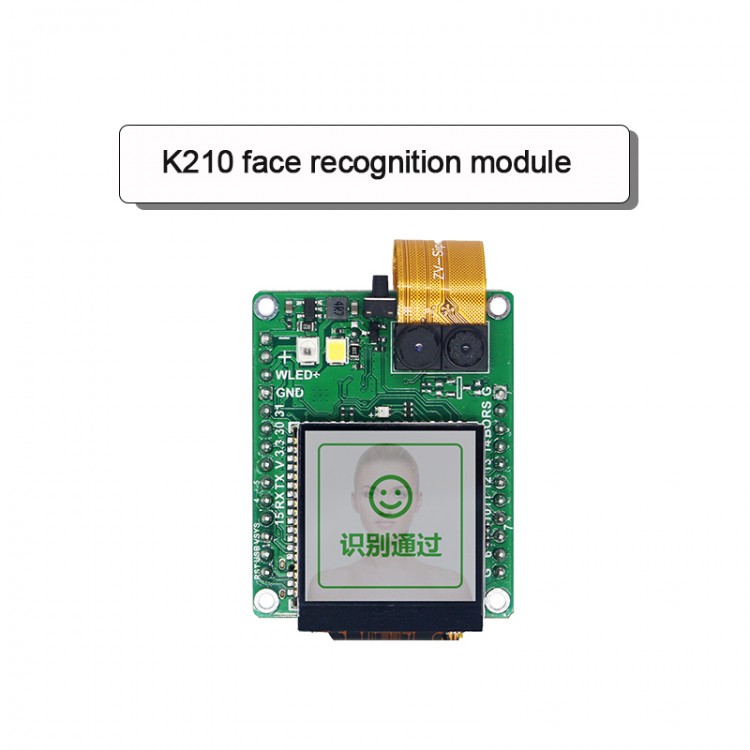

K210 Offline Face Recognition Module Serial Communication Firmware Development Board Standard Version

K210 Offline Face Recognition Module Serial Communication Firmware Development Board Standard Version

Description:

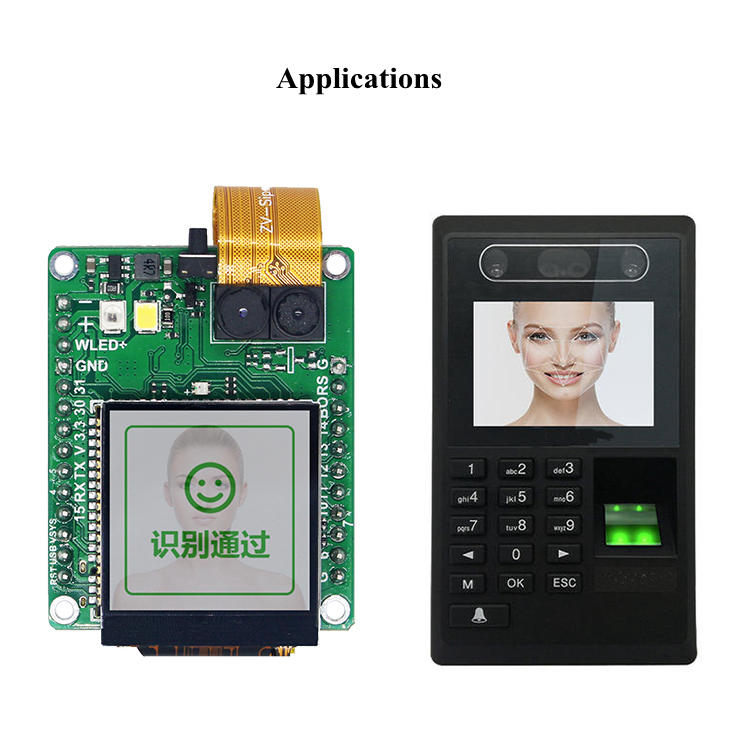

As a facial recognition module, it is a face recognition access control product developed based on K210 platform. There is a pair of cameras, infrared fill light (to assist camera recognition in dim environments), setting buttons, TFT display, etc. Users can use this module to easily realize face recognition access control video. At the same time, a serial port debugging interface is reserved to facilitate user development and rapid product prototyping.

Features:
- Core living body face recognition module. Use dual spectrum cameras to recognize faces and determine whether they are alive
- Protect against screen/picture/video attacks, color/black and white/laser/inkjet paper attacks
- Suitable for indoor and semi-outdoor (no direct sunlight) environment. Commonly used in day/night (dark light environment) automatically switch to infrared recognition
- The recognition distance of default lens is 40~80cm, and the lens can be customized to obtain recognition at a longer distance
- The boot time is about 0.3s. The time from power-on to recognition of the first face is about 0.5s
- The number of facial feature values stored is about 1,000pcs. Optional TF card for SDNAND can store 4K face pictures
- Face recognition accuracy rate 98% at 0.001 FA

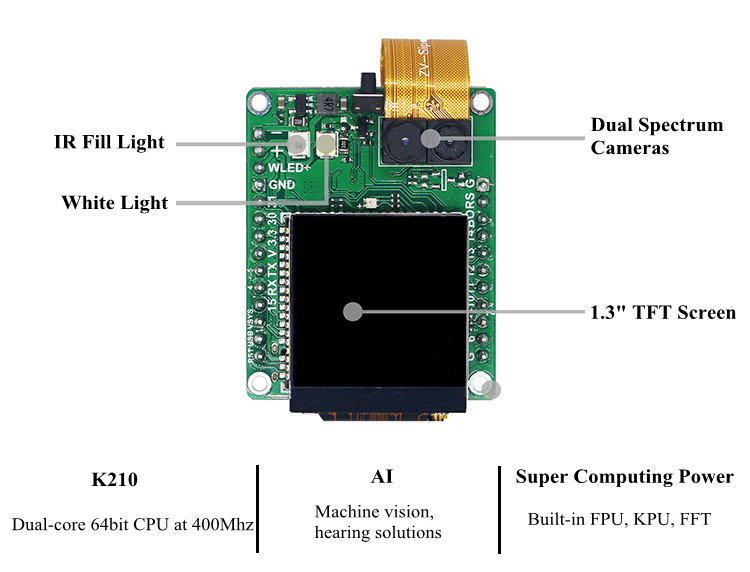

Functional Parameters:
- CPU: For RISV-V dual-core 64bit, built-in FPU, frequency 400Mhz~500Mhz
- Image recognition: living body recognition
- Dual cameras: infrared + visible light
- Infrared fill light: 3W infrared LED
- Display: 1.3 inch TFT, resolution 240*240 display
- Other peripherals: Button/ For SD NAND (optional)/ RGB LED
- Wireless function (optional): support 2.4G 802.11b/9/n, SPI connection

Package Included:
- 1 x Set of Face Recognition Module

Note: Other items pictured are not included, for demonstration purposes only.
