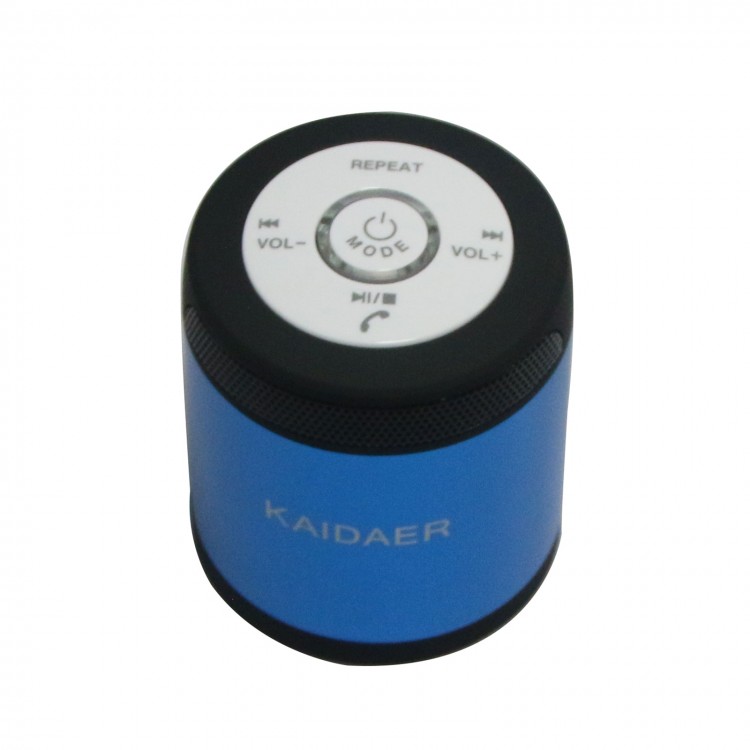

KAIDAER KD05BT Portable Stereo Bluetooth Speaker Hands-free Built-in FM Support TF/U Disk High Quality

KAIDAER KD05BT Portable Stereo Bluetooth Speaker Hands-free Built-in FM Support TF/U Disk High Quality

 Main Features:
- Enjoy your music anytime&anywhere
- Bluetooth connectivity
- Bluetooth hands-free calls

Model: BDL-KD05BT
- It’s modem fashion design, mini bluetooth with unique appearance, speakerphone hands-free digital audio.
- New miniature, aluminum diaphragm speaker, clear treble, bass, pure, unique design, makes the sound quality more excellent.
- Integration of new concepts walkman digital audio, connect your MP3, MP4, CD, DVD, PSP, U disk, mobile phone, computer, headset and FM radio function.
- Metal shell circular design, button curved design, a vanity of colors, highlights the modem style, so that you own way.
- Lithium battery, computer’s USB, adapter DC-5V and other power supply products, so that you can enjoy anytime, anywhere.

Instruction:
- Battery: built-in lithium battery. Note: to extend battery life and avoid risk. Please uplug the cable after the battery charging was completed.
- DC-5V: DC 5V(0.4-1A) power adapter, USB power available.
- Charge in the power off: the power LED is RED.
- Charge in the power on: play the music while using the power adapter to charge battery, the LED is Pink, to extend battery life, turn off the unit is recommended.
- Play music with TF card or U disk while the blue LED is flashing. Press the pause button to stop play. Then the blue LED is solid. Press the replay button to play voice prompts.
- Line input: audio cable with sound sources to connect the input port of the unit, the unit will automatically change to line in mode.

Bluetooth setup:
- Bluetooth connection: press the power button to turn on the unit, the default is bluetooth state, enable Bluetooth connectivity on  your phone, and pair with the KAIDAER KD05BT, then play the music from your phone.

Pair with computer:
- Make sure the Bluetooth drive of computer has been installed, click Bluetooth Icon from the taskbar, then search the Bluetooth device in the Bluetooth interface, pair with KAIDAER KD05BT, right click that device set to default audio when paired is success and the blue LED is solid, press the hands-free button on the unit when answer the phone and get close enough to MIC hole on the unit. Press that button again when Hang up.
- When the call ended it will automatically play music, usually the Bluetooth connection can reach on more than 10 meters without obstacles. The distance of Bluetooth depends on your transmit signal of Bluetooth device.

Mode:
- Music Mode:
Previous song/Vol-: press the button to change to the previous song, press and hold that button, the volume down.
Next song/Vol+: press the button to change to the next song, press and hold the button, the volume up.

- Mode: Bluetooth/TF card/U disk/FM radio/line in modes
- FM Radio: press and hold the pause/play button to automatically search your desire station. The blue LED is flashing.
- Previous song/Vol-: Press the button to change to the previous station. Press and hold that button, the volume down.

- Next song/Vol+: press the button to change the next station. Press and hold that button, the volume up.
- Headphone mode: turn on unit and using a 3.5mm stereo connects to the headphone socket of unit, to change to headphone mode
- Power Off/On: press and hold the mode button to turn on or off the unit.

Speaker function parameters:
- Output power: RMS 3W THD=10%
- Frequency response: 80-20KHz
- FM frequency range: 87.5-108MHz
- SN: >=90dB
- Speaker: 2inches(external diameter 52mm). 4ohm
- Bluetooth connection distance: up to 10m, with the hands-free
- Power input: USB power adapter cable.

Packing List:
- 1pc KD05BT speaker,
- 1pc USB cable,
- 1pc Audio cable,
- 1pc Manual
