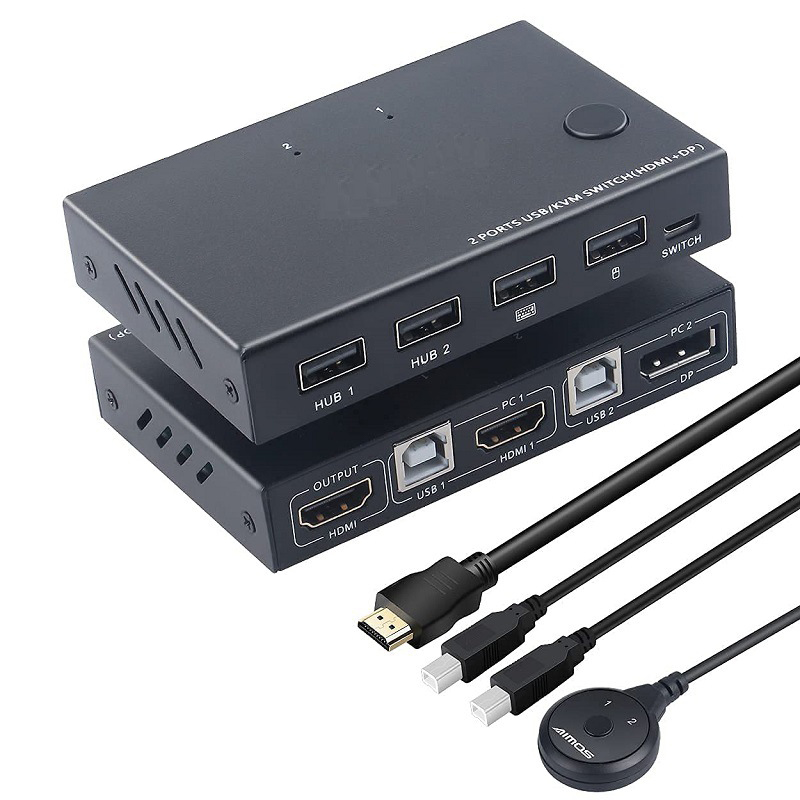

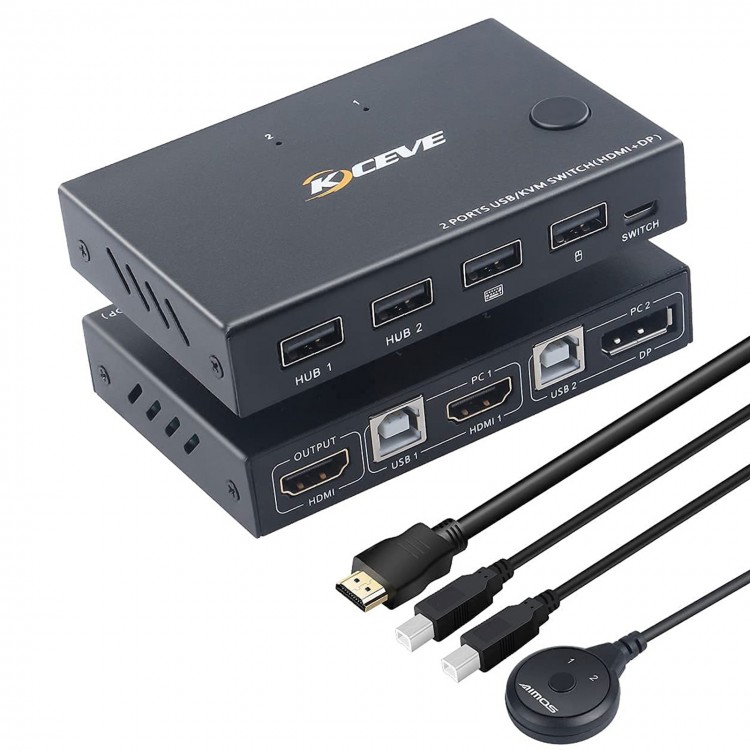

KC-201DP 4K 30HZ 2 Ports USB/KVM Switch (HDMI + DP) Input Displayport KVM Switch HDMI KVM Switch

KC-201DP 4K 30HZ 2 Ports USB/KVM Switch (HDMI + DP) Input Displayport KVM Switch HDMI KVM Switch

Description:
2 ports USB/KVM switch; 2 groups of high-definition video source (DP and HDMI) and USB interface realize freely switch. Adaptive EDID/HDCP.

The equipment has excellent image processing and transmission capacity, therefore its output signal is more smoother and stable. It is a reliable, high-performance and efficient HDMI USB switch. Suitable for office, computer room, monitoring host, etc.

Features:
- 2 ways of high-definition video source and USB interface implementation freely switch
- Support video resolution up to 3840*2160 at 30Hz
- Compatible to HDMI 1.4b specification
- Adaptive EDID/HDCP decryption, able to adapt to a variety of complex application environment
- Compatible to DisplayPort Dual-Mode Standard version 1.1
- Support DisplayPort to HDMI video converter
- Switched by button, which is convenient and quick
- Support USB device such as HUB, U-disk, printer, etc.
- HDCP 1.4 standard - high-bandwidth digital content protection technology
- High compatibility: can automatically match source and display device
- Built-in automatic adjustment system, make the image smooth, clear and stable
- Simple to install, plug and play

Specifications:
Video:
- Standards: HDMI 1.4; HDCP 1.4
- Maximum pixel clock: 340MHz
- Maximum data rate: 10.2Gbps
- Resolution range: Up to 4Kx2K at 30Hz, 1920*1080 at 60Hz
- Connector: HDMI-A Interface; DisplayPort Interface
- HDMI Cable Range: <5M ( Resolution: 1920*1080 at 60Hz)

USB:
- Interface protocols: USB2.0
- PC input interface type: USB-B
- Output interface type: USB-A

Others:
- Power supply: USB Power
- Power dissipation: MAX 2W
- Temperature Operating: -5℃ to +70℃
- Humidity Operating: 5% ~ 90%

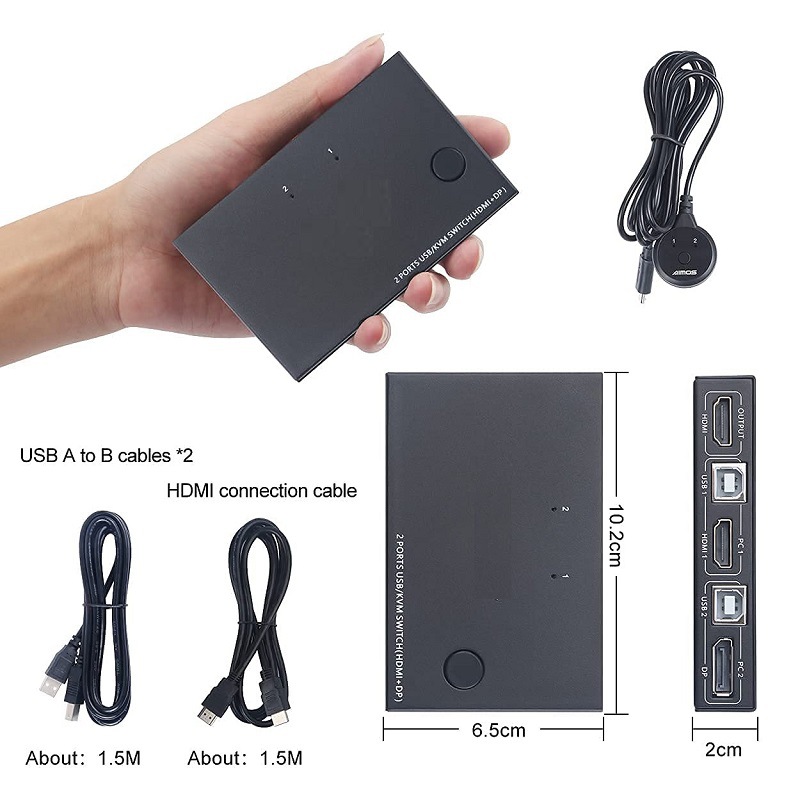

Package Included:
- 1 x KVM switch
- 2 x USB A to B cables
- 1 x HDMI connection cable
- 1 x External switch button
