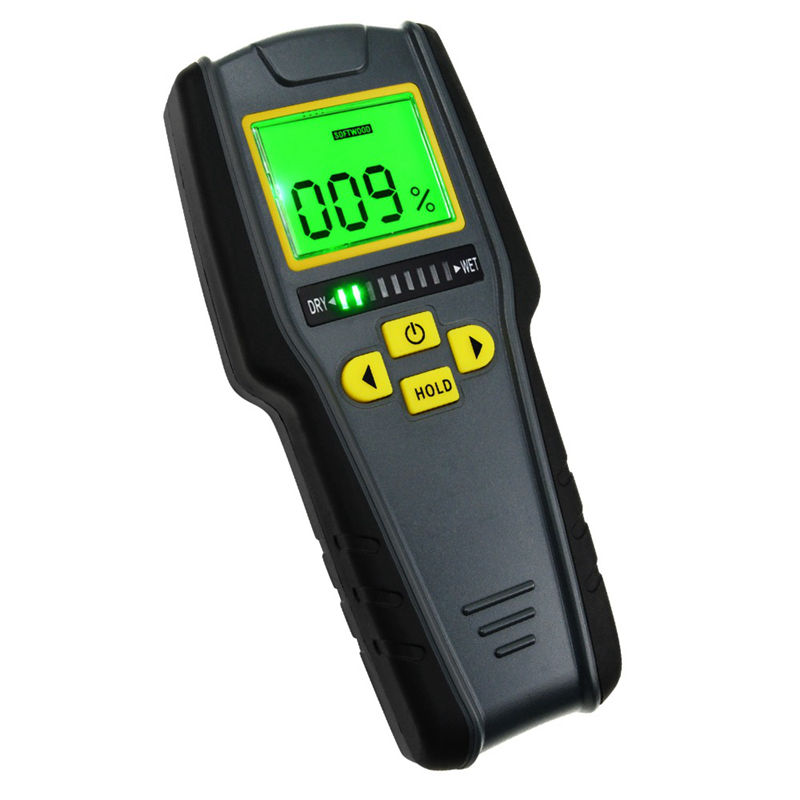

KC-318 4-In-1 Inductive Moisture Meter Pinless Moisture Meter For Drywall Masonry Softwood Hardwood

KC-318 4-In-1 Inductive Moisture Meter Pinless Moisture Meter For Drywall Masonry Softwood Hardwood

Description:
Ideal for measuring moisture content without damaging the material that is being tested. It emits and picks up electromagnetic signals through the material to be tested. It measures target object with at least 20mm depth (If not, simply stack a few same objects together to reach the minimum depth). The reading displayed is an average value of the moisture content from the entire surface area and the maximum depth of penetration. It calibrates automatically, therefore manual calibration is no longer necessary.

Ideal for wood & timber industry, craftsmen, building material storage, ceiling leakage detection, woodworkers, contractors, building inspectors, etc.

Features:
- Intelligent non-invasive & non-marring design measures moisture without damaging the surface
- Detect moisture of 4 different types of materials (drywall, masonry, softwood, hardwood)
- Audio alarm if reading is out of range
- Moisture display on LCD and LED bars indicator
- Tricolor LED bar graph indicator lights to indicate dry, normal and wet moisture level
- Automatic calibration

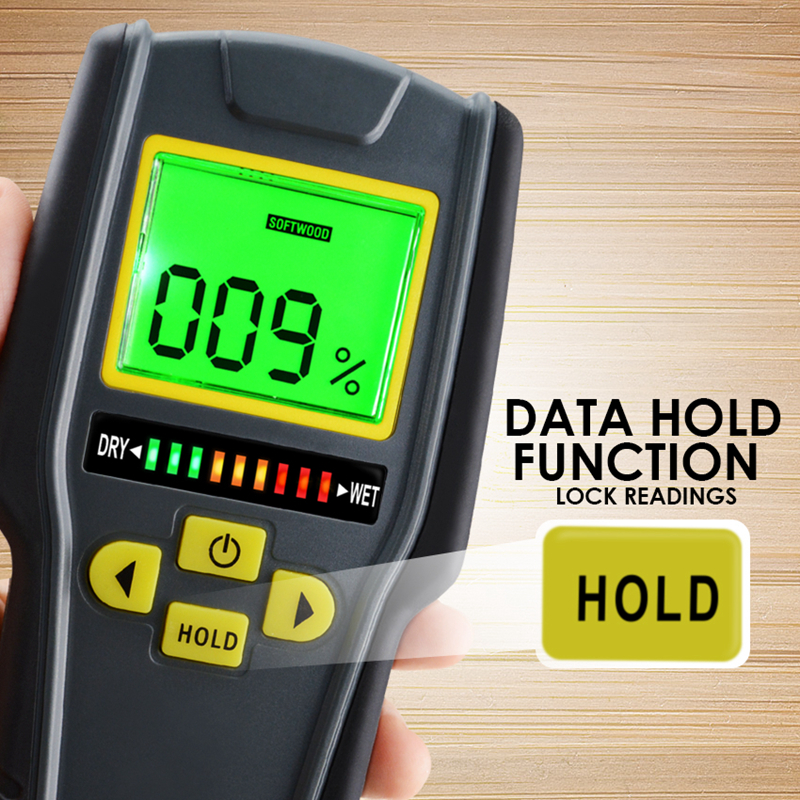

- Data hold function: Lock readings

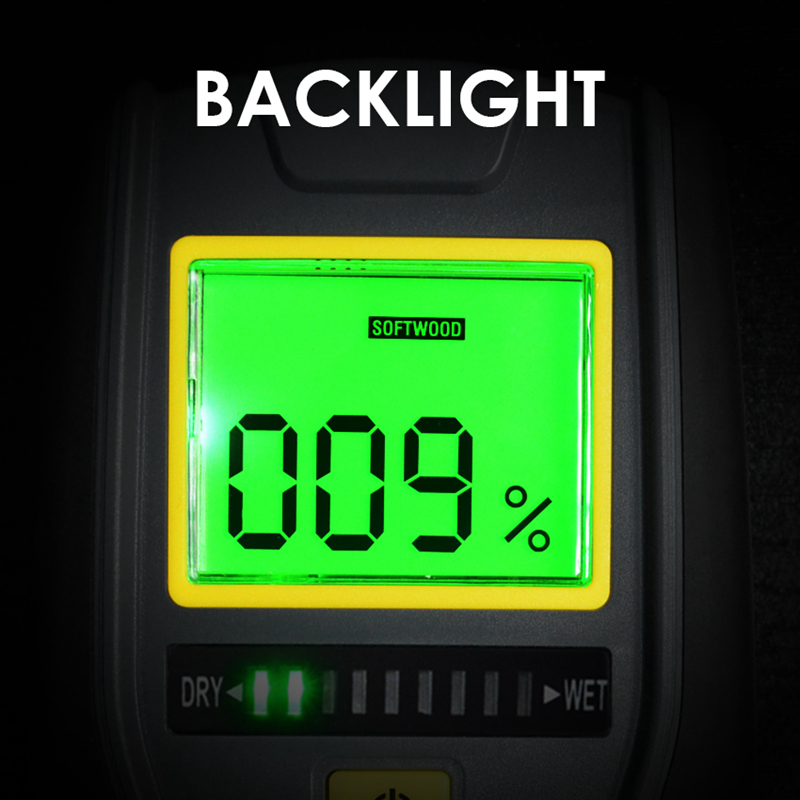

- Green backlight
- Low electricity quantity indicator
- Automatically power off

Functions:
1. LCD display humidity
2. Readings can be locked
3. Automatic calibration
4. Low voltage display prompt
5. Detect 4 different materials (drywall, building materials, softwood, hardwood)
6. An alarm will sound if the reading exceeds the humidity range
7. LED visually indicates the moisture range
8. Without any operation, it will automatically shut down after 2 minutes

Specifications:
- Type : Non-Invasive Inductive Moisture Meter
- Model: KC-318
- Measurement Range : 0%~53% (Softwood); 0%~35% (Hardwood). Moisture readings of drywall and masonry are relative values
- Measurement Precision : ±4% (Softwood, Hardwood)
- Maximum Measuring Depth : 3/4 inch (20mm)
- Automatic power-off : 2 minutes inactive
- Backlight: with
- LED Moisture Content Indicator: with
- Operation Current: <35mA
- Working Temperature : 0 to 40℃
- Working humidity: 0%-70%
- Storage Temperature : -10 to 50℃ (5%~95%RH, without condensation )
- Host Dimension : 170 x 75 x 30mm
- Host Weight: About 152g

Package Included:
- 1 x Set of Moisture Meter

Note:
- It is recommended to use a 9V laminated cell (6F22 or 6LR61) which is not included.

How To Use It?

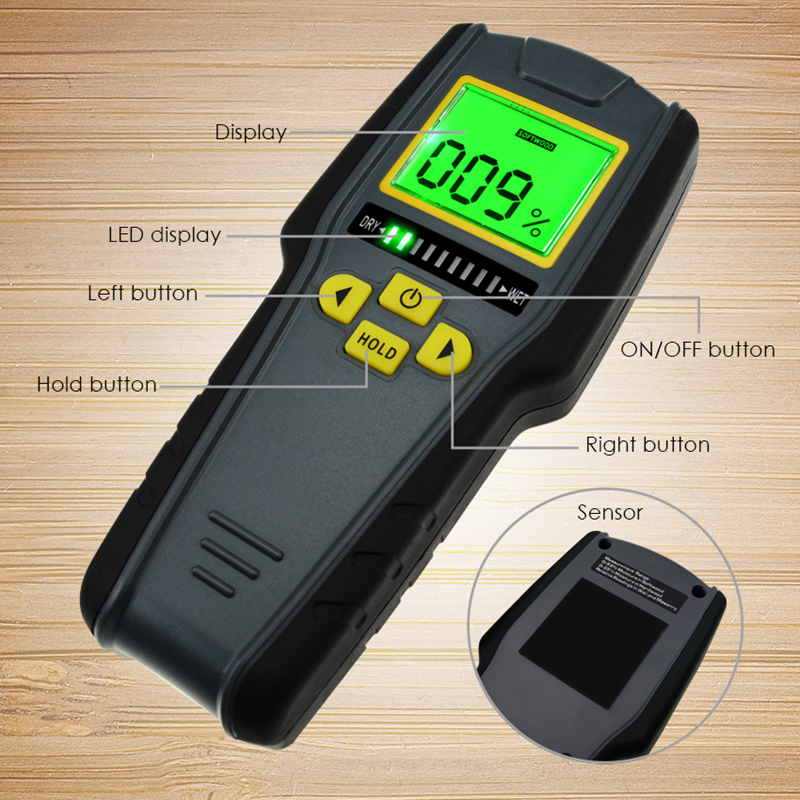

1. Press the power button to turn on, the device enters automatic measurement phase
2. Press the left button or right button to select the measurement mode
3. Put the instrument on the side surface to measure the moisture content of the target
4. When the moisture content of the measured object exceeds the humidity range, the buzzer will alarm (buzzer alarm range: a: dry wall and building materials: greater than 70%, buzzer alarm. b: softwood and hardwood materials: greater than 17%, buzzer alarm)
5. Press the HOLD button to lock the current reading, press the button again to unlock
6. When the display shows the reading, the LED will also indicate the moisture range
7. If there is no operation, the instrument will automatically shut down after two minutes
8. If you want to shut down, you can press and hold the power button for about 2 seconds to turn it off

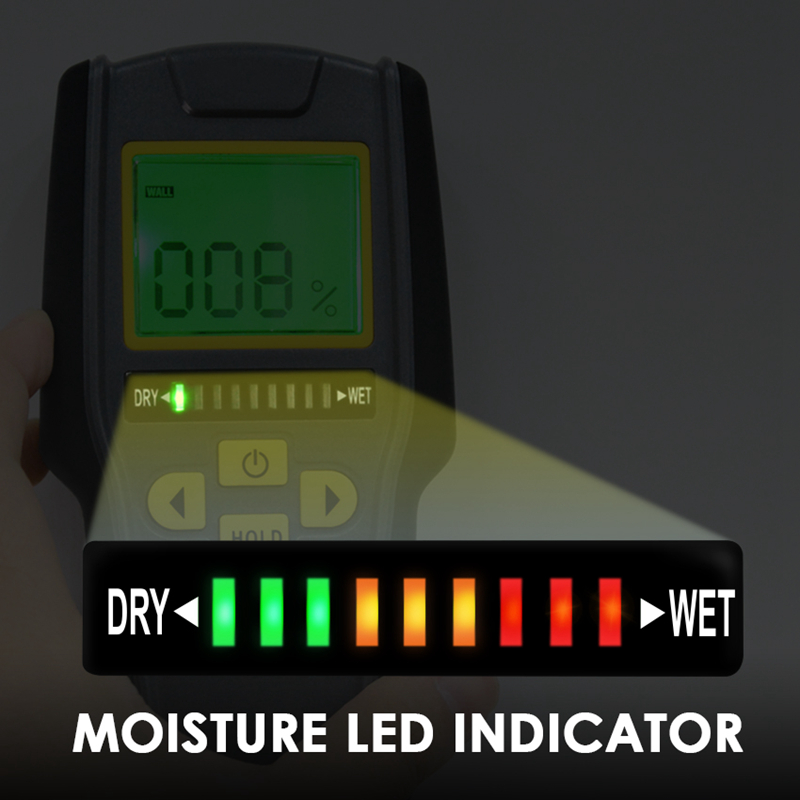

LED Moisture Content Indicator:
A. For Drywall & Building Materials (The displayed reading is a relative value): Green: 0~30%; Yellow: 31~70%; Red: 70%+
B. For Softwood & Hardwood: Green: 5~13%; Yellow: 15~17%; Red: 18%+
