Product Description:

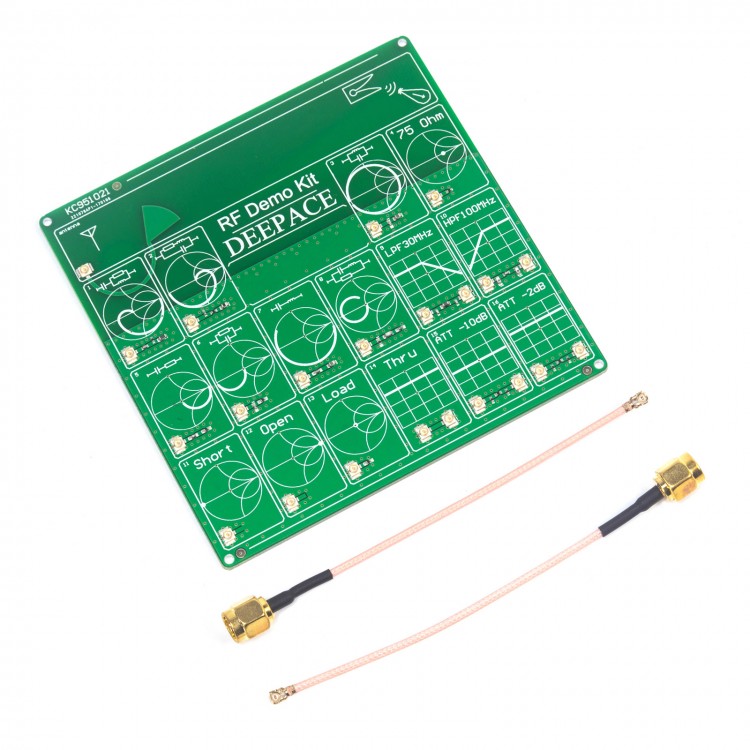

- KC951021 RF Demo Kit is designed for RF network learner.16 kinds RF circuit,11 kinds single port network,5 kinds dual-port network.Built-in directional multi segment antenna,it can receive and transmit signal.
- 1mm electric length UFL joint open circuit,short circuit,load calibrator,good performance,it is for testing network calibration front PCB antenna.
Multi segment antenna frequency range (VSWR<2):
560MHz - 600MHz
1430MHz - 1700MHz
2450MHz - 2670MHz
3200MHz - 3670MHz
4100MHz - 4500MHz
5100MHz - 5970MHz
LOAD calibration kit reflection loss:
Superior to 20dB (<2.5GHz)
Superior to 10dB (2.5GHz-7GHz)

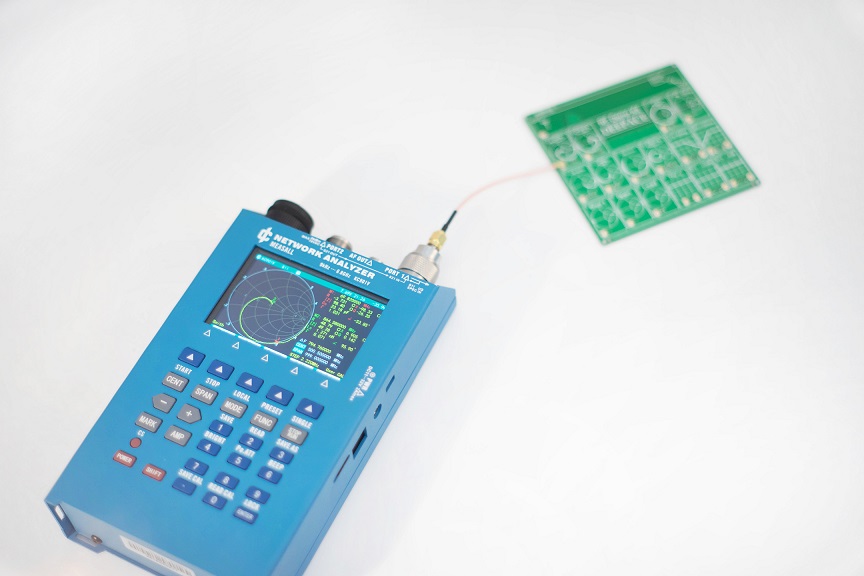

Install:Fix the frequency testing range in the network analyzer.Connect network analyzer to the Demokit calibrator with UFL cable and begin calibrating.You can perform RF network testing experiment afterwards.
Package List:
- 1 x DemoKit PCB
- 2 x UFL Cables
