| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $75.55 | $74.01 | $71.69 | $68.61 | Contact US |
TCB-NA Temperature Control Board Semiconductor Cooling Module Support Single Heating Temperature Control
$66.87
TCB-NA Temperature Control Board Semiconductor Cooling Module Support Single Cooling Temperature Control
$66.87
TCB-NA Temperature Control Board Semiconductor Cooling Module Support Bidirectional Temperature Control
$82.22
Specification:

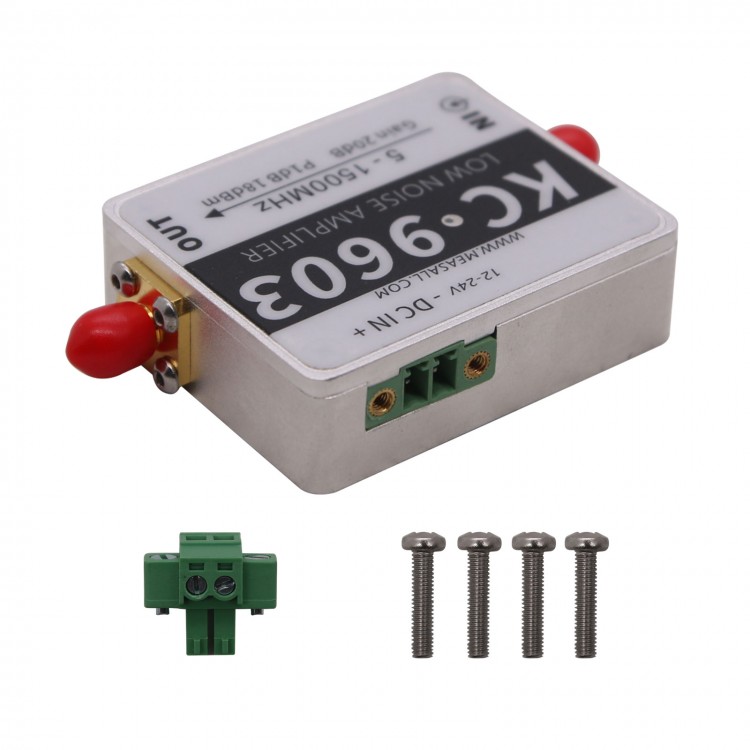

- RF amplifier, this product is suitable for low frequency broadband preamplifier
- Frequency range: 5MHz-1500MHz
(The actual minimum can be used up to 300KHz, the highest can be used to 2GHz, the excess is not guaranteed)
- Typical gain: 20dB (see test chart for details)
- Minimum gain: 15dB
- Output Po1dB: 18dBm
- Typical NF: 2.8dB
- RF interface: standard SMA female head (hole)
- Supply voltage: 12-24V (KC9603 does not support USB power supply, please notice this)
- Power supply interface: power socket
- Temperature range: -40~+60°C
- Accessories: power plug
