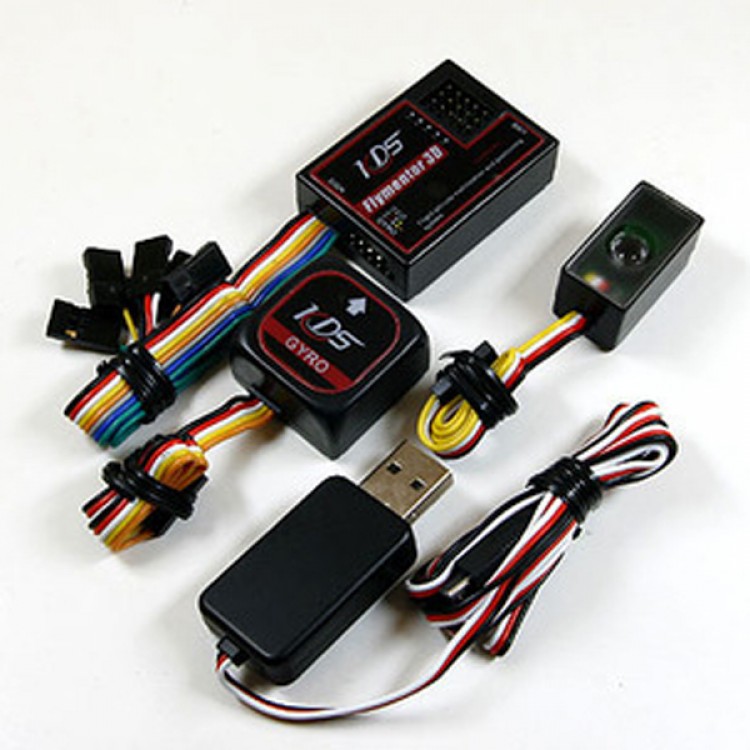

KDS FlyMentor 3D Stabilizer & PPC Hand Held Program Card Combo

KDS FlyMentor 3D Stabilizer & PPC Hand Held Program Card Combo


Flymentor 3D is a stabilization unit that not only stabilizes the rc helicopter against external inputs such as wind turbulence, but will also hold the helicopter in position. The Flymentor uses both gyros and and a CCD imaging device to help stabilize the Helicopter. The gyros stabilize orientation and the CCD holds position with respect to the ground. Let go of the controls and the Flymentor will upright your helicopter (of course within reasonable limits!). This system has multiple applications from stabilizing your aerial photography platform to acting as an electronic insurance policy when you’re learning to fly better.

Features:
The system compensates for both  attitude stabilization normal and in inverted flight as well as positional stabilization. The CCD sensing process provides reliable geographical positioning,  independent of the visible horizon as with IF sensors.  This means nearby tree and objects will not affect the positioning nor will temperature. The built-in CCD sensor images the ground and uses this to hold position and prevent the helicopter from drifting. Gyros compensate for attitude stabilization functions.

You can adjust the working mode of Flymentor by using an AUX Channel. A switchable gain system offers three different modes: Off, Stabilization and Position-holding mode.  It also includes programming for heading lock gyro outside setting and swashplate mixer.  You can control the sensitivity and mode of the tail gyro by a GEAR/AUX Channel. It is compatible with various swashplate configurations including:120-degree swashplate,  140-degree swashplate, or 4-Servo 90-degree swashplate and 4-Servo 90-degree+45-degree swash plate.

This combo includes the new Progam Box which allow you to program the FLyMentor in the fiels without a computer.  THis greatly increases the ease of setup and adjustment. You can also program the Flymentor by computer with a USB cable - no special adapter is required for this. If you use FM/PPM radio equipment, Flymentor will make the aileron, elevator go to level and hold psoition on the tail servo should you loose radio contact as a failsafe. The pitch will remain in the final signal position and Flymentor will switch to position mode automatically.

KDS FlyMentor 3D Stabilizer Specifications:
- Voltage: 4.8V - 6.0V
- Current: 55mA (under 5V)
- Temperature Range: 0℃ - 40℃
- Weight: 37g
- Support helicopters with 3S-120o swashplate, or 3S-140o swashplate, or 4S-90o swashplate, or 4S-90o + 45o swash plate

KDS FlyMentor PPC Hand Held Program Card Specifications:
- Working voltage: 4.8-6.0V
- Working current: 5mA (5V)
- Dimensions (Length x Width x Heigth): 145 x 60 x 15mm
- Cable Length: 400mm
- Net weight: 74g
