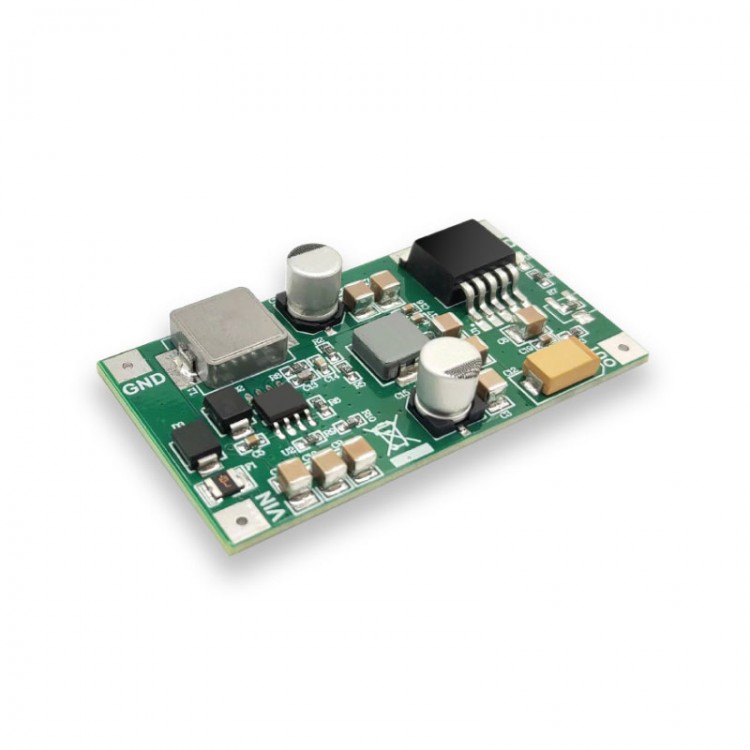

KDT5463-015 Voltage Regulator Module Step Down Buck Converter LT1764A + TPS54360 (Default Output 9V)
Module Parameters:
- Module model: KDT5463-015
- Module function: two-level DCDC step-down power supply (first-level switch + second-level linear)
- Chip matching: LT1764A + TPS54360
- Input voltage: (Vout +4V) to +55V (input is higher than output 4V)
- Load current: LT1764/1.5A (LT1764A)
- Default output voltage: +9V
- Voltage description: The first stage switch is 1V higher than the second stage (reduces the linear voltage difference of the second stage)
- Protection measures: Over-current and over-voltage protection (input side)
- Ripple: better than 12mVpp under no-load (If you have extremely high requirements on ripple, please think twice before purchasing)
- Heat dissipation: greater than 800mA external plus auxiliary heat dissipation
- Installation method: surface mount or pin soldering of pin headers
- Dimensions: 55 x 30 x 10mm/2.2 x 1.2 x 0.4" (LxWxH)
- Weight: 30G/0.1LB
- PCB layer: double layer with windows on the back for heat dissipation
- Attention: Reasonable heat dissipation and correct voltage power supply
Package Included:
- 1 x Module
Note:
- Certain knowledge is highly recommended. Schematic diagram and PCB engineering file are not provided, please note that.
