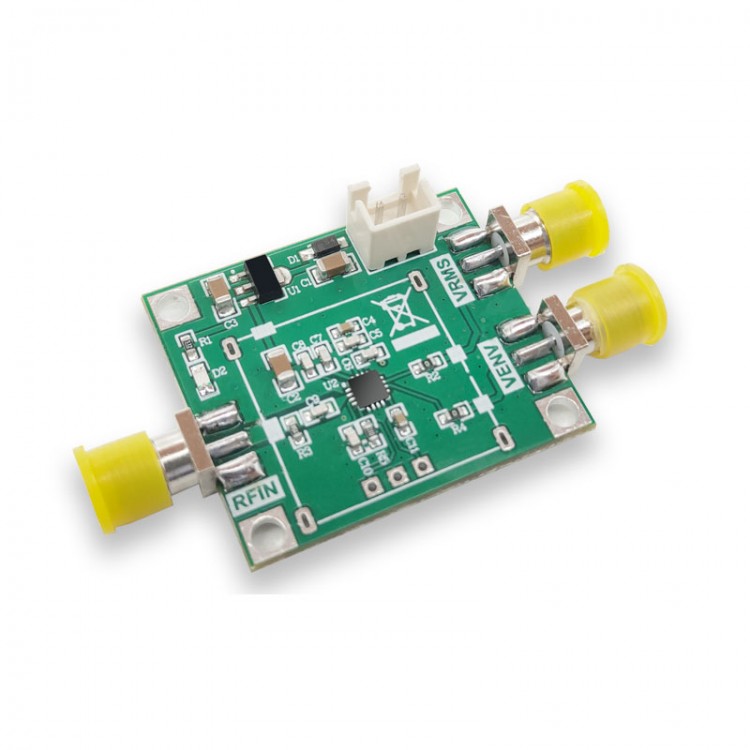

KDT5511-019 ADL5511 6GHz RF Envelope Detector Pulse Detection Measurement Module AM Demodulation

Availability: In stock, usually dispatched in 1 business day

  • Price:$68.34
  • Price in reward points: 683 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.97 $65.61 $63.56 $60.82 Contact US
Quantity:

KDT5511-019 ADL5511 6GHz RF Envelope Detector Pulse Detection Measurement Module AM Demodulation

Attention:

- Because it is an electronic module, certain circuit knowledge is recommended.
- Due to light and monitors, there will be a certain color difference. Thank you for your understanding.
- It is a simple module, schematics and PCB engineering files are not provided.
- Please read the details of this module carefully before use to understand the power supply and basic functions, and to avoid damage to the module due to improper use.

Module Parameters:
- Module name: KDT5511-019 (ADL5511 Chip) V2.0
- Module type: RF envelope and TruPwrRMS detector
- Module bandwidth: LF-6000MHz (input DC blocking and capacitive coupling)
- Module dynamic range: 47dB
- The maximum input RF power of the module: +20dBm
- Output voltage in the dynamic range of the module: RMS: about 0.02V-4.0V (subject to the measured value, for reference only); VENV: about 0.0V-3.0V (subject to the measured value, for reference only) [where VENV represents envelope detection DC output. Due to device characteristics, this pin output has an internal 1.1V bias voltage]
- Power supply: +12V

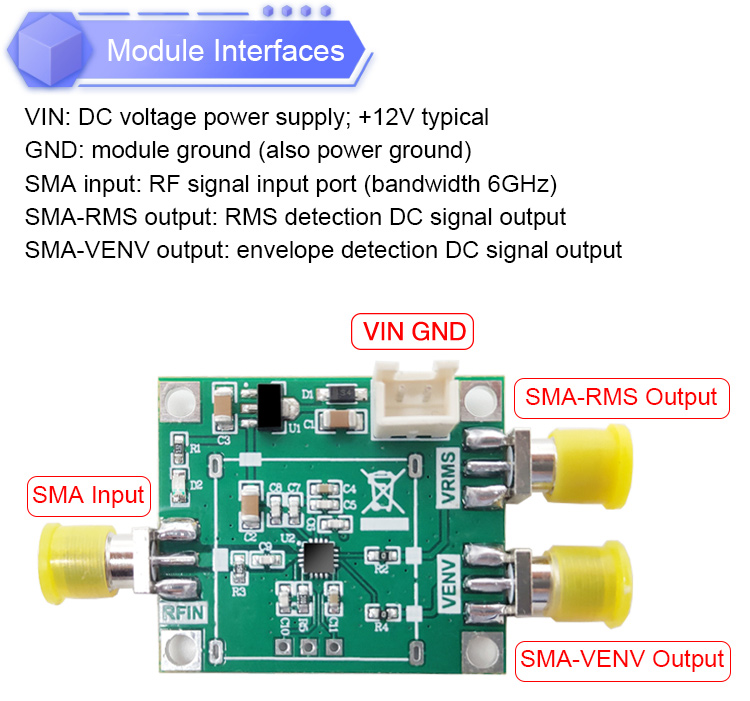

- Module input and output interface: RF SMA female connector

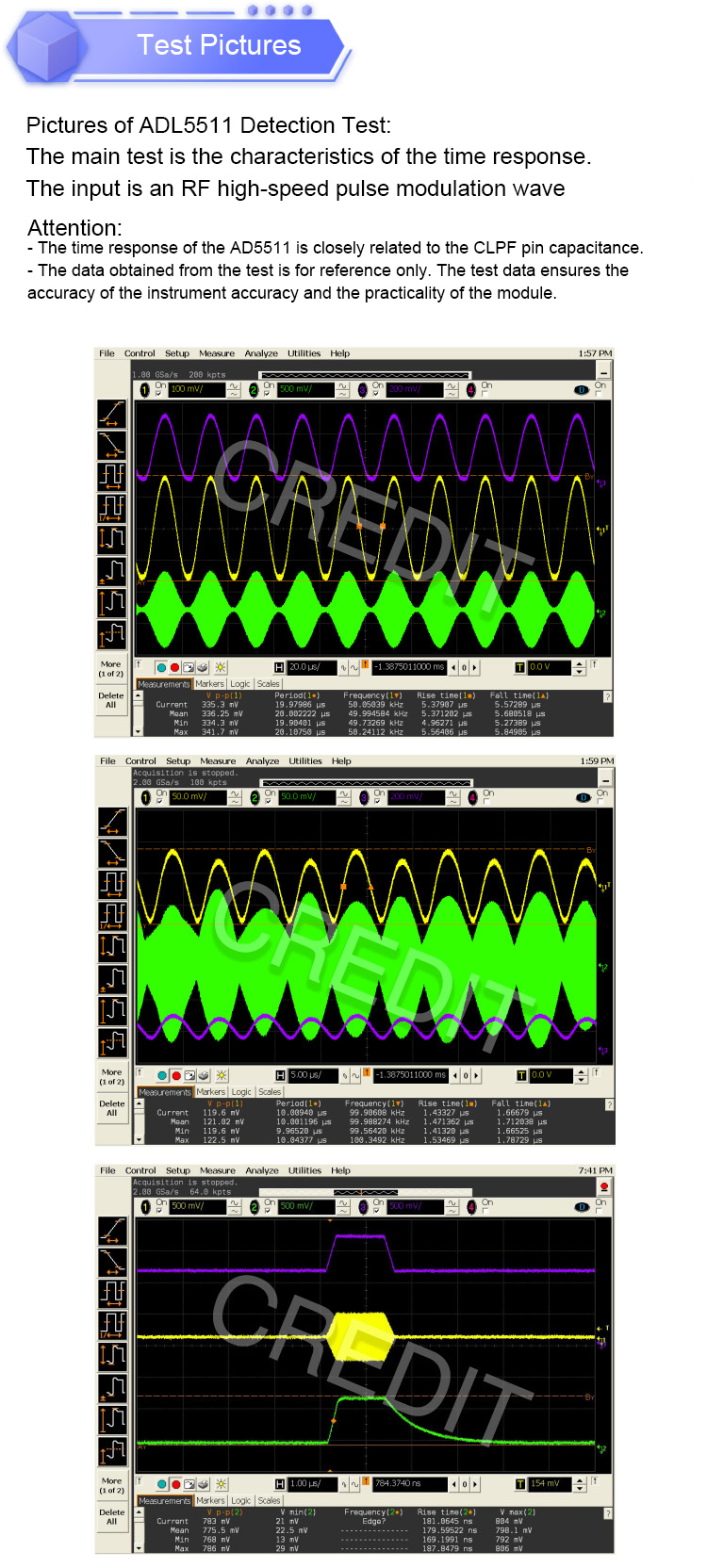

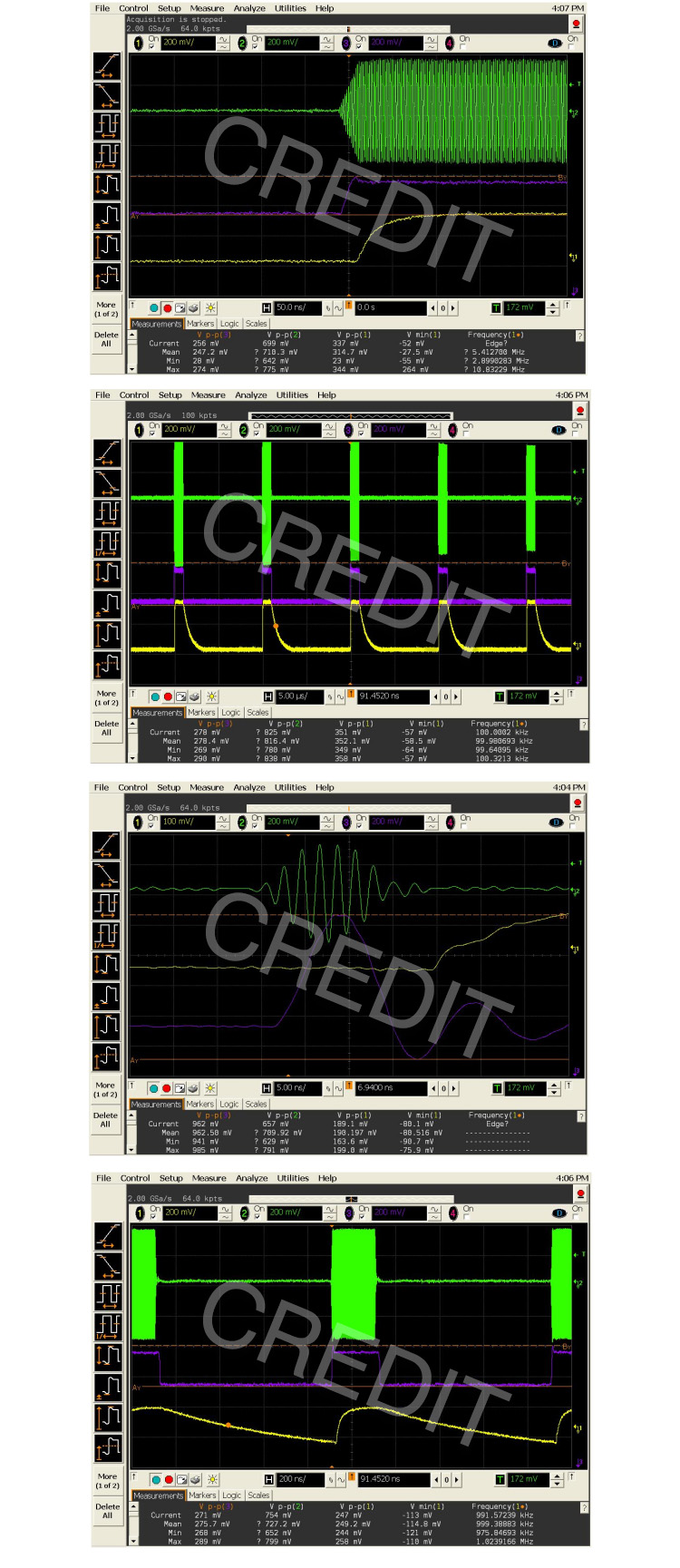

- Module DC output time response: This parameter is mainly for pulse detection, etc. The fast edge change and pulse width are closely related to the capacitance of the chip CLPF pin. The time response of the output can be adjusted by varying the value of this capacitor. By default, all four CLPF pins are soldered with 100pF capacitors. If you need to change the parameters, please solve it yourself
- Module weight: 11.00g/0.02lb

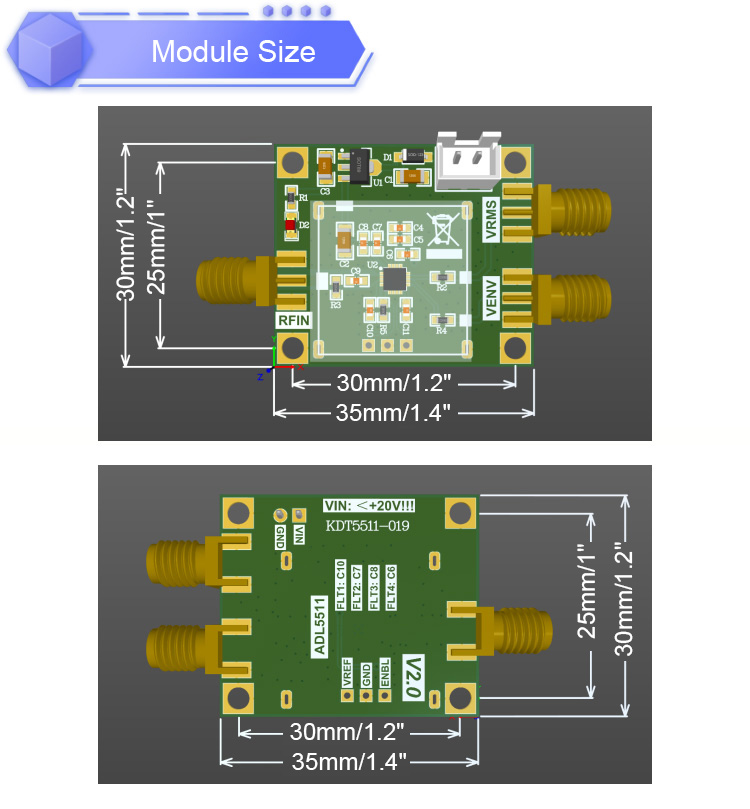

- Module dimensions: 35 x 30 x 5mm/1.4 x 1.2 x 0.2" (LxWxH)
- Module applications: transmitter antenna power measurement, receiver signal strength indication, low-cost radar and sonar signal processing, etc.

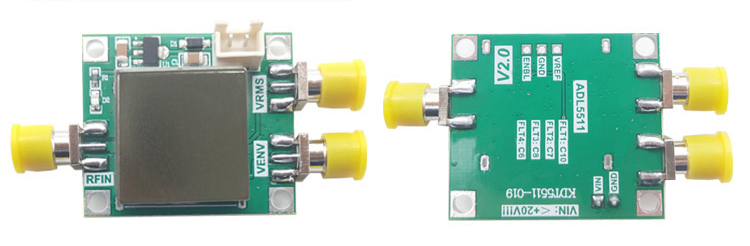

- Other functions of the module: LED power supply indicator and four M3 positioning holes. The module has anti-reverse connection protection of power supply, wide voltage input power supply, SMA signal input and output, enable and VREF pin out, with shielded cover

Precautions:
(1) The maximum input power of the detector module is 20dBm.
(2) The detector module has LF-6000MHz RF input bandwidth.
(3) Dynamic range of detector module: 47dB.
(4) The dynamic range of the detector module will be different under different frequency responses. This is normal and not linear.

Package Included:
- 1 x Module
- 1 x Set of Shielded Cover
- 1 x Cable
