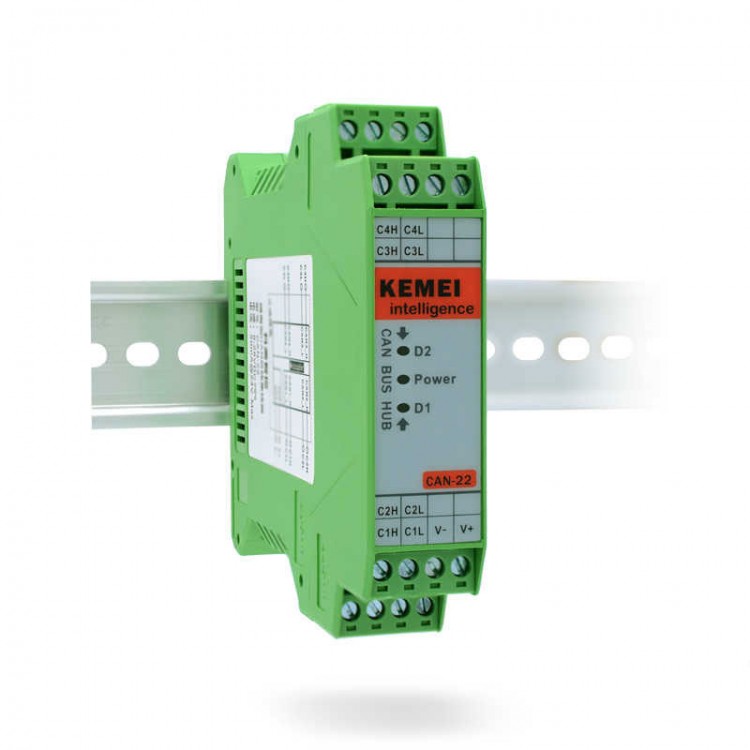

KEMEI Intelligence CAN-22 Isolated CAN Bus Hub 4-Port CAN Hub with 1 Input and 3 Output Interfaces
Description:
CAN-22 CAN bus hub is a cost-effective industrial-grade product. It can be used in industrial automatic control equipment, security systems, intelligent instrumentation and other occasions. The hub provides 1.5KV electrical isolation, introduces a failure isolation mechanism, detects the bus status in real time and automatically isolates the fault bus, and ensures the normal operation of other ports, providing great convenience for the installation and maintenance of engineering and technical personnel. CAN-22 adopts modular design. Thus, it can be combined. It can be mounted to a standard 35mm DIN rail. With removable terminals, small size and light weight, it can save a lot of space and time for on-site installation.
Features:
* The industrial-grade isolated CAN bus hub supports 100Mbps high-speed isolation
* 5K-1Mbps baud rate adaptive and transparent protocol with built-in bus arbitration logic
* Isolation voltage is up to 1.5KV. And the pre-stage, post-stage and power supply are isolated
* 4-port CAN bus hub supports CAN2.0A/B standard
* 9-28VDC wide voltage power supply
* Bus failure isolation function
* 110-node load capacity per port
* All signal ports are equipped with high-quality surge protection
* It can be combined due to modular design and detachable terminal blocks

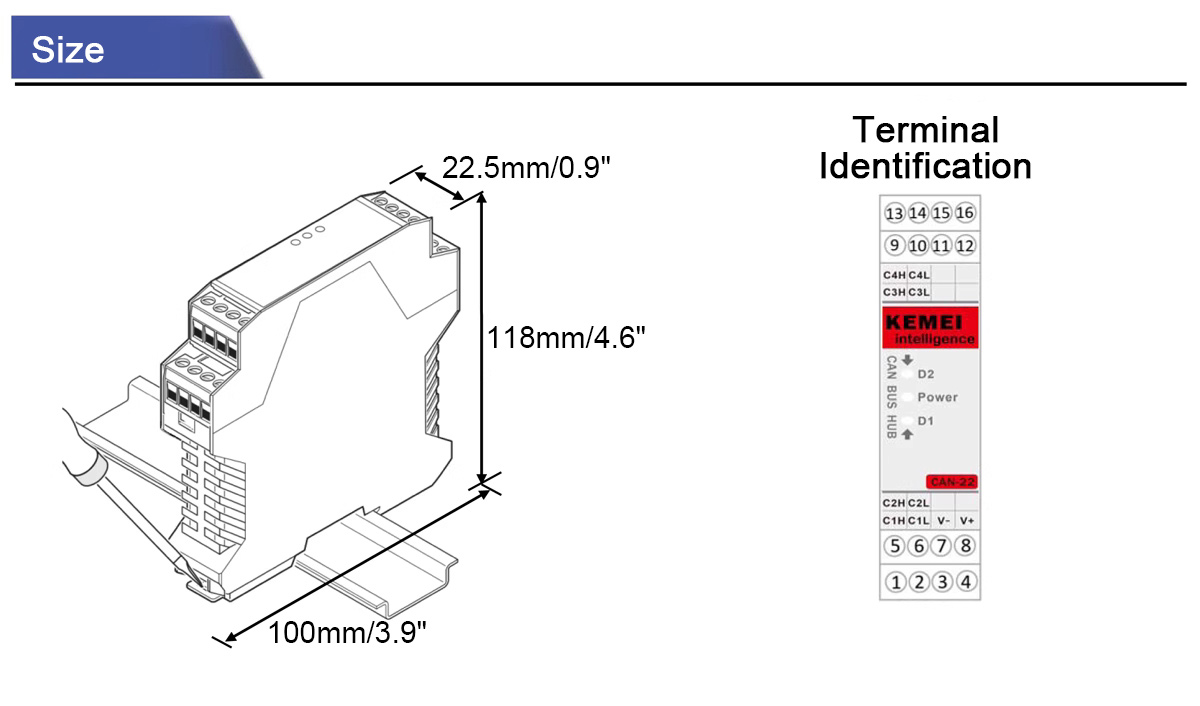

* 22.5mm/0.9" space-saving, slim device can be mounted to a 35mm DIN rail
Applications:
* Signal isolation and interface protection in industrial automation field
* Isolation protection of charging pile bus interface
* Interface protection of security system and intelligent instrument
* Star-shaped CAN bus cabling branch extension
* CAN bus signal interference suppression
Package Included:
* 1 x Hub
* 4 x 4P terminal blocks
Packaging Details:
* Weight: 0.25kg
