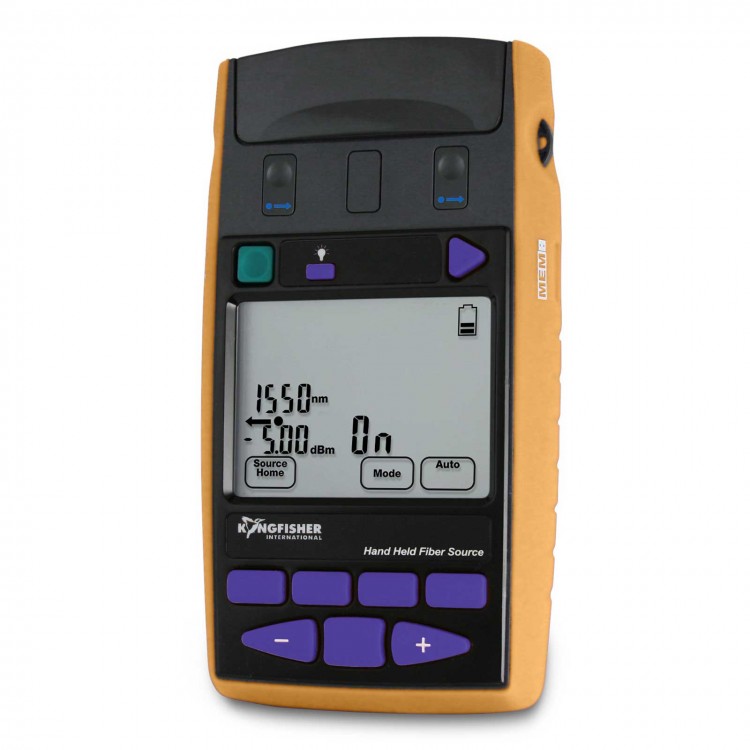

KI 2400/2800 Series Hand Held Fiber Meter Source Optical Light Source

KI 2400/2800 Series Hand Held Fiber Meter Source Optical Light Source

Test Applications:
- Mixed single mode, multimode & POF testing to 6
- Multi-Fiber polarity checking and fiber identification
- Encircled Flux compliant testing
- Tone source for fiber identifier
- Innovative and useful VisiTester feature

Product Description:
- The KI 2400/2800 series:Hand Held Fiber Sources are used with an Optical Power Meter to test loss on single mode, multimode & POF optical fiber systems,at up to 6 wavelengths.
- The 2800 series provide excellent stability,and the 2400 series provide exceptional stability with zero warm up.
- High productivity,high availability and ease of use combine to achieve superior measurement confidence.

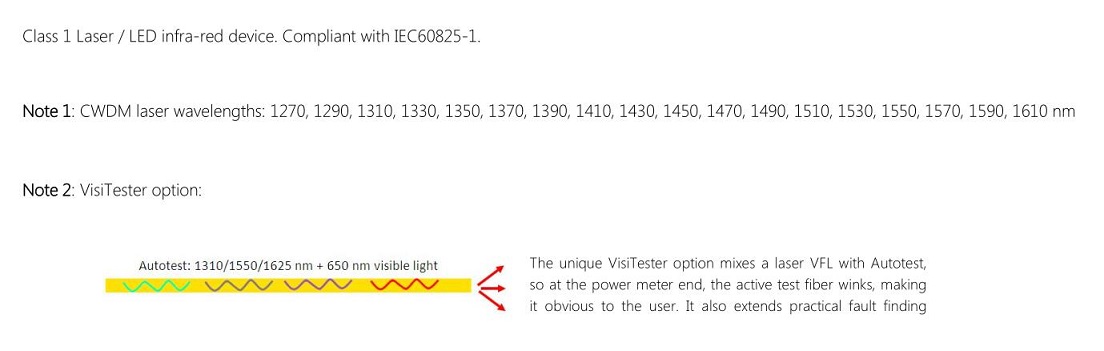

- The innovative and unique VisiTester option is helpful for general loss testing,continuity testing & fault finding.
- These Autotest sources can be used with any Kingfisher Autotest optical power meter,loss test set or two way tester.

Features:
- Reliable,rugged & versatile
- Simple to use
- Ideal for mixed MMF & SMF testing
- Up to 6 mixed LED,Laser & VFL sources
- Excellent optical power stability

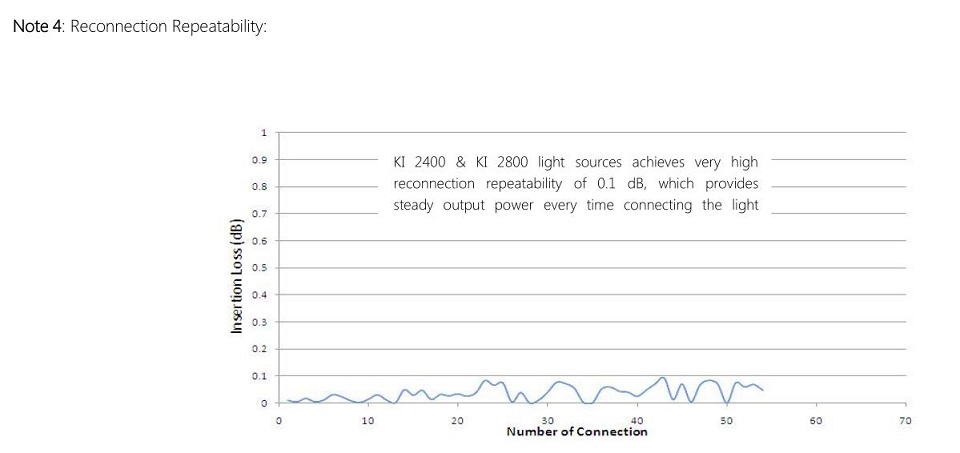

- Excellent re-connection repeatability
- LCD is large,clear,sunlight readable & backlit
- Autotest compatibility with other instruments
- Optical test tone with Multi-Fiber ID function
- VisiTester easily identifies active test channel
- Interchangeable connectors with dust cap/tilt bail
- Encircled Flux compliant multimode LED sources
- Multimode sources supplied with mandrel wraps

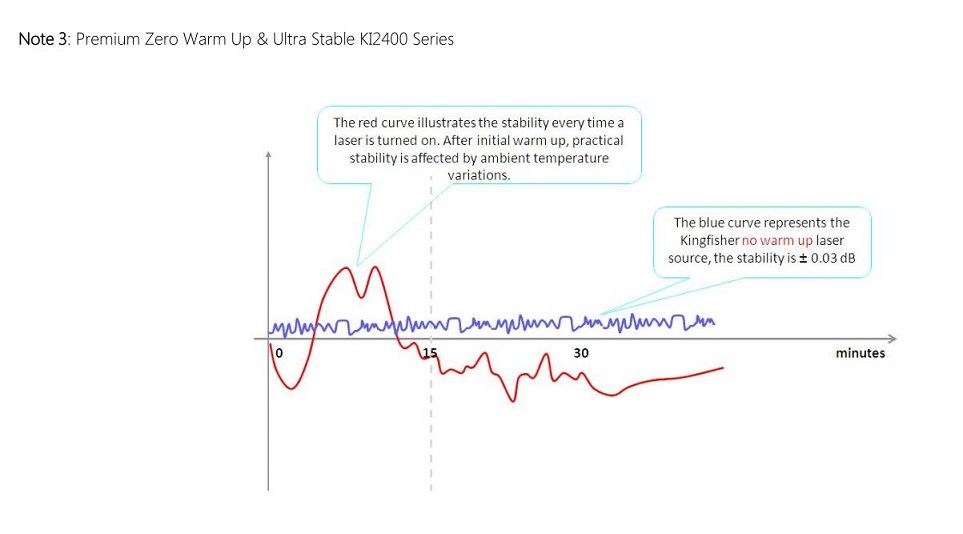

- KI 2400 series is ultra-stable with zero warm up
- Long battery life
- External power/charging via USB
- 3 ~ 7 Year warranty
- 3 year calibration cycle

General Specification:
- Battery life:Laser/LED source: 90/80 hours in Autotest,typical
- Size:190 x 105 x 35 mm (7.5 x 4.1 x 1.4")
- Weight:420 gm (0.9 lb.).Shipping 1.5 Kg (3.3 lb.)
- LCD size:74 x 55 mm/2.9 x 2.2"
- Case:Polycarbonate/rubber edges & corners,moisture resistance,1-meter drop tested
- Dust cap:Captive, functions as tilt bail when slid open
- Operating/Storage:-15 to 55 °C/-25 to 70 °C
- Relative humidity:0 ~ 95 %
- Calibration cycle:3 years
- Power:2 Alkaline AA cells or 2 x NiMH AA cells,user selectable charging;Ext power input via micro USB;Selectable auto-off,low battery indicator,backlit display

Note:This instrument is supplied with metal-free sleeve interchangeable optical connector adaptors.The ferrule type is fixed and customer specified as either PC or APC.Green is associated with APC.You can order any number of connector adaptors.

Package List:
- 1 x SC connector adaptor (OPT046)
- 1 x Operation manual
- 1 x QA certificate
- 1 x Calibration certificates
- 1 x Carry Pouch
- 1 x Carry strap
- 1 x 50 & 62.5 µm fiber mandrel wrap set for Multimode sources (OPT701)
- 1 x USB-A to USB-micro type cable
