KI 2600 SeriesHand Held Fiber Meter
- Optical Communications
- Test Applications
- System power testing
- Attenuation testing
- Fiber identification
- Fault Finding & Continuity Testing

Product Description:
- A fully-featured Hand Held Optical Power Meter used for testing fiber optic communications systems.
- Superior measurement confidence is achieved through a combination of excellent basic accuracy,intuitive use and rugged reliability.
- Options cover power levels from +33 to -70 dBm,all useful wavelengths,many connector styles including duplex/ ribbon,and large core POF fiber.

Features:
- Reliable,rugged & versatile
- Simple to use
- Very long battery life

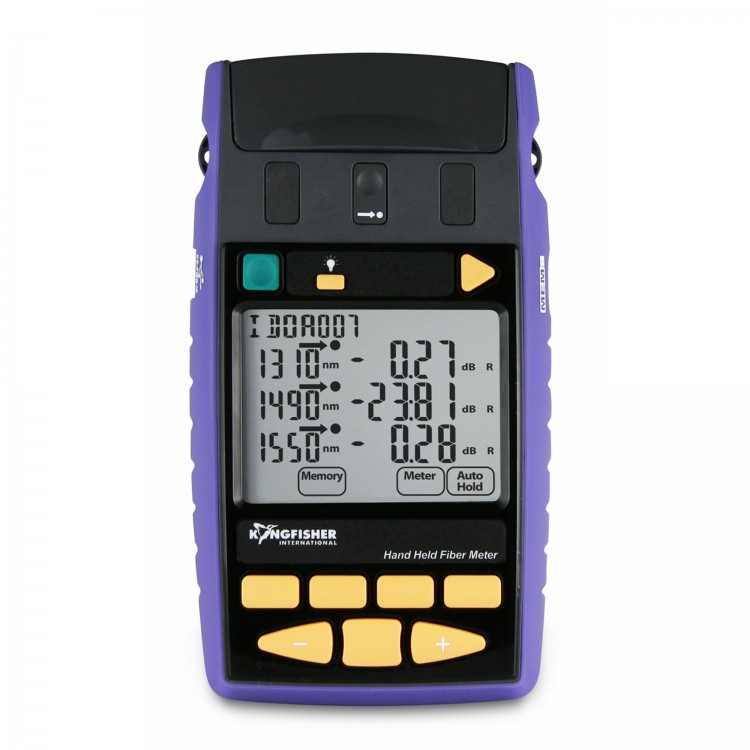

- LCD is large,clear,sunlight readable & backlit
- Interchangeable connectors with dust cap/tilt bail
- 28 genuine 1% calibration wavelengths
- External power/charger via micro USB port
- Memory with text,timestamp and USB dump
- Simultaneous 3λloss display with Autotest source
- Flexible real-time PC reporting software
- Multi-Fiber ID tone for fiber identification
- Optional visual fault finder
- Power averaging mode for modulated signal
- Max/Min recording
- 3 years calibration cycle
- External power/charging via USB

Details:

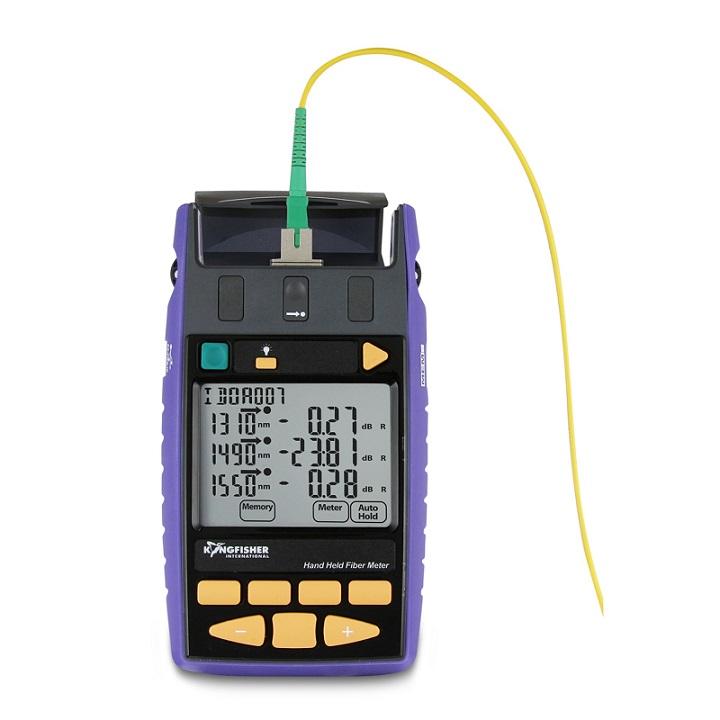

- The KI 2600 Hand Held Fiber Meter measures absolute or relative light levels and test tones in fiber optic systems.

- Autotest provides fast,easy and automatic multi λ(wavelength)loss testing up to 6 λ,with up to 3 λ displayed simultaneously,along with the respective source nominal power levels.Any Kingfisher Autotest light source/LTS with matching λ can be used.

- The meter displays mW,µW,nW,dB,dBm to 0.01 dB resolution, with no range changing delays.A separate reference for each λ is stored and displayed.Superior high power performance is achieved.
Unique in the industry,the tight Total Uncertainty specification covers all power levels,temperatures, connectors and fibers,without warm up or user dark current offset.

- Interchangeable connectors are dust and drop protected. SC adaptors are supplied,with others available including small form factor LC styles.Metal free adaptors avoid contamination of connectors in high power systems.

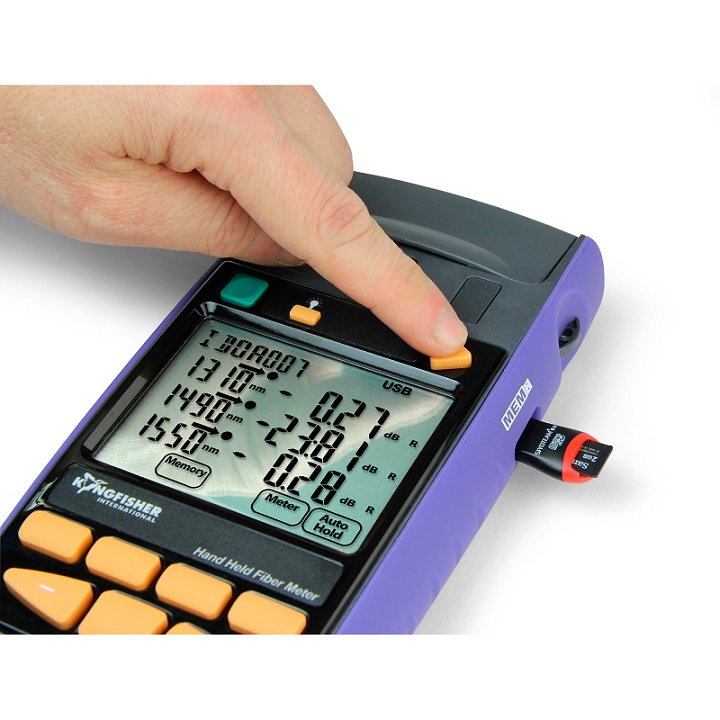

- Loss test results can be stored in the large memory,along with a user-input cable name and timestamp. Results can be copied onto a USB memory key with one button push. Alternatively, live readings can be put directly onto a customer report computer using KITS™ customizable Excel-based reporting software. Reports can be easily customized for any terminology,language or format.KITS™ also provides a one-button file dump to a PC with Windows OS.

- When used with Multi-Fiber ID sources,the Multi-Fiber ID tone feature uniquely identifies up to 12 fibers, in addition to common test tones.
The VFL (Visible Fault Locator) option offers simple fault finding and continuity testing.
Flexible power options include a choice of batteries,with a jumper selectable battery charger.External power is via USB.

-  See alternative brochure for instrument versions with large area detectors up to +33 dBm. For use with e.g. ribbon fiber, MPO/MT/MTP and MTRJ,large core fiber such as POF,fiber bundles,high power pump lasers, other general optical applications etc.



VFL Parameters:
- Output power:+2 ± 1 dBm
- Wavelength:650 nm
- Width:3 nm
- Modulation:CW,2,270,1k,2k Hz

The visible laser is a Class 1 Laser product compliant with IEC60825-1 and 21CFR1040.10.

General Specification:
- Battery life:Up to 1000 hours laser & backlit off / 200 hours laser in blink mode
- Size/Weight:190 x 105 x 35 mm (7.5 x 4.1 x 1.4" / 420 gm (0.9 lb.).Shipping 1.5 Kg (3.3 lb.)
- LCD size:74 x 55 mm / 2.9 x 2.2"
- Operating/Storage:-15 to 55 °C / -25 to 70 °C
- Relative humidity:0 ~ 95 %
- Case:Polycarbonate/rubber edges & corners, moisture resistance,1-meter drop tested
- Dust cap:Captive, functions as tilt bail when slid open
- Tone detection:150 ~ 9900 Hz ± 1 %
- Max/min:Recording feature for stability testing
- Power:2 x Alkaline/Lithium AA cells or 2 x NiMH AA cells,user selectable charging;Ext power input via micro
USB;Selectable auto-off, low battery indicator,backlit display
- Memory:1000 4-λ tests with date & time in internal memory, unlimited on USB memory key
- USB interfaces:USB-micro type connector for general USB & power; USB-A type connector for memory key only
- Calibration cycle:3 years

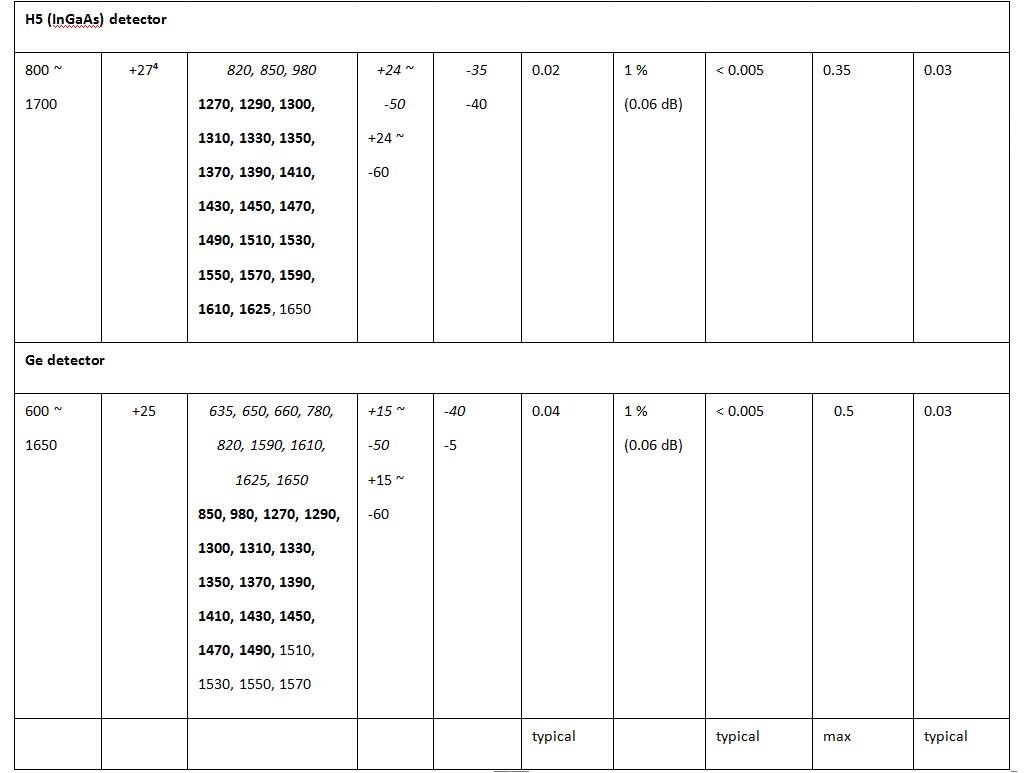

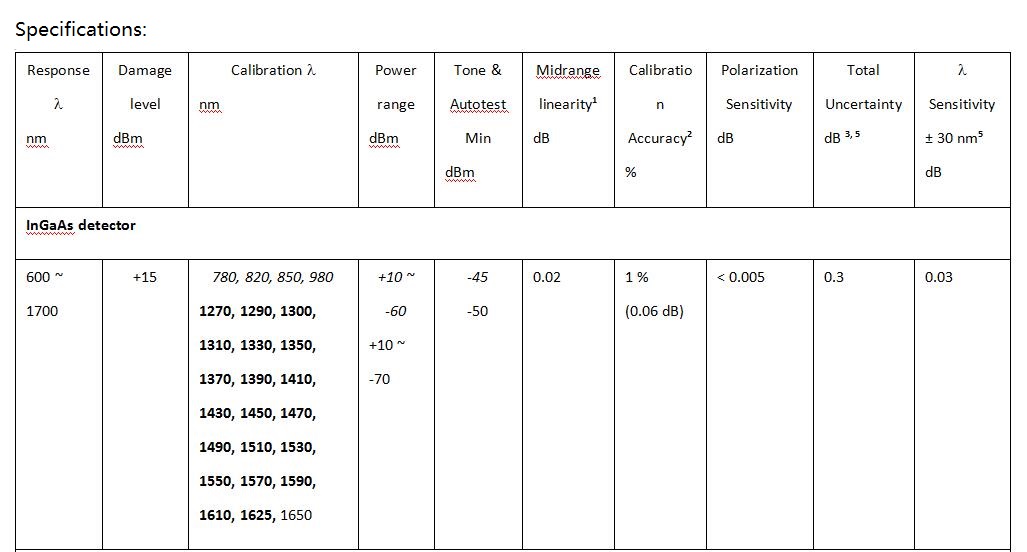

Note 1: Midrange linearity excludes top 5 dB and bottom 10 dB of range.
Note 2: Calibration condition:non coherent light,-355 dBm,231C,1 nm,103 nm FWHM,PC ceramic connector,100 m fiber.
Note 3: Includes contributions of:varying optical connector types,calibration uncertainty,linearity over temperature & range,and fiber core diameter up to 200 m
Note 4:  H5 can sustain the damage level for 2 minutes.
Note 5: At calibration wavelengths in bold type.

Ordering Information:

Package List:
- 1 x SC connector adaptor(OPT046)
- 1 x Operation manual
- 1 x QA certificates
- 1 x Calibration certificate
- 1 x Carry Pouch (OPT149)
- 1 x Carry strap
- 1 x USB-A to USB-micro type cable
