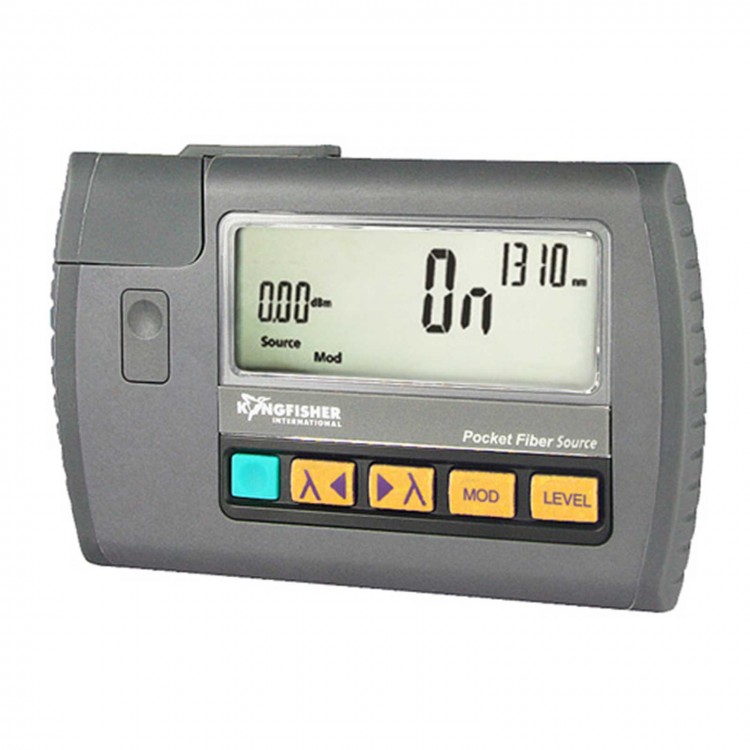

KI 9800 Series Optical Light Source Optical Power Meter Pocket Fiber Source

KI 9800 Series Optical Light Source Optical Power Meter Pocket Fiber Source

Test Applications:
- Single mode, multimode or POF/PCS cable loss testing
- Continuity testing
- Visual Fault Finder (VFL) option
- General testing & maintenance

Features:
- Source or VFL options for all fiber types
- Rugged shirt-pocket size with spring clip
- Excellent optical power stability
- Excellent re-connection repeatability
- Interchangeable connectors
- Long battery life
- Low-skill Limited Feature mode
- Multi-Fiber ID tone source feature
- Mode controlled multimode sources
- Eye-safe long distance VFL to 10 Km
- Autotest compatibility with other instruments
- Large sunlight readable display
- 3-year warranty & calibration cycle

Product Description:
- The KI 9800A Pocket Fiber Source is used for loss testing,polarity checking or fault finding on single mode,multi-mode, PCS or plastic optical fiber (POF) cable.
- Tough construction includes general moisture resistance,rubber corners and proven ability to withstand drops of over 2 meters onto a hard surface.It meets the general requirements of MIL PRF 28800F Class 2.
- 1310/1490/1550/1625 nm laser sources are ideal for single-mode testing,with KI 9600 or KI 2600 series power meters.
850/1300 nm LED sources are ideal for multi-mode testing, in combination with KI 9600 or KI 2600 series power meters. They meet the Encircled Flux (EF) standard compliance to provide the most consistent and reliable testing results.
- 650/660 nm LED source options are ideal for POF testing,in combination with the KI 9600XL or KI2600XL series power meters.
The 850 nm VCSEL source for multi-mode fiber testing should only be used to meet special requirements.
- The 635 nm laser VFL Visual Fault Locator with Class 1 eye safety is optimized for maximum visibility on short distance applications.
- The 650 nm laser VFL Visual Fault Locator with Class 2M eye safety is optimized for long distance applications up to 10 Km.Both VFL options offer much improved eye safety compared to pen-style units when unplugged,and feature PC or APC interchangeable/replaceable connectors,tone/wink function,rugged case and AAA batteries.

General Specification:
- Battery life:Laser/LED source:40/35 hours in Autotest,typical
- Size:124 x 81 x 25 mm/4.9 x 3.2 x 1.0"
- Weight:0.15 kg/0.33 lb. Shipping 0.5 kg/1.1 lb.
- Operating/Storage:15 to 55°C/-25 to 70°C
- Relative Humidity:0 ~ 95%
- CasePolycarbonate with captive dust cap,2.5-meter drop tested
- Power:2 Alkaline AAA cells.Selectable auto-off,low battery indicator
- Multi-fiber ID:Up to 12 fibers
- Calibration cycle:3 years




Package List:
- 1 x  Option,Hybrid Adaptor,Ceramic Sleeve,SC/SC
- 1 x  50 & 62.5 μm fiber mandrel wraps set (OPT701) for MM LED source
- 1 x  Soft carry pouch (OPT156)
- 1 x  Wrist strap
- 1 x  QA certificate
- 1 x  User manual
