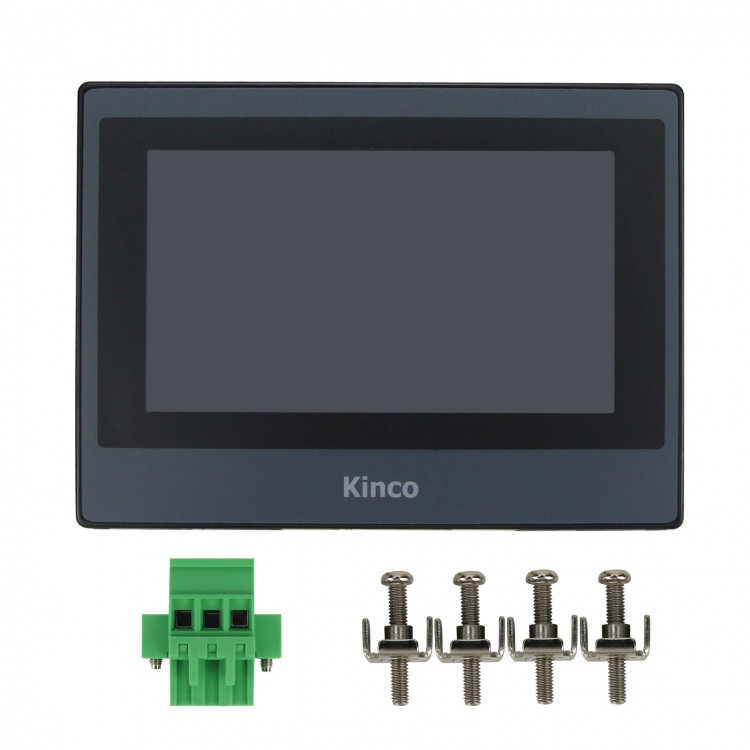

Kinco 7 Inch MT4434TE HMI Touch Screen Human Machine Interface Touch Panel with Ethernet Port

Kinco 7 Inch MT4434TE HMI Touch Screen Human Machine Interface Touch Panel with Ethernet Port

Performance Specification:
Display Size: 7" TFT (16:9 wide panel)
Resolution: 800*480 pixel
Display Color: 65536 color
Brightness: 250cd/m²
Backlight: LED
Touch Panel: 4-wire, precision resistance network (surface hardness 4H)
LCD Life: 50000 hours
CPU: 800MHz RISC
Memory: 128MB FLASH + 64MB RAM
Recipe Memory & RTC: 512KB + RTC
Expandable Memory: 1 USB Host (≤16G)
Printer Port: USB Host/Slave/Serial port
Ethernet: 10/100M self-adaptive
Program Download: USB/Ethernet port/serial port
COM Port: COM0:RS232/RS485-2/4; COM2:RS232

Electrical Specification:
Rated Power: 5W
Rated Voltage: DC 24V
Input Range: DC 12V~DC 28V
Power Down Allowed: <3ms
Insulation Resistance: greater than 50MΩ@ 500V DC
Dielectric Strength Test: 500V AC 1 minute

Structure Specification:
Shell Color: black
Shell Material: engineering plastics
Dimensions (mm): 204 x 150 x 37mm
Cutout size (mm): 192 x 138mm
Weight: 0.5kg

Environment Specification:
Working Temperature: 0～50℃
working Humidity: 10～90% RH (non-condensing)
Storage Temperature: -10～60℃
Storage Humidity: 10～90% (non-condensing)
Shockproof test: 10～25Hz (X, Y, Z direction, 2G/30 minutes)
Cooling Method: natural air cooling

Certification:
Panel Protection Grade: IP65 (4208-93)
CE Certification: EN61000-6-2:2005, EN61000-6-4:2007 + A1:2011
FCC Compatibility: comply with FCC Class A

Features:
-Mainstream Performance: Streamline the LINUX kernel, the network port CPU can reach 800MHz, and it can be started after about 10S.
-Powerful Software: MPI direct connection, support USB slave port Pictbridge printer protocol.
-USB Main Port: It can connect U disk, mouse, keyboard, printer, drive-free camera, etc.
-Ethernet Interface: Achieve multi-screen networking, remote printing, VNC remote monitoring (mobile phones, tablets, computers can monitor in real time).

Package List:
1 Set of Touch Screen
