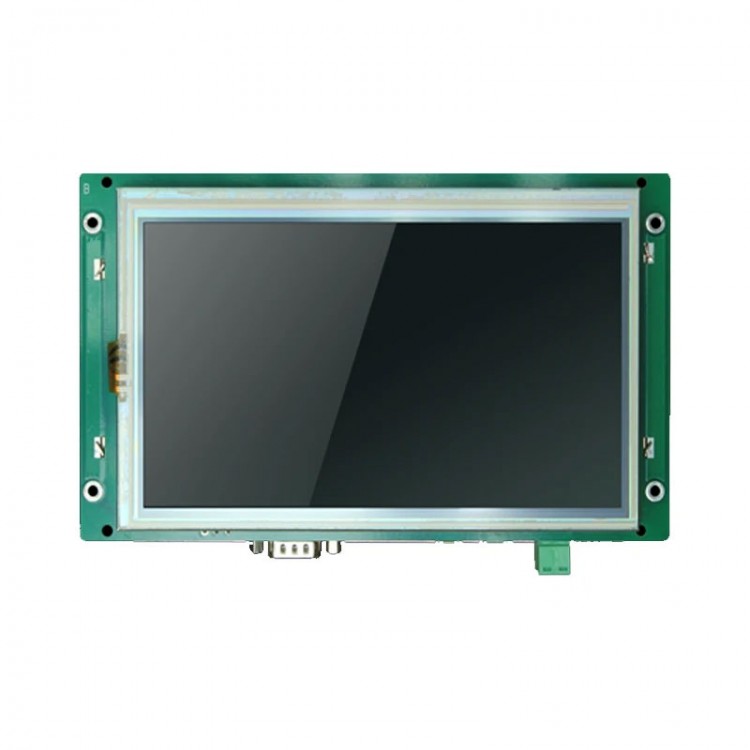

Kinco GR070E 7" TFT 800x480 HMI Touch Screen Human Machine Interface HMI Display without Front Shell

Kinco GR070E 7" TFT 800x480 HMI Touch Screen Human Machine Interface HMI Display without Front Shell

Attention:
- The touch screen is brand new. It does not come with a program.

Features:
- There are 3 models in the GR series: GR043, GR070E and GR100E
- The GR series USB slave port adopts micro USB interface
- E refers to products with Ethernet port, among which COM1 (RS485-2W) is terminal type
- GR series is installed and fixed in the rear, which can perfectly fit the equipment surface and integrate with the equipment
- Customers can design their own mask according to their needs, highlighting the grade of equipment

Product Specifications (GR070E):
Performance Specifications:
- Display size: 7" TFT
- Resolution: 800x480 pixels
- Display color: 16.77M true color
- Brightness: 250cd/m²
- Backlight type: LED
- Touch control panel: 4-wire precision resistance network (surface hardness 4H)
- Backlight lifespan: Over 30000 hours
- CPU: RISC 32bit 800MHz for ARM
- Memory: 128MB NAND flash + 128MB DDR3 memory
- Recipe memory & RTC: 256KB + real-time clock
- Expandable memory: 1 USB Host
- Printing port: USB/serial port
- Ethernet: 10/100M
- Program download: USB/serial port/network port
- Communication ports: COM0: RS232/RS485/RS422; COM2: RS232

Electrical Specifications:
- Power consumption: 3.6W at 24VDC
- Input range: DC10V~DC28V
- Allowable power loss: <3ms
- Insulation resistance: more than 50MΩ at 500V DC
- Withstand voltage test: 500 VAC for 1 minute

Structural Specifications:
- PCB spraying: None
- Housing material: Metal
- Dimensions: 190.4mm x 110mm x 30mm / 7.5" x 4.3" x 1.2"
- Cutout dimensions for mounting: 166mm x 101mm/6.5" x 4"
- Weight: 0.3kg/0.7lb

Environmental Specifications:
- Working temperature: 0~50℃
- Working humidity: 10~90%RH (non-condensing)
- Storage temperature: -20 to 60℃
- Storage humidity: 10~90%RH (non-condensing)
- Shock resistance: 10~500Hz, 30m/s², 3-axis/hour
- Cooling mode: Natural air cooling

Product Certification:
- Panel rating: IP65 certified (4208-93)
- CE certification: CE Certified (EN61000-6-2: 2005/EN61000-6-4: 2007)

Package Included:
- 1 x GR070E HMI

Packaging Details:
- Weight: 0.4kg
