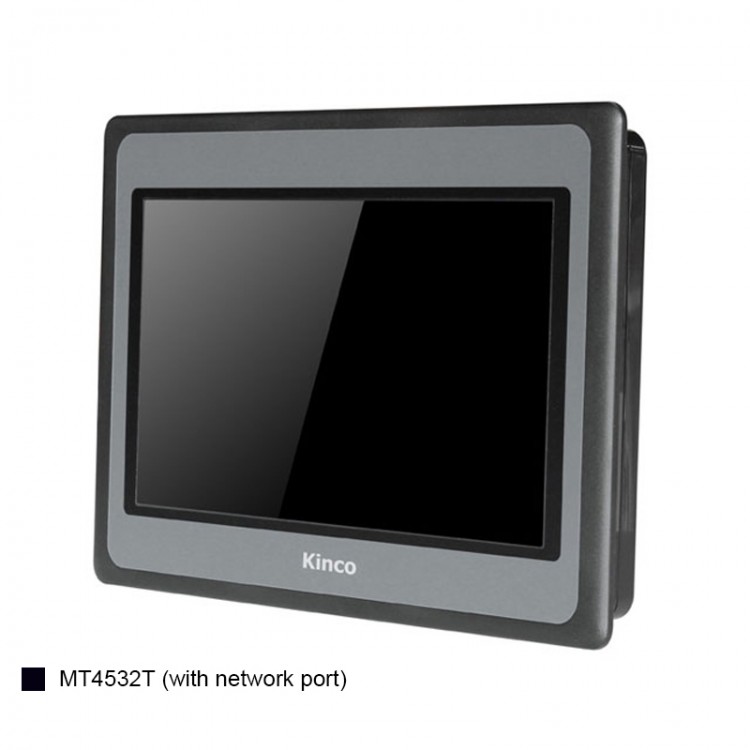

Kinco MT4532TE HMI Touch Screen 10 Inch Human Machine Interface Touch Panel with Ethernet Port

Kinco MT4532TE HMI Touch Screen 10 Inch Human Machine Interface Touch Panel with Ethernet Port

Performance Specification:
Display Size: 10.1" TFT (wide panel)
Resolution: 1024*600 pixel
Display Color: 65536 color
Brightness: 200cd/m²
Backlight: LED
Touch Panel: 4-wire, precision resistance network (surface hardness 4H)
LCD Life: 50000 hours
CPU: 800MHz RISC
Memory: 128MB FLASH + 64MB RAM
Recipe Memory & RTC: 512KB + RTC
Expandable Memory: 1 USB Host (≤16G)
Printer Port: USB Host/Slave/Serial port
Ethernet: 10/100M self-adaptive
Program Download: USB/Ethernet port/serial port
COM Port: COM0:RS232/RS485-2/4; COM2:RS232

Electrical Specification:
Rated Power: 5W
Rated Voltage: DC 24V
Input Range: DC 12V~DC 28V
Power Down Allowed: <3ms
Insulation Resistance: greater than 50MΩ@ 500V DC
Dielectric Strength Test: 500V AC 1 minute

Structure Specification:
Shell Color: black
Shell Material: engineering plastics
Dimensions (mm): 280 x 193 x 36mm
Cutout size (mm): 261 x 180mm
Weight: 0.89kg

Environment Specification:
Working Temperature: 0～50℃
working Humidity: 10～90% RH (non-condensing)
Storage Temperature: -10～60℃
Storage Humidity: 10～90% (non-condensing)
Shockproof test: 10～25Hz (X, Y, Z direction, 2G/30 minutes)
Cooling Method: natural air cooling

Certification:
Panel Protection Grade: IP65 (4208-93)
CE Certification: EN61000-6-2:2005, EN61000-6-4:2007 + A1:2011
FCC Compatibility: comply with FCC Class A

Package List:
1 Set of Touch Screen
