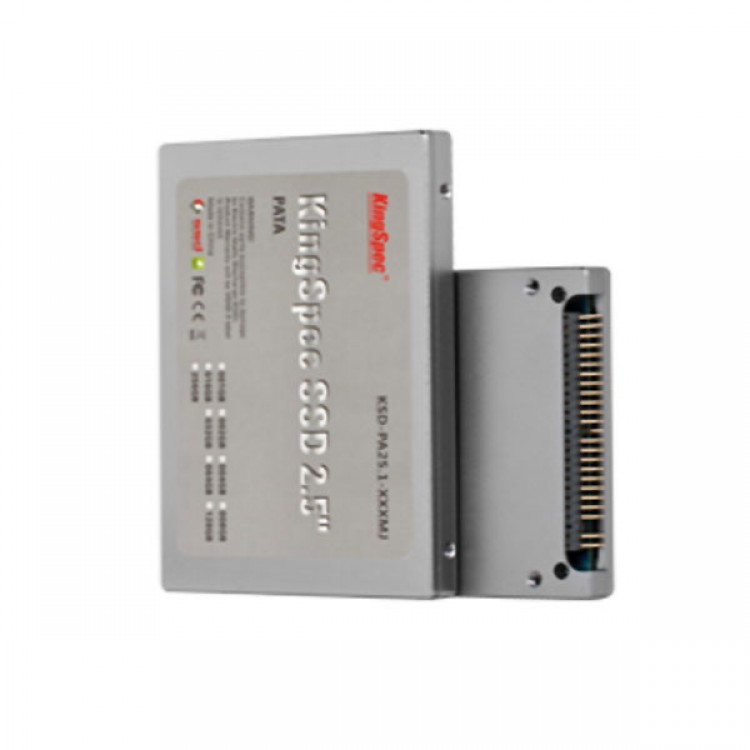

Kingspec 2.5" PATA MLC KSD-PA25.1-064MJ IDE44 Solid State Drive 8 Channel-64GB
Specfications:
- Notebook Upgrade: According to the needs of notebook and DIY, we develop a range of products, which is a boon for the notebook of general performance and DIY. It no need to replace the notebook, but can also enhance their performance. There are various types of products for customers to choose.
| Model | PATA 2.5 MLC | ||||
| General | Form factor | 2.5 | |||
| Interface | PATA | ||||
| Performance | Capacity | 8GB | 16GB | 32GB | 64GB | 128GB | |||
| Sustained Read | 78MB/S | 83MB/S | 86MB/S | 88MB/S | 92MB/S | ||||
| Sustained Write | 26MB/S | 35MB/S | 45MB/S | 71MB/S | 76MB/S | ||||
| Random IOPS | |||||
| 4KB Random Read IOPS | |||||
| 4KB Random Write IOPS | |||||
| Average Access time | 0.2ms | ||||
| Storage Media | NAND Flash | MLC- NAND Flash | |||
| Power Consumption | input Voltage | 5.0V+/_5% | |||
| Idle | 0.5W | ||||
| Active | 2.0W | ||||
| Reliability& Endurance | Write endurance | 80years@10GBytes write and erase per day at 256GB | |||
| Read endurance | unlimited | ||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | ||||
| Data Retention | 10years at 25ºC | ||||
| MTBF | 1,000,000hours | ||||
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | ||||
| Bad Block Management | Auto Bad Block Management in system | ||||
| Environment | Operating Temperature | 0～70℃ | |||
| Non-operating Temperature | -40～85℃ | ||||
| Shock | 2,000G(@0.3ms half sine wave) | ||||
| Vibration | 20G(40-2000HZ) | ||||
| Ambient Humidity | 5-95% | ||||
| Note | some model of the SSD need to backorder | ||||
| Available unit | Available | NO EOL | |||
| Testing Platform | CPU:AMD Athlon 64×2 5200+ 2.7GHz,SDRAM:DDR2 800(PC6400) 2048 MB×1PCS, Mainboard:AMD RS780 (ATI Radeon HD 3200 Graphics)System:Microsoft Windows XP Professional SP2 | ||||
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 | ||||
| Physical Dimensions & Weight | Height(mm) | 9.5+/_0.25 | |||
| Width(mm) | 69.8+/_0.25 | ||||
| Length(mm) | 100.2+/_0.25 | ||||
| Weight(g) | 70±5 | ||||
