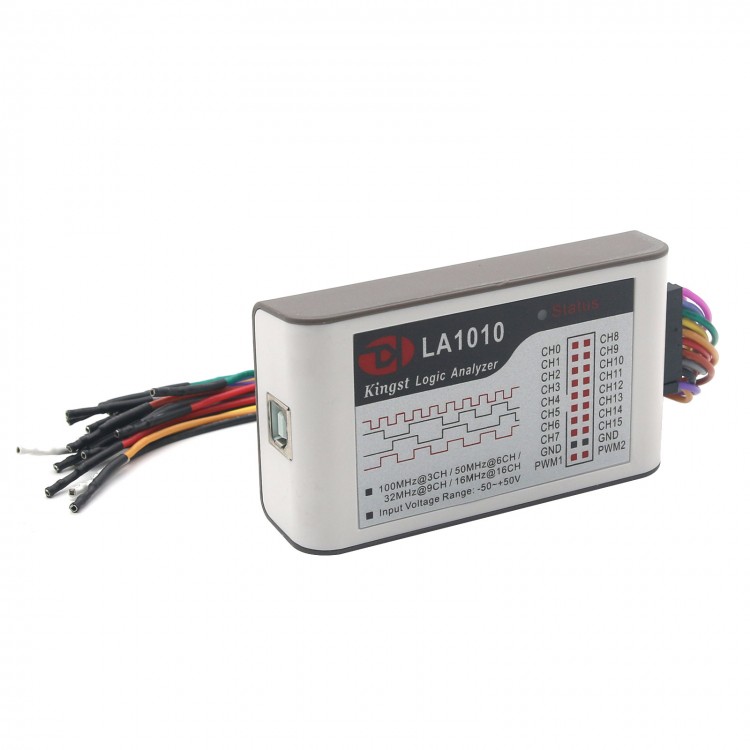

Kingst LA1010 Logic Analyzer High Performance USB2.0 16M 16CH 10G MCU ARM FPGA DSP Debugging Tools

Kingst LA1010 Logic Analyzer High Performance USB2.0 16M 16CH 10G MCU ARM FPGA DSP Debugging Tools

Description:

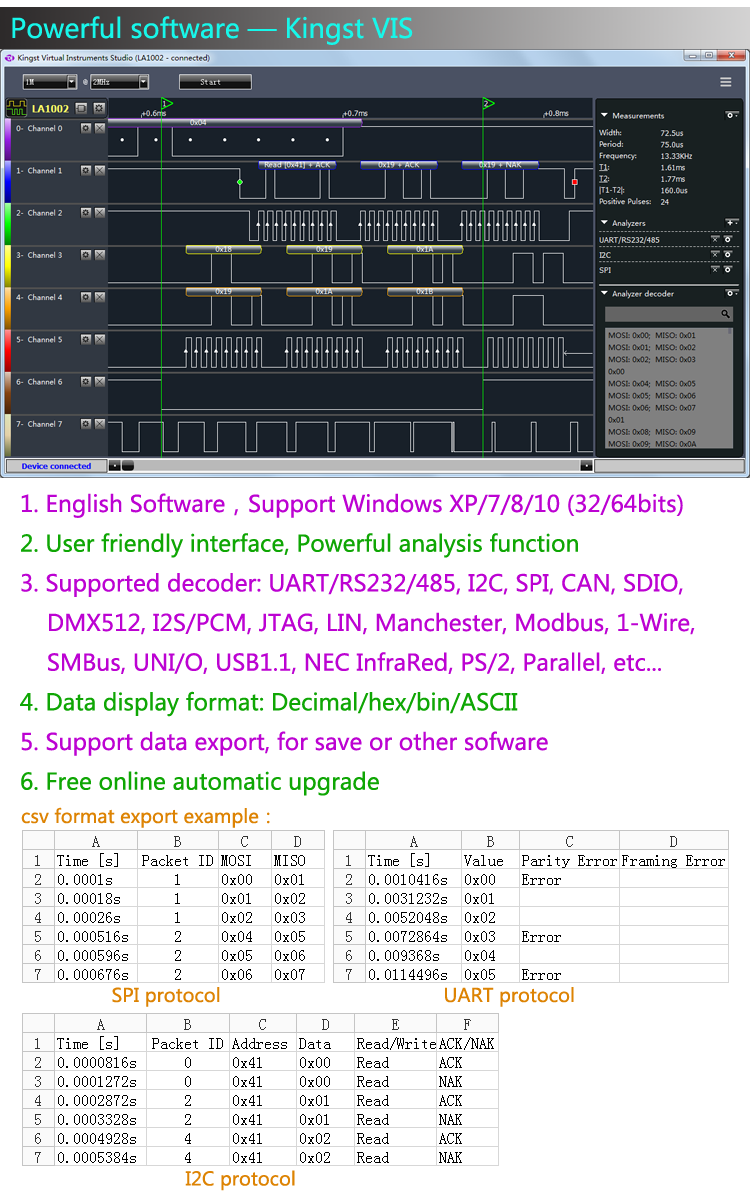

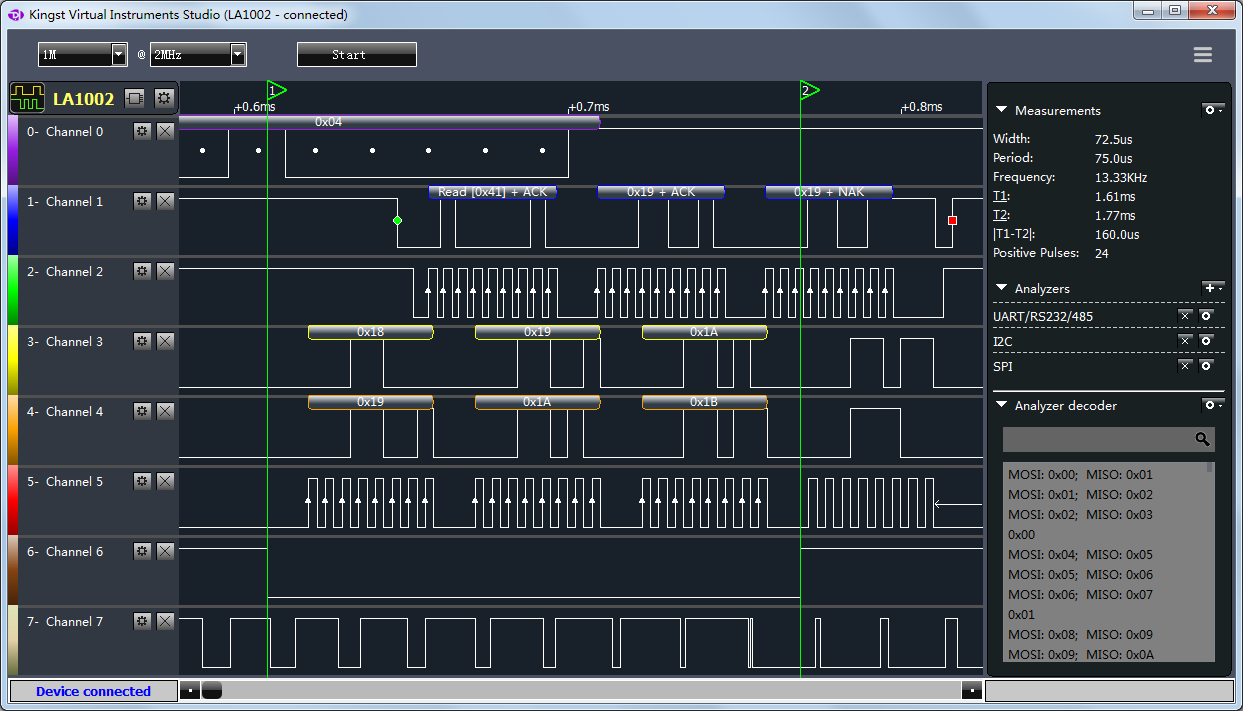

LA1010 is a logic analyzer product with high cost performance. It has 16 input channels and the sample rate is up to 100MHz. Along with the PC software KingstVIS, 16 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen. The signal could be analyzed with many standard protocols, to get more straightforward communication data. It helps a lot in testing  and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.

Features:
·Portable and lightweight

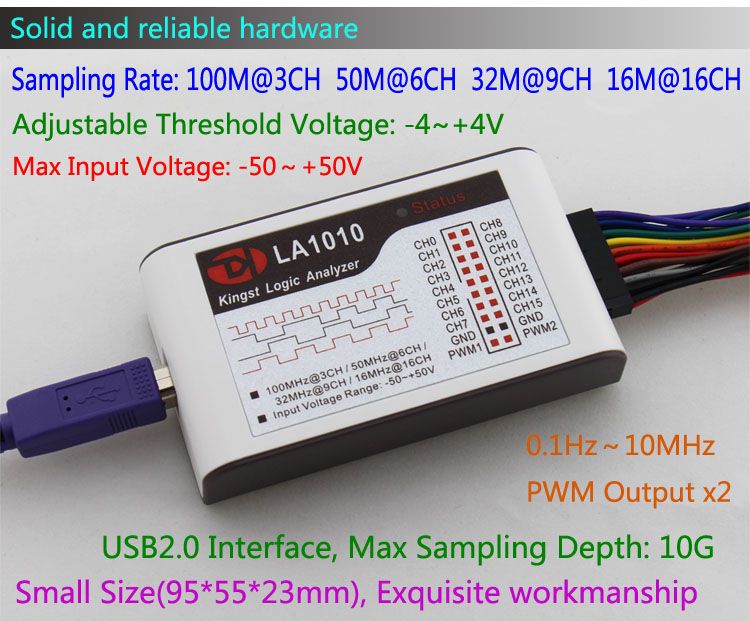

·Max sampling rate: 100M@3channels, 50M@6channels, 32M@9channels, 16M@16channels
·Large sampling depth and support compression
·The built-in PWM generator
·Compatible USB2.0/3.0 interface
·Powerful software and easy to use
·Support online upgrade automatically

Specifications:
·Input channels number: 16
·Max sampling rate: 100M
·Measurement bandwidth: 20M
·Min pulse width can be collected: 20ns
·Max sampling depth: 10G/channel
·Input voltage range: -50V ~ +50V
·Input impedance: 220KΩ, 12pF
·Adjustable threshold voltage: -4V ~ +4V, step: 0.01V
·PWM channels number: 2
·PWM frequency range: 0.1 ~ 10MHz
·PWM frequency adjust step: 10ns
·PWM pulse width adjust step: 10ns
·PWM output voltage: +3.3V
·PWM output impedance: 50Ω
·Standby current: 100mA
·Max operating current: 150mA
·Dimensions: 95mm * 55mm * 23mm
·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit)

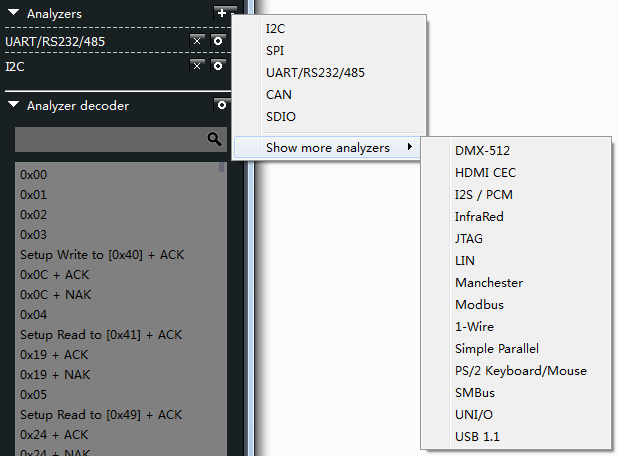

·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc.
