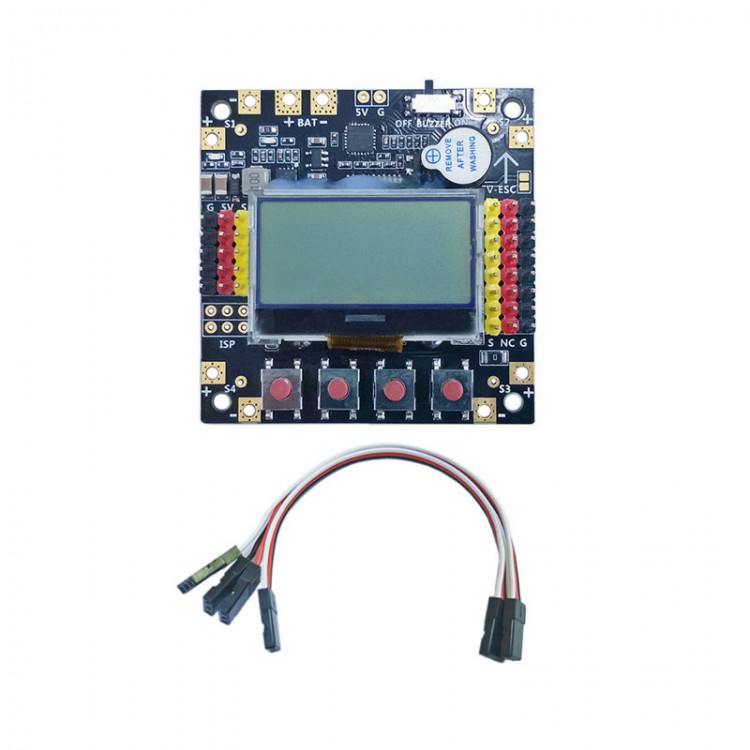

KK2.1.5 PLUS KK2 Flight Control Board Self-Balancing FPV Racing Drone Flight Controller VTOL V1.19S1PRO Firmware

KK2.1.5 PLUS KK2 Flight Control Board Self-Balancing FPV Racing Drone Flight Controller VTOL V1.19S1PRO Firmware

Description:
- The KK2.1.5 PLUS Flight Controller is equipped with an integrated power distribution board (PDB), on-board switch, and buzzer for streamlined installation and convenience.
- The advanced self-balancing feature ensures smooth and stable flight, making it ideal for both beginners and experienced drone enthusiasts.
- Powered by a reliable Atmega module and features gyro from InvenSense Inc., and accelerometer from Anologue Devices Inc.
- The flight controller accepts firmware updates, offering compatibility with V1.19S1PRO or OpenAeroVTOL 1.5/1.6 for enhanced performance and features.
- All settings and adjustments can be made directly on the flight controller's built-in LCD screen with four buttons, eliminating the need for a separate computer unless a firmware upgrade is necessary.

Specification:
- Item name: KK2.1.5 PLUS
- Dimensions: 52mm x 52mm x 12mm
- Weight: 19g
- Integrated module: Atmega
- Gyroscope: InvenSense Inc.
- Accelerometer: Anologue Devices Inc.
- Self-Balancing feature: Yes
- Input voltage: 2-6S lithium battery or ESC-BEC 5V, but it is not allowed to provide two power supplies to flight control at the same time
- Output BEC: 5V 2A
- Receiver signal: 1520us (5 channels in total)
- Signal to ESC (Servo): 1520us
- Firmware: for V1.19S1PRO or OpenAeroVTOL 1.5/1.6 (Flash via USB Programmer)
- Default firmware: V1.19S1PRO

Built-in Airplane Mode:
- Twin-rotor Tri-rotor
- Y6 four-axis + four-axis X
- Six axis + Six axis X
- Eight-axis + Eight-axis X
- X8 +X8 X
- H8 H6
- V8V6
- Aero 1S Aileron
- Aero 2S Aileron
- Flying wing
- Single axis 2M 2S
- Single axis 1M 4S
- V-tail four-axis

Package Included:
- 1 x Flight Control Board
- 1 x Cable

Note:
- Battery is not included.
