KK2.1HC Lite Flight Control Board 6050MPU 644PA Multirotor KK2 KK2.1 KK2.1.5

Availability: In stock, usually dispatched in 1 business day

  • Price:$85.64
  • Price in reward points: 856 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $83.93 $82.21 $79.65 $76.22 Contact US
Quantity:

KK2.1HC Lite Flight Control Board 6050MPU 644PA Multirotor KK2 KK2.1 KK2.1.5

Description:

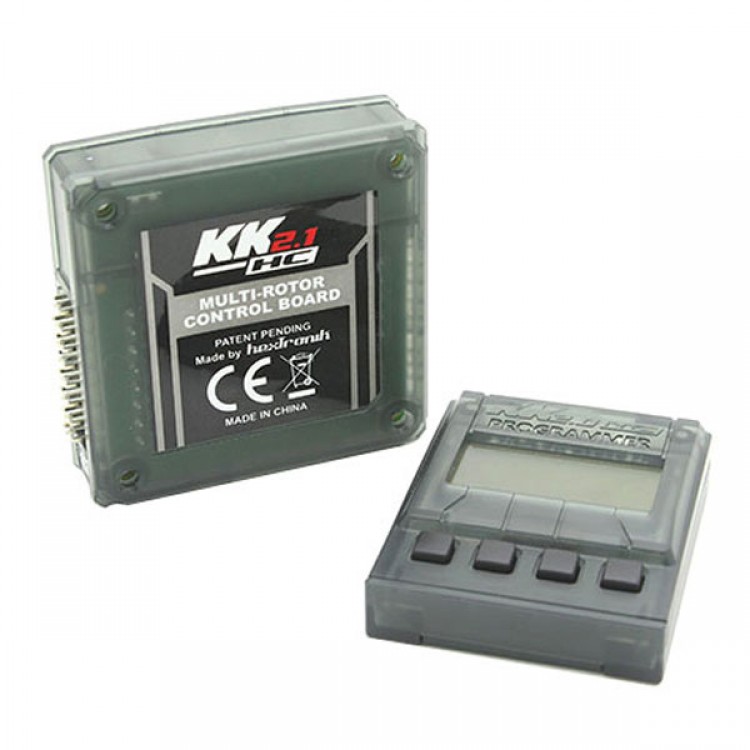

- The next evolution of the rotor revolution is here!! The KK2.1HC (Hard Case) is packing new found power with updated sensors, memory, header pins, hard case and remote programmer.
- The KK2.1HC is the next big evolution of the first generation KK flight control boards. The KK2.1HC was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The remote LCD screen and built in software makes installing and setup easier than ever. The screen and programing buttons have been relocated to a remote plug-in programmer and a hard case installed, this makes the KK extremely durable. The plug in programmer uses the exact same format as the onboard version and can be plugged in at anytime for a quick value change. This new design allows the KK to be installed in frames where access to the onboard buttons and screen was an issue, you can even leave the cable plugged into the KK side and run it out for access to the programmer. The Hard case still retains the standardized 45mm mounting holes and has the buzzer is now internally mounted. Mounting locations and damage to the LCD screen is a thing of the past.


Specs:
- Size: 55mm x 55mm x 19mm
- Weight: 32g
- IC: Atmega644 PA
- Gyro/Acc: 6050MPU InvenSense Inc.
- Auto-level: Yes
- Input Voltage: 4.8-6.0V
- AVR interface: standard 6 pin.
- Signal from Receiver: 1520us (5 channels)
- Signal to ESC: 1520us

Firmware Version: 1.6:
Pre-installed firmware.
Dualcopter
Tricopter
Y6
Quadcopter +
Quadcopter X
Hexcopter +
Hexcopter X
Octocopter +
Octocopter X
X8 +
X8 X
H8
H6
V8
V6
Aero 1S Aileron
Aero 2S Aileron
Flying Wing
Singlecopter 2M 2S
Singlecopter 1M 4S
