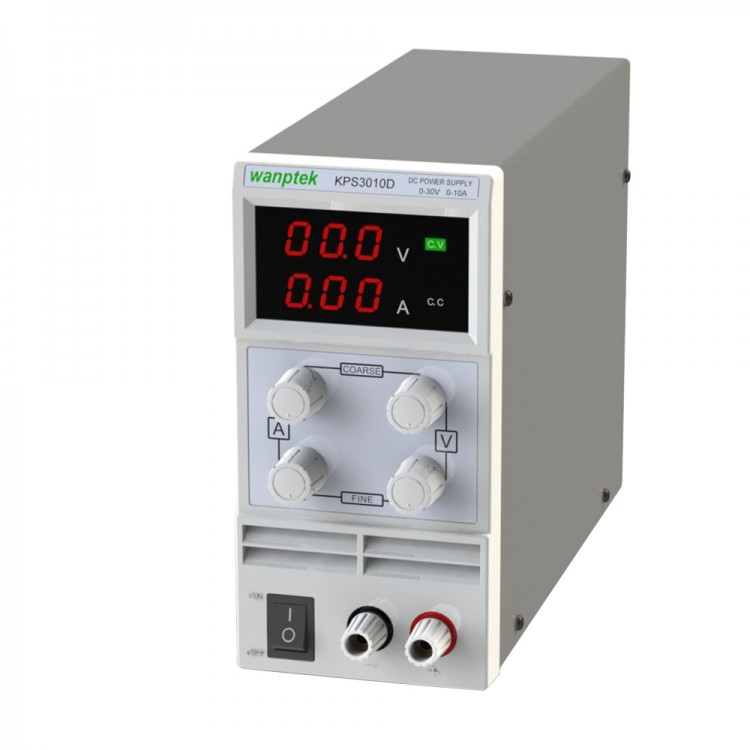

KPS3010D 30V 10A Precision Variable Adjustable Digital Regulated DC Power Supply
Introduction:
- This DC power supply is a single set of output, high precision double display switch dc power supply. The machines have complete operating protection function, with high performance, low ripple, high stability, light weight and small volume etc. Current limiting protection can make KPS power supply and load against accidental damage. KPS series power supply with low temperature control circuit, and the noise of cooling fan is low.
Features:
- Mini but professional switching DC power supply.
- The DC power supply has complete operating protection function.
- Highly efficient, low ripple, small volume, light weight.
- Double LED display of voltage and current, high precision.
- Voltage stabilization, current limiting, simple operation feature the DC power supply.
- Dual voltage input and convenient choice.
- Temperature control fan heat dissipation, low noise.
- Double potentiometer, more precise adjustment.
- With replaceable fuse, convenient to change the protective tube.
- Applied in production line test, electrical maintenance, aging products, battery charging, laboratories scientific research and teaching and all other need - DC regulated power supply.
Specifications:
- Input Voltage: AC 110V,60Hz(US) / 220V,50Hz(EU)
- Voltage setting switch is at the back.
- Output Voltage: 0 ～ 30V
- Output Current: 0 ～ 10A
- Plug Type: US
- Voltage Resolution: 0.1V
- Current Resolution: 0.01A
- Ripple Voltage: Vpp≤1%
- Power Effect: CV≤1%+10mV
- Effect of Load: CV≤1%+10mV
- Digital Display: 3 LED Digital Display
- Ripple Noise: ≤1 MV
- Voltage Display Precision: ±1% + 1 digits
- Current Display Precision: ±1% + 2 digits
- Operating Environment: -10～45℃/14～113℉ Rh≤90%
- Storage Environment: -20～60℃/-4～140℉ Rh≤80%
- Item Size: Approx. 80 * 230 * 165mm / 3.1 * 9.1 * 6.5in
- Item Weight: Approx. 1466.3g / 51.7oz
- Package Size: Approx. 28.5 * 11.5 * 20cm / 11.2 * 4.5 * 7.9in
- Package Weight: Approx. 1846g / 65.1oz
Caution:
- Please choose the right input voltage on the back of DC power supply.
- Incorrect choosing input voltage will damage the machine.
Package included:
- 1 * DC Power Supply
- 1 * Power Cord
- 1 * Output Line
