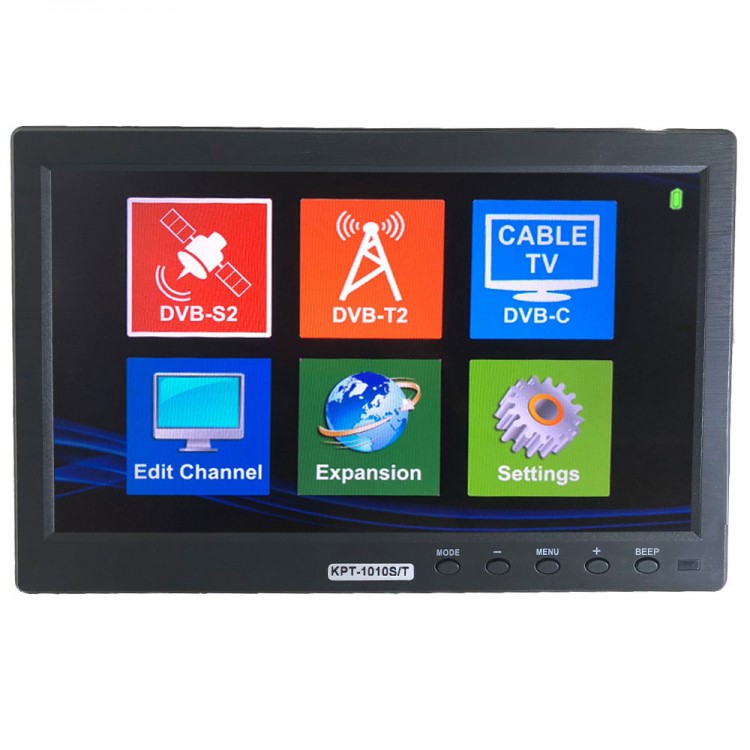

KPT-1010S/T 10.1" Satellite Finder Satellite Signal Finder (S2+T2+C) & HD Monitor (TV+HD+AV Input)
TV/AV Key:
① Combo Satellite TV Finder (DVB-S2/T2/C)
② HD input function (HD Monitor)
③ AV input function (Monitor)
Features:
- 10.1 Inch high definition TFT LCD screen can display channels (DVB-S/S2+T/T2+C). < Support DVB-S/S2 MP4 Hevc (H.265) AVS/AVS+>
- DVB-S2+T2+C Combo Receiver; Live FTA Digital Picture and Sound. Satellite TV TP signal and lock the signal alarm
- When locking signal, it finds satellite signal quality and shows strength & quality & BER & PWR strength and quality readings
- Built-in speaker and remote control
- With DC12V power output to CCTV
- Built-in Lithium battery for finding satellite for around 3 hours
- Battery play time (AV input): about 6 hours
- In satellite finder state, AV port outputs video and audio synchronously
1. Combo Satellite Finder <S2+T2+C>
DVB-S/S2 < DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+>
- Frequency range: 950MHz-2150MHz
- LNB power & switch: 13V 18V/22K / signal lock indicator
- Input impedance: 75Ώ (F). LNB short-circuit protection
- DiSEqC: 1.0, 1.1, 1.2 and USALS. Built-in signal locked alarm
- Built-in satellite finder management. Easy Satellite Manager (Edit, Delete and Scan), Edit TP, Frequency, LNB switch, Symbol Rate, etc.
DVB-T/T2: <DVB-T and DVB-T2 standard>
- Frequency range: VHF-H 174-230MHz and UHF 470-860MHz
- Demodulation: QPSK, 16QAM, 64QAM and 256QAM
- Bandwidth: 6, 7 and 8MHz
DVB-C: <DVB-C standard>
- Frequency range: 115~858MHz
- Symbol Rate (Kbps): Modify according to local country information
- Demodulation: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM
2. HD Input: In HD Input state
- Support 800*480 to 1920*1080 (Max:1080P)
3. AV Input: (in AV state;TV state is AV output)
- Support Video & Audio & DC12V power test
- AV Input (Video & Audio Input Monitor)
Specifications:
- 10.1" high-resolution digital display LCD with backlight
- Dots pixels: 1024*600 (1843200Pixes)
- Color system: PAL/NTSC
- Battery indicator light show
- Lithium battery: DC 7.4V 4000mAh (built-in)
- Input voltage: DC13.5V 0.8A
Package Included:
- 1 x Satellite Finder
- 1 x Power Adapter
- 1 x Car Power
- 1 x LNB Line
- 1 x DC Line
- 1 x AV Line
- 1 x Remote Control
- 1 x User Manual
