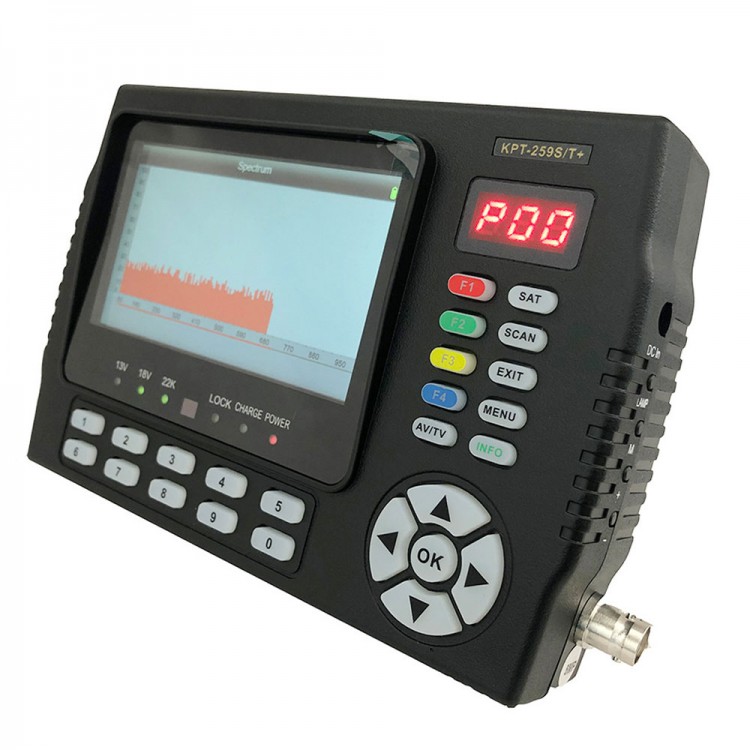

KPT-259S/T+ (Plus) 4.3" Combo Satellite Finder & Spectrum Analyzer & CCTV Camera Tester & Monitor

KPT-259S/T+ (Plus) 4.3" Combo Satellite Finder & Spectrum Analyzer & CCTV Camera Tester & Monitor

Features:
- 4.3 Inch IPS (800*480HD) High definition TFT LCD Screen which Can Display Channels (DVB-S/S2+T/T2+C ) < Support DVB-S/S2 MP4 Hevc(H.265) AVS/AVS+>
- With DVB-S/S2+T/T2+C for spectrum analysis
- DVB-S2+T2+C Combo Receiver; Live FTA Digital Picture and Sound. Satellite TV TP signal and lock the signal alarm
- When locking signal, it finds star signal quality and shows Strength & Quality & BER & PWR strength and quality readings
- Built-in speaker and remote control function
- With DC12V power output to CCTV
- Build-in Lithium battery for finding satellite for around 3 hours
- Battery play time (AV input): about 6 hours
- In satellite finder state, AV port outputs video and audio synchronously
- Added AHD TVI CVI HD coaxial camera test
- TV/AV key: ①Combo Satellite TV Finder ( DVB-S2/T2/C); ②HD input function (HD Monitor); ③AHD input function (HD Coaxial Camera Test); ④ AV input function (Monitor)

1. Combo Satellite finder <S2+T2+C>
DVB-S/S2 < DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+>
- Frequency range: 950MHz-2150MHz
- LNB power & switch: 13V 18V/22K / signal lock indicator
- Input impedance: 75Ώ (F). LNB short-circuit protection
- DiSEqC: 1.0, 1.1, 1.2 and USALS. Built-in signal locked alarm
- Built-in satellite finder management. Easy Satellite Manager (Edit, Delete and Scan), Edit TP, Frequency, LNB switch, Symbol Rate, etc.

DVB-T/T2: <DVB-T and DVB-T2 standard>
- Frequency range: VHF-H 174-230MHz and UHF 470-860MHz
- Demodulation: QPSK, 16QAM, 64QAM and 256QAM
- Bandwidth: 6, 7 and 8MHz

DVB-C: <DVB-C standard>
- Frequency range: 115~858MHz
- Symbol Rate (Kbps): Modify according to local country information
- Demodulation: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM

2. HD Input: In HD Input state
- Support 800*480 to 1920*1080 (Max: 1080P)

3. AHD Input: Test CCTV Camera
Automatic display of HD AHD/TVI/CVI camera pixel
3.1. AHD: Support TVI AHD CVI camera 720P 960P 1080P HD video input, display picture (Max: 8MP)
3.2. Analog CVB-S Video

4. AV Input: (in AV state; TV state is AV output)
- Support Video & Audio & DC12V power test
- AV Input (Video & Audio Input Monitor)

Menu:
- English, Arabic, French, German, Russian, Spanish and Turkey

Mini USB: (USB Charge Line) (In satellite finder state )
- Support software upgrade & PVR & Games & IP Setting & Network Apps & DLNA Render
- USB connection Internet（by USB WiFi: 7601 & 5370), for Youtube / Weather / LOCALIPTV /for XTREAM / Upgrade By Net.

Specifications:
- 4.3" IPS high-resolution digital display LCD
- Dots pixels: HD 800*480 (800*480Pixes)
- Color system: PAL/NTSC
- Battery indicator light show
- Lithium battery: DC 11.1V 2200mAh (built-in)
- Input voltage: DC13.5V 1A

Package Included:
- 1 x Satellite finder
- 1 x Power adapter
- 1 x LNB line
- 1 x Car power
- 1 x DC line
- 1 x AV line
- 1 x USB line
- 1 x User manual
- 1 x Remote control
- 1 x Bag
