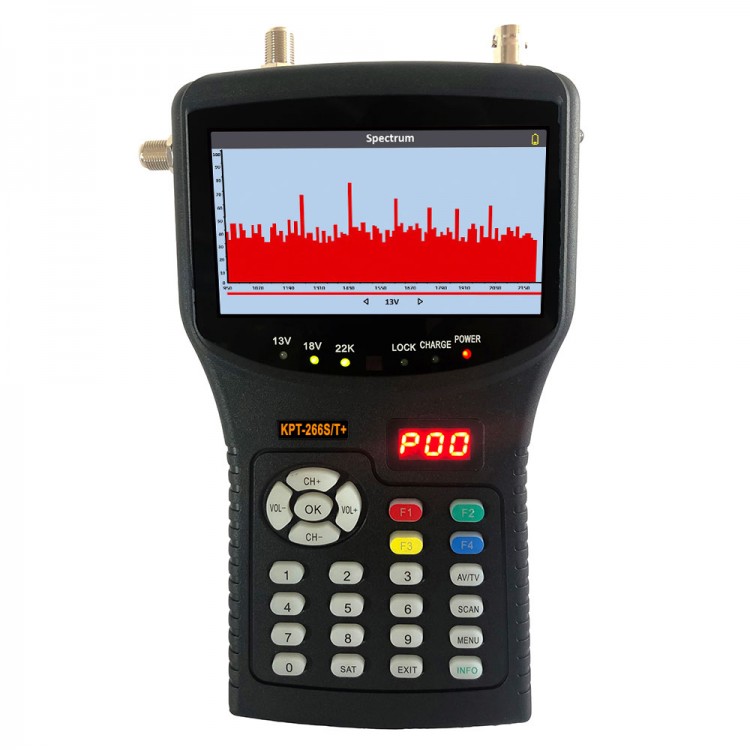

KPT-266S/T+ (Plus) 4.3" Combo Satellite Finder (S2+T2+C) & Spectrum Analyzer & CCTV Camera Tester
Description:
The satellite finder is for DVB-S2 (H.265) + T2 + C. It is also a spectrum analyzer for DVB-S/S2+T/T2+C.
The first channel of this model is DVB-S2/T2/C by default. The second channel is the AHD input (supporting AHD TVI CVI+Analog) camera input. And the third channel is AV (Audio and Video Input).
1. Combo Satellite finder <S2+T2+C>
DVB-S/S2: < DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+>
- Frequency range: 950MHz-2150MHz
- LNB power & switch: 13V18V/22K / signal lock indicator
- Input impedance: 75Ώ (F). LNB short-circuit protection
- DiSEqC: 1.0, 1.1, 1.2, USALS. Built-in signal locked alarm
- Built-in satellite finder management
- Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate, etc.
DVB-T/T2: <DVB-T and DVB-T2 standard>
- Frequency range: VHF-H 174-230MHz and UHF 470-860MHz
- Demodulation: QPSK, 16QAM, 64QAM and 256QAM
- Bandwidth: 6, 7 and 8MHz
DVB-C: <DVB-C standard>
- Frequency range: 115~858MHz
- Symbol Rate (Kbps): Modify according to local country information
- Demodulation: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM
2. AHD Input: Test CCTV Camera
Automatic display of HD AHD/TVI/CVI camera pixel
2.1. AHD: Support TVI AHD CVI camera 720P 960P 1080P HD video input, display picture (Max: 8MP)
2.2. Analog CVB-S Video
3. AV Input: (in AV state; TV state is AV output)
- Support Video & Audio & DC12V power test
- AV Input (Video & Audio Input Monitor)
Menu:
- English, Arabic, French, German, Russian, Spanish and Turkey
Specifications:
- 4.3" high-resolution digital display LCD
- Dots pixels: 480*272 (391680Pixes)
- Color system: PAL/NTSC
- Battery indicator light show
- Lithium battery: DC 11.1V 2200mAh (built-in)
- Input voltage: DC13.5V 0.8A
Package Included:
- 1 x Satellite finder
- 1 x Power adapter
- 1 x LNB line
- 1 x Car power
- 1 x DC line
- 1 x AV line
- 1 x User manual
- 1 x Remote control
- 1 x Bag
