KPT-716S/T Satellite Finder Meter HD TV Satellite Receiver DVB-S2 DVB-T2 MPEG-4 Modulator w/ 7" LCD

KPT-716S/T Satellite Finder Meter HD TV Satellite Receiver DVB-S2 DVB-T2 MPEG-4 Modulator w/ 7" LCD

Functions:
1. Fully compliant with DVB-S/S2 standard & DVB-T2/DVB-T standard; High quality video, audio display with HDMI output.

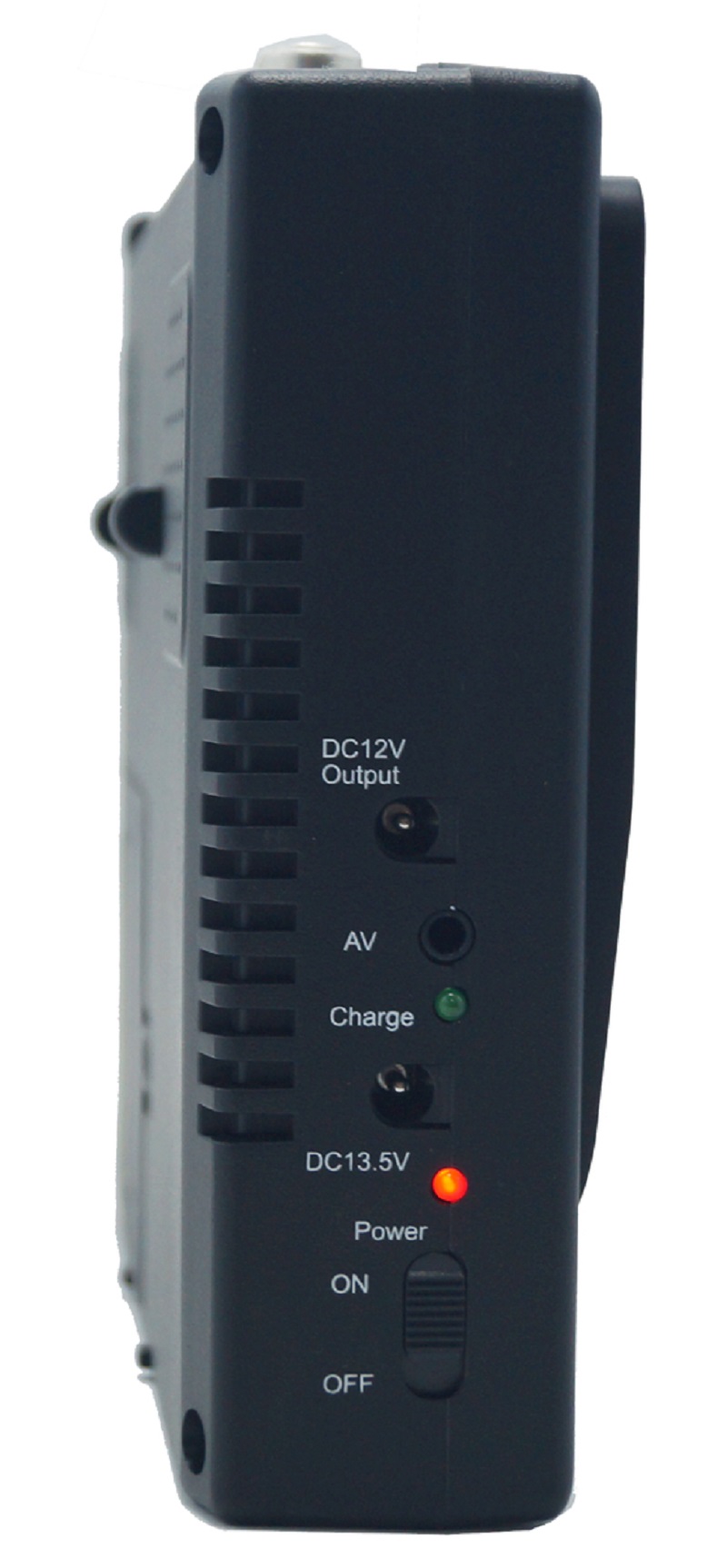

2. Support AV input: analog video and audio input display as DVD and other multimedia player; with DC12V power supply only output to the camera.

Main Features:

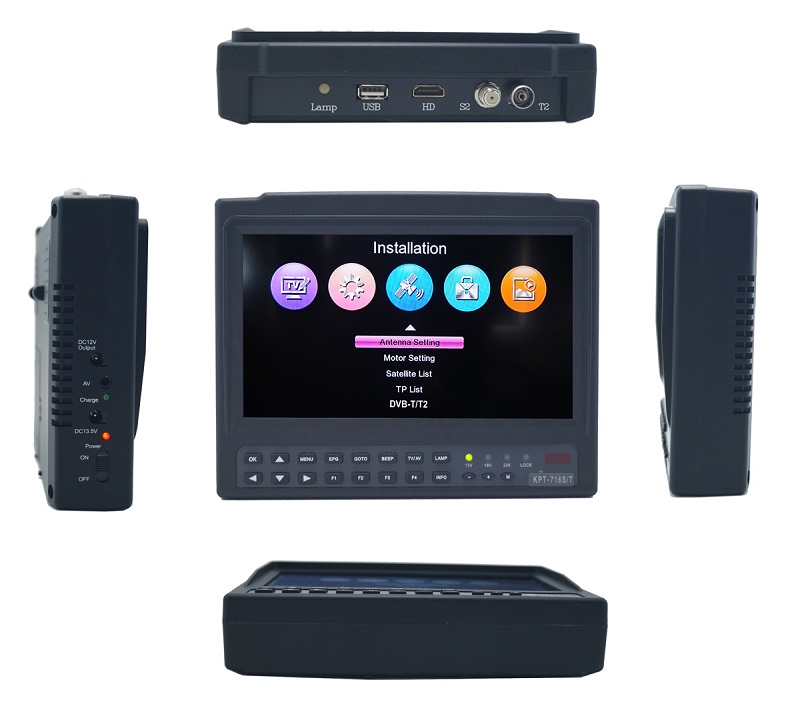

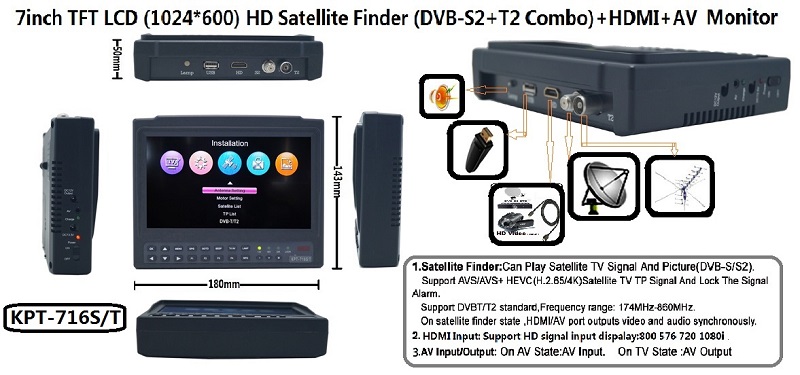

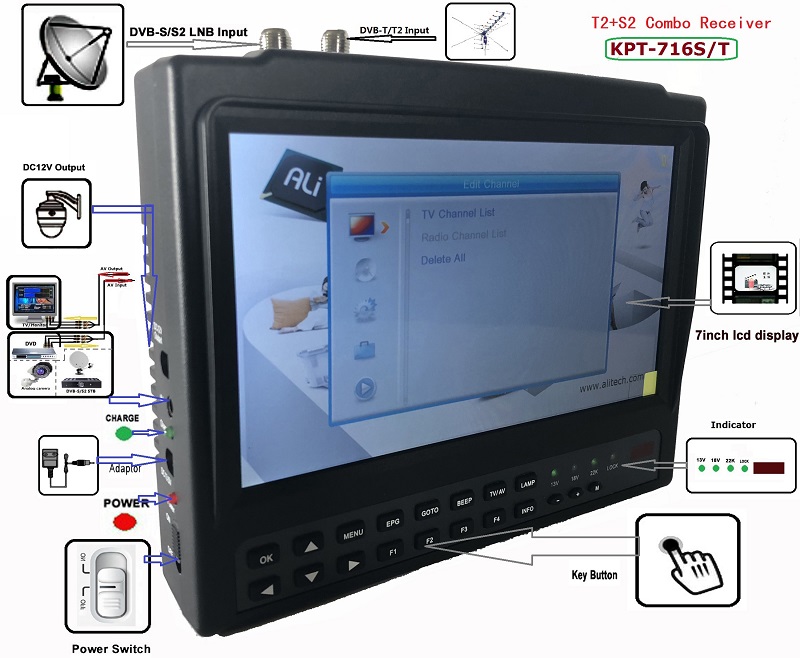

- 7" portable widescreen satellite finder & DVB-T2 test & monitor
- 7" High definition TFT LCD screen which can play channels (DVB-S/S2 & DVB-T2)

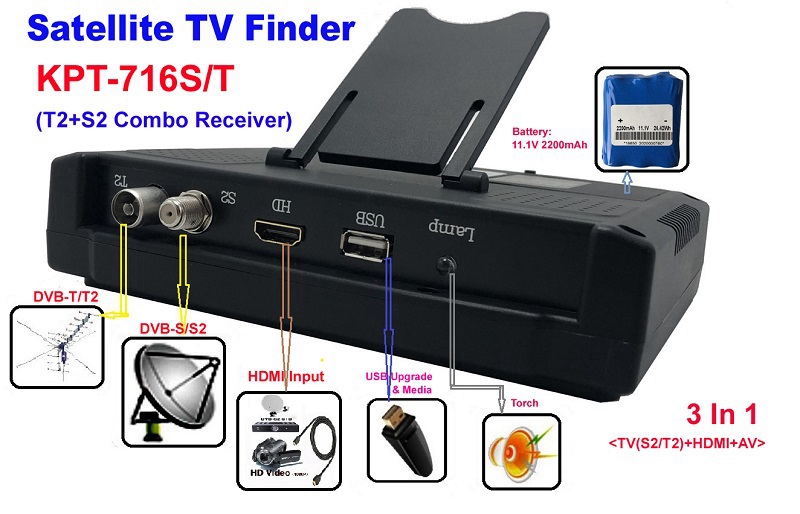

- T2+S2 Combo receiver; Live FTA digital picture and sound

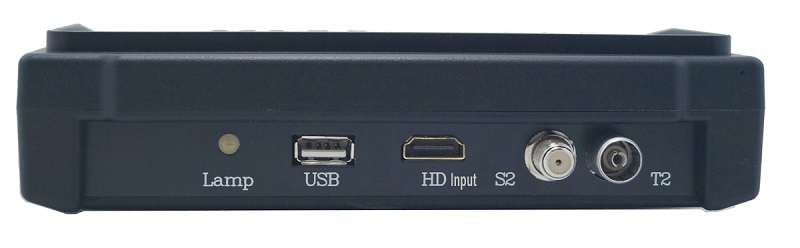

- AV output and AV input function. With HDMI output
- Shows strength and quality readings
- Sound and light alarm when lock signal (DVB-S/S2)
- Fully compliant with DVB-T2/DVB-T standard

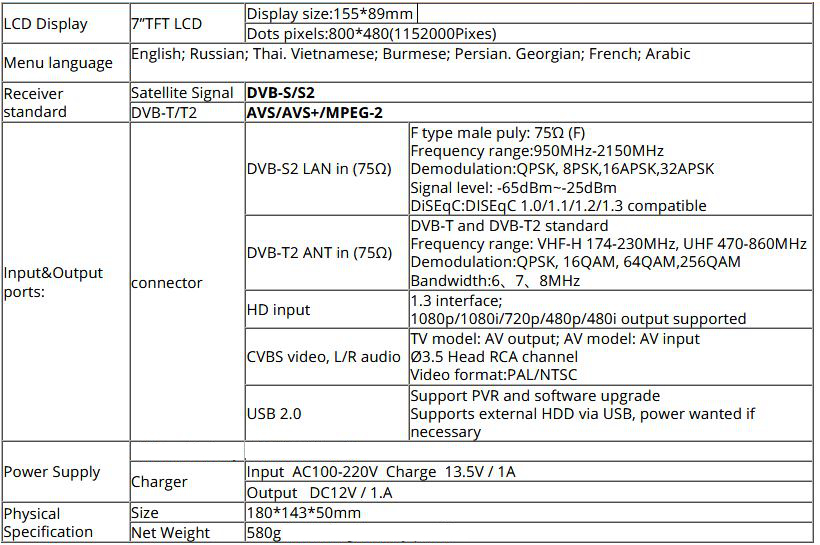

Main Specification And Characteristics: T2+S2 Combo Receiver
1-DVB-T/T2, compliant with EN 300 744 DVB-T and EN 302 755 DVB-T2
2-DVB-S/S2, compliant with EN 300 421 DVB-S and EN 302 307 DVB-S2
3-QPSK, 8PSK, 16APSK and 32 APSK
4-QPSK/8PSK 1-45Msps, 16APSK:1-39Msps and 32APSK 1-32Msps
5-Channel bw 1.7/5/6/7/8MHz
6-T2-Base profile o T2-Lite profile o single and multiple PLPs
7-Low IF (4.57-10MHz)
8-Carrier acquisition range: +/-650kHz at 8MHz BW
9-Video decoder: MPEG-4/H.264 MP and HP MPEG-2MP at ML and MP at HL
10-Audio decoder: MPEG-1/2/4, AAC/HE-AAC/AC3.DD+ (optional)/PCM
11-HDMI Tx 1.3 with HDCP 1.2 at CEC and full HD up to 1080p
12-PAL and NTSC auto switch
13-USB 2.0 for PVR, time shift and media playback
14-Up to 5000 channels
15-Supports subtitle and VBI/OSD Teletext
16-Auto scan/TP scan/NIT scan and blind scan
17-DISEqC 1.0/1.1/1.2/1.3 compatible
18-Supports favorites group
19-Supports logic channel number
20-OTA update

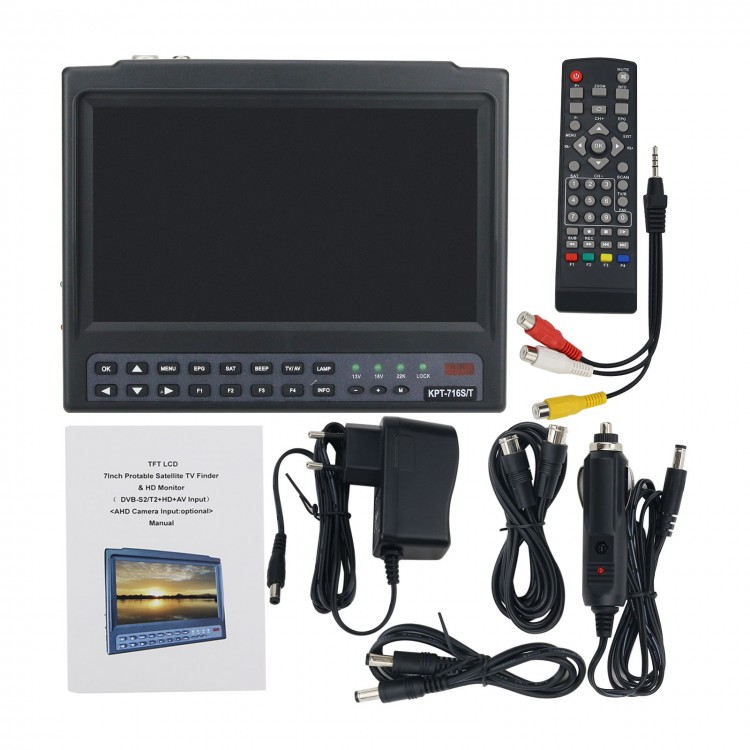

Package Included:
- 1 x Set of Satellite Finder Meter

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
