KPT-736HD+ (Plus) 7" Satellite Finder & HD Camera Monitor & CCTV Camera Tester & HDMI-compatible Monitor

KPT-736HD+ (Plus) 7" Satellite Finder & HD Camera Monitor & CCTV Camera Tester & HDMI-compatible Monitor

Features:
- 7" IPS high definition TFT LCD Screen Can Display Channels <DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+>
- DVB-S2 Receiver; Live FTA Digital Picture and Sound. Satellite TV TP signal and lock the signal alarm
- When locking signal, it finds satellite signal quality and shows Strength & Quality & BER & PWR, INFO article shows of signal shape
- Built-in speaker and remote control
- With DC12V power output to CCTV
- Built-in Lithium battery for finding satellite for around 3 hours
- Battery play time (AV input): about 6 hours
- In satellite finder state, AV port outputs video and audio synchronously
- KPT-736HD+: Added AHD TVI CVI HD coaxial camera test
- PTV/AY key: 1. Satellite TV Finder (DVB-S2); 2. HD input (HD Monitor); 3. AHD input (HD Coaxial Camera Test); 4. AV input (Monitor)

1. Satellite Finder<DVB-S/S2 MP4 HEVC (H.265) AVS/AVS+>
- Frequency range: 950MHz-2150MHz
- LNB power & switch: 13V 18V/22K/signal lock indicator
- Input impedance: 75Ω(F). LNB short-circuit protection
- DiSEqC: 1.0, 1.1, 1.2 and USALS
- Built-in signal locked alarm
- Built-in satellite finder management. Easy Satellite Manager (Edit, Delete and Scan), Edit TP, Frequency, LNB switch, Symbol Rate, etc.

2. HD Input: In HD Input state
- Support 800*480 to 1920*1080 (Max: 1080P)

3. AHD Input: Test CCTV Camera
Automatic display of HDA HD/TV I/CVI camera pixel
3.1. AHD: Support AHD/TVI/CVI camera 720P 960P 1080P 4K HD video input and display picture (Max: 8MP)
3.2. Analog CVB-S Video

4. AV Input: (inn AV state; TV state is AV output)
- Support Video & Audio & DC12V power test
- AV Input (Video & Audio Input Monitor)

USB: (In satellite finder state)
- Support software upgrade & PVR & Games & IP Setting & Network Apps & DLNA Render
- USB connection Internet (by USB WiFi: 7601 & 5370), for Youtube/Weather/LOCAL IPTV/for XTREAM/Upgrade By Net.

Menu:
- English; Polish; Arabic; French; Russian

Specifications:
- 7" IPS high-resolution digital display LCD (with backlight)
- Dots pixels: 1024*600 (1843200Pixes)
- Color system: PAL/NTSC
- Lithium battery: DC 11.1V 2600mAh (built-in)
- Input voltage: DC 13.5V 1A
- Dimensions: 180 x 143 x 50mm/7.1 x 5.6 x 2"
- Net weight: 580g/1.3lb (including battery pack)

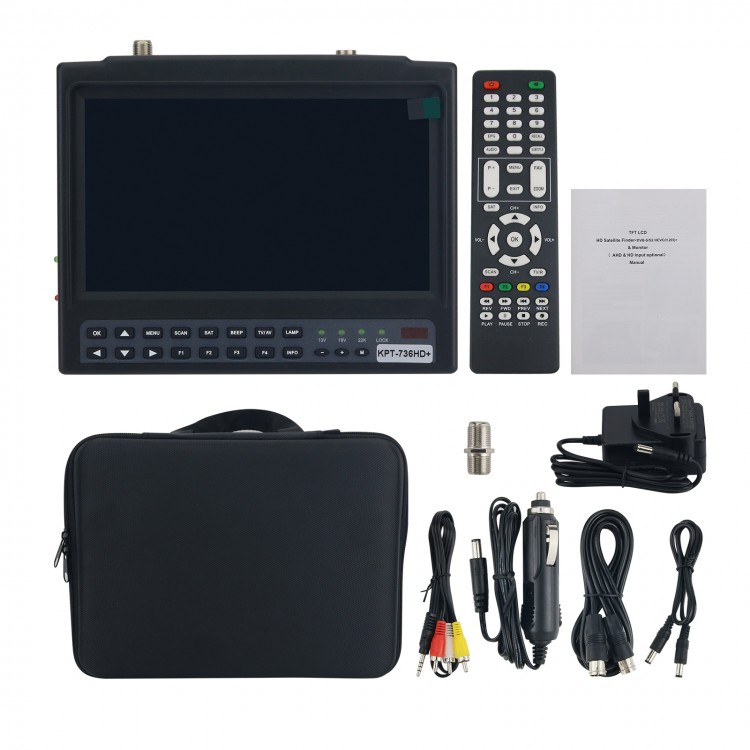

Package Included:
- 1 x Satellite Finder
- 1 x Adapter
- 1 x Car Power
- 1 x LNB Line
- 1 x DC Line
- 1 x AV Line
- 1 x Bag
- 1 x Remote Control
- 1 x User Manual
