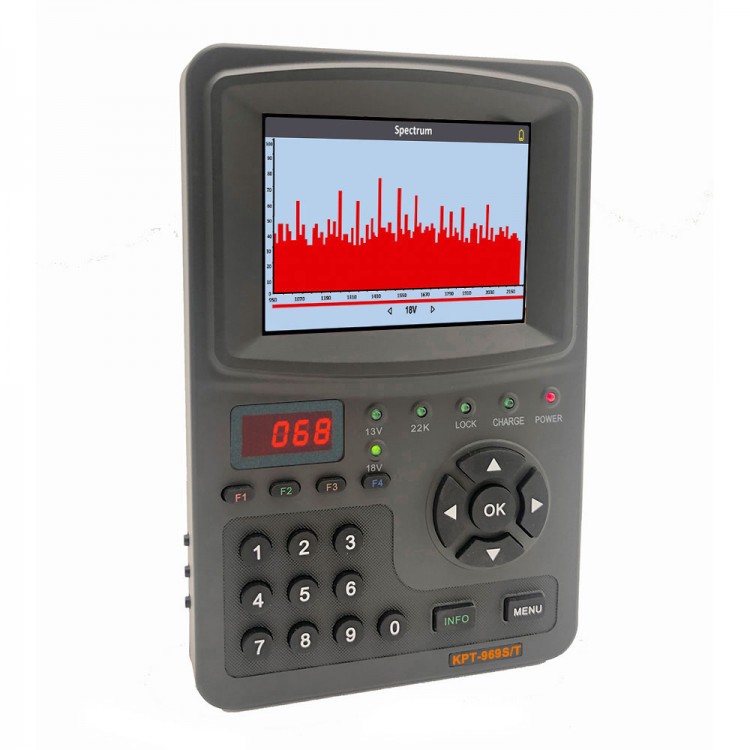

KPT-969S/T 3.5" Combo Satellite Finder (DVB-S2+T2+C) & Spectrum Analyzer & Monitor (TV & AV Input)

KPT-969S/T 3.5" Combo Satellite Finder (DVB-S2+T2+C) & Spectrum Analyzer & Monitor (TV & AV Input)

Description:
It is exported to the European countries and can be used in Taiwan. It supports DVB-S2+T2+C.

Features:
- 3.5 inch TFT LCD screen can display channels <supporting DVB-S/S2 MP4 Hevc (H.265) AVS/AVS+ >
- With DVB-S/S2+T/T2+C for spectrum analysis
- DVB-S2+T2+C Combo Receiver; Live FTA Digital Picture and Sound. Satellite TV TP signal and lock the signal alarm
- When locking signal, it finds star signal quality and shows Strength & Quality & BER & PWR strength and quality readings
-Built-in speaker. With DC12V power output to CCTV
- Built-in lithium battery for finding satellite around 3 hours
- Battery play time (AV input): about 6 hours
- In satellite finder state, AV port outputs video and audio synchronously
- PTV/AV key: 1. Combo Satellite TV Finder (DVB-S2/T2/C); 2. AV input function (Monitor)
- TV/AV conversion input function: full English menu (optional Chinese and English menu)

1. Combo Satellite finder <S2+T2+C>
DVB-S/S2: < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>
- Frequency range: 950MHz-2150MHz
- LNB power & switch: 13V18V/22K / signal lock indicator
- Input impedance: 75Ώ (F). LNB short-circuit protection
- DiSEqC:1.0, 1.1, 1.2, USALS; built-in signal locked alarm
- Built-in satellite finder management
- Easy Satellite Manager (Edit, Delete and Scan), Edit TP, Frequency, LNB switch, Symbol Rate, etc.

DVB-T/T2 <DVB-T and DVB-T2 standard>:
- Frequency range: VHF-H 174-230MHz and UHF 470-860MHz
- Demodulation: QPSK,16QAM, 64QAM and 256QAM
- Bandwidth: 6, 7 and 8MHz

DVB-C <DVB-C standard>:
- Frequency range: 115~858MHz
- Symbol Rate(Kbps): Modify according to local country information
- Demodulation: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM

2. AV Input (in AV state; TV state is AV output):
- Support Video & Audio & DC12V power test
- AV Input (Video & Audio Input Monitor)

HD Output: (In satellite finder state)
- Optional 576i, 576P, 720P, 1080i and 1080P

Menu:
- English, Arabic, French, German, Russian, Spanish and Turkey

Mini USB: (USB charge line) (in satellite finder state)
- Support software upgrade & PVR & Games & IP Setting & Network Apps & DLNA Render
- USB connection Internet (by USB WiFi: 7601 & 5370), for Youtube/Weather/LOCAL IPTV/for XTREAM/Upgrade By Net.

Specifications:
- 3.5" high-resolution digital display LCD (with backlight)
- Dots pixels: 320*240 (230400Pixes)
- Color system: PAL/NTSC
- Battery indicator light show
- Lithium battery: DC11.1V 2200mAh (built-in)
- Input voltage: DC 13.5V 1A

Package Included:
- 1 x Satellite finder
- 1 x 13.5V adapter
- 1 x Car power
- 1 x LNB line
- 1 x DC line
- 1 x AV line
- 1 x USB line
- 1 x User manual
- 1 x Bag

Note:
- Remote control is optional. If it is needed, please contact us to pay the cost.
