KQCPET6 V6 Upgraded B Type Laptop Desktop PC Universal Diagnostic Test Debug Support PCI/PCI-E/LPC/Mini PCIE

KQCPET6 V6 Upgraded B Type Laptop Desktop PC Universal Diagnostic Test Debug Support PCI/PCI-E/LPC/Mini PCIE

Main features:
1. It implements LPC DEBUG automatic diagnostic functions, and added three kinds of LPC diagnostic interface, for a total of 14 species. Equivalent to the past
2. EC to achieve compatibility Compal, Quanta, Lenovo and other notebook
3. PCIE interface detects the code more, and you can look up the code

Note:Because of different batches of the factory, product appearance sent at random

The following link for the new support;Laptop Desktop PC mobile phone Apple computer test，More powerful, more convenient to use, more accurate test.

Specifications:
- This is an advanced PC device that is capable of testing the PC computers with different types of CPUs,including ALL series of previous and latest Intel/ AMD/Cyrix CPUs
- It can test the components of computer main board working or not and test the initialization of the system hardware, such as: System Chipset, CPU - Initialization and Registration, HDD Controllers, System
Cache, Extended Memory RAM, Keyboard/Mouse Controller, Sound and LAN Controller, Video Memory and Controller etc

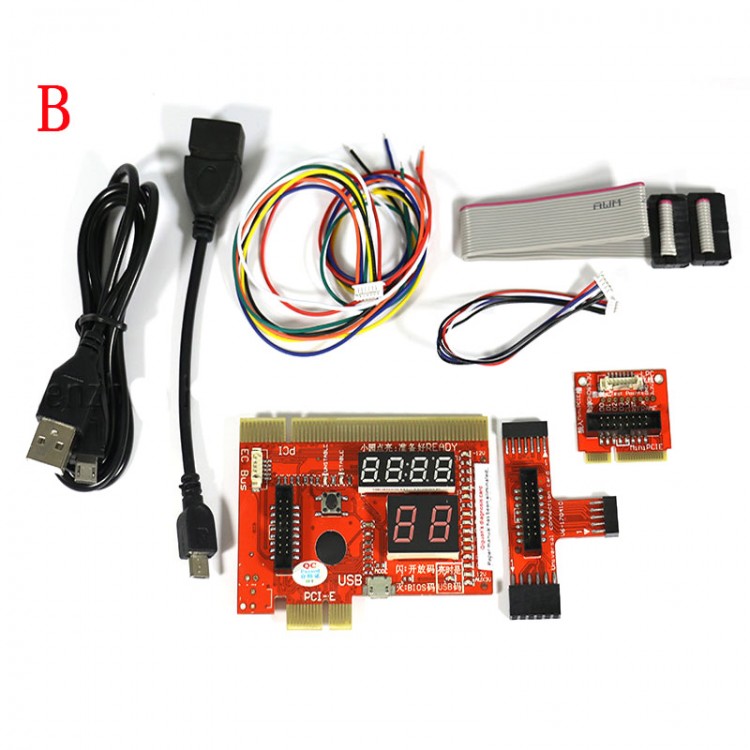

Package List:
Package List:
- 1 x KQCPET6 V6 Type B Master Diagnostic Board
- 1 x T-Card
- 1 x MiniPCI-E
- 1 x OTG Cable
- 1 x Extension Cable
- 1 x LPC Wire
- 1 x EC Wire
- 1 x USB Cable
