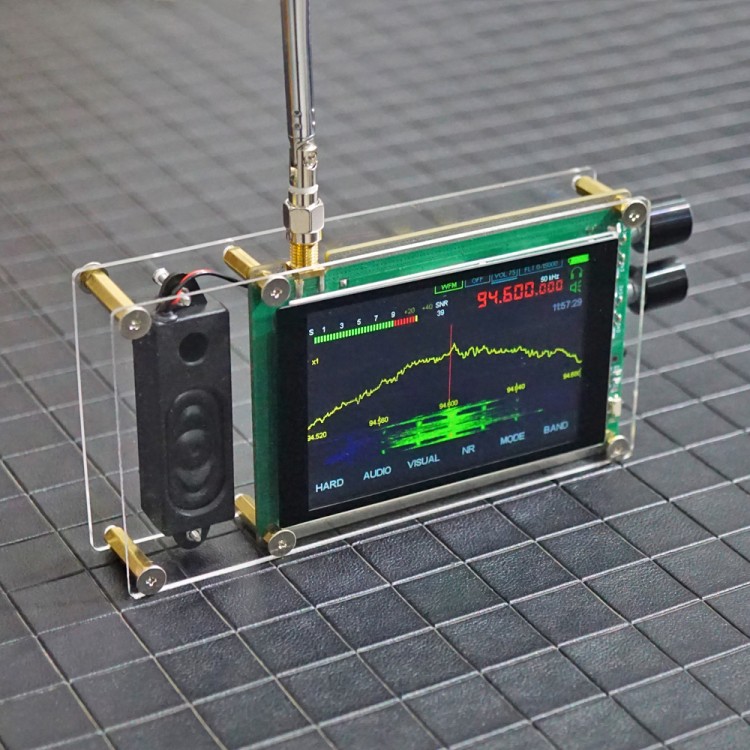

KQS1 Malachite SDR Radio Receiver Full Band Radio 50KHz-200MHz Malahit DSP Radio 1.10C Hardware

KQS1 Malachite SDR Radio Receiver Full Band Radio 50KHz-200MHz Malahit DSP Radio 1.10C Hardware

Parameters:
1) The radio is constructed based on the SDR principle-the function is determined by the loaded software
2) Frequency range: from 50 kHz to 200 MHz (50KHz-250MHz and 400 MHz to 2 GHz after registration)
3) All types of analog modulation: AM, SSB, NFM and WFM
4) Powerful functions: variable filter width, adaptive noise suppressor, and threshold noise suppressor. Noise Blanker, AGC, equalizer
5) Use the fully functional chip MSI001
6) A powerful stm32h743 with a clock frequency of 480 MHz is applied
7) 3.5-inch IPS display with touch screen
8) There is a built-in UHF
9) Controls-2pcs encoders with buttons and touch screen
10) Powered by an external TYPE-C interface or battery, which can be charged by TYPE-C
11) Consumption-300mA when listening to headphones
12) The reception on the built-in telescope or external antenna is to improve the HF reception on the telescope antenna. An additional board with a source follower has been developed. The board will be built into the standard receiver design
13) Connect to a computer via USB. Can transmit CAT, IQ and audio
14) 160 kHz span, with scalability
15) Sensitivity-under the condition of up to 250MHz, s/w is 0.3μV = 10dB; the limit receiving sensitivity is almost close to -130dbm
16) DSP filter adjustment range: 0-10KHz (adjusted to 50Hz-3KHz voice clarity and anti-interference ability are preferred)
17) Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB
18) With backlight control
19) SMA female antenna socket
20) Motherboard size: 110 x 70mm/4.3 x 2.8"
21) Mainboard weight: about 70g/0.15 lb

Package Included:
- 1 x Set of SDR Radio Receiver

Note:
The default frequency range is 50KHz to 200MHz (default version). The frequency range of the registered version is 50KHz to 250MHz, 400MHz to 2GHz.
