Product size: 20x4x7.2cm(heightXwidthXthickness)

Operation video

The latest upgrade prompt:

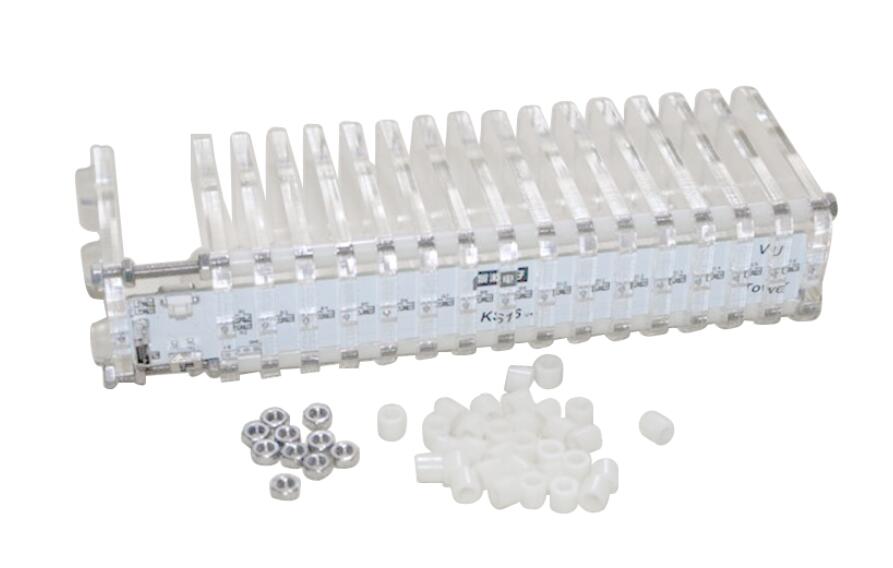

1.KS16 new version with a nylon washer to replace the old section of the middle of the nut,to solve the old section of a lot of nuts,slow installation of the shortcomings,the new assembly is convenient,the appearance is more beautiful;
2.KS16 Fantasy Crystal sound column led comprehensive upgrade to fog matte red,yellow,green,blue,orange,powder 6 color led to solve the old version of positive light glare problems,about before and after the new KS16 side of the four arbitrarily placed,visual effect is very good, color than the old section is more gorgeous,take in the hand fondle admiringly feeling.

KS16 eight kinds of classic display mode,through the Settings,set up with the function of memory.
Mode 1: column mode
Mode 2: column with peak to maintain pattern
Mode 3: column band peak value,peakUpward removal mode
Mode 4: mirror mode,in the middle to both sides (add,video is not updated)
Mode 5: single point mode
Mode 6:peakMove up mode
Mode 7: singlepeak valuepattern
Mode 8: silent full light mode (can be used to test LED)

Main features:
- The 16 segments column design,visual effect is best,highly optimised for put
- 8 kinds of classic mode,button control,with power down memory
- 6 class gain settings,long press the button settings
- The new version of the full use of fog like matte LED,before and after the visual is the best

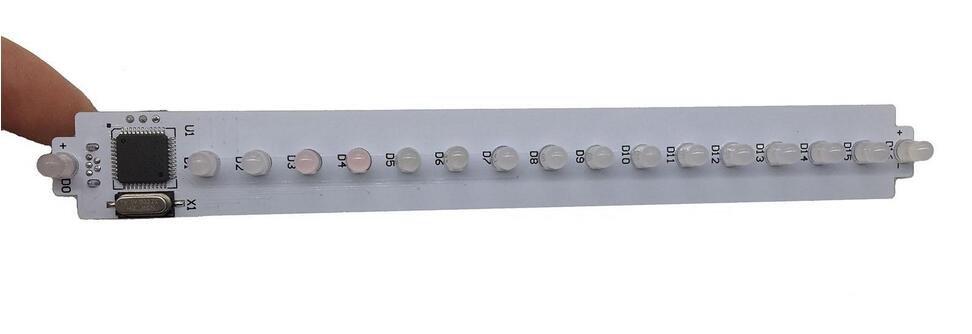

- Use white PCB design,white to light has a very good reflection effect,can make whole more even and bright colors
- Due to the high density of the organic glass,heavy quality,adopt 304 stainless steel screw sound column of the gravity support,stainless steel nuts each layer is fixed,the plexiglass assurance level,did not tilt and shaking, firm and durable in use (pirated products directly with PCB fixed heavy organic glass,can not guarantee glass did not tilt,and it is easy to fall apart oh,from behind even bear to look)
- The design of PCB embedded in organic glass,and products are the same radian,to make the overall appearance and feel good,rear can see refraction effect
- The use of the rear type input,which is convenient to put,and does not affect the positive visual effect

Buy a suite of friends please note: Due to the manufacturer's organic glass thickness error (currently can not be controlled),there may be a glass with the LED is not in a plane phenomenon, please youWhen installing a part of the organic glass in a timely manner in the welding good PCB, please adjust the spacing between the nut and align each layer organic glass with leds.

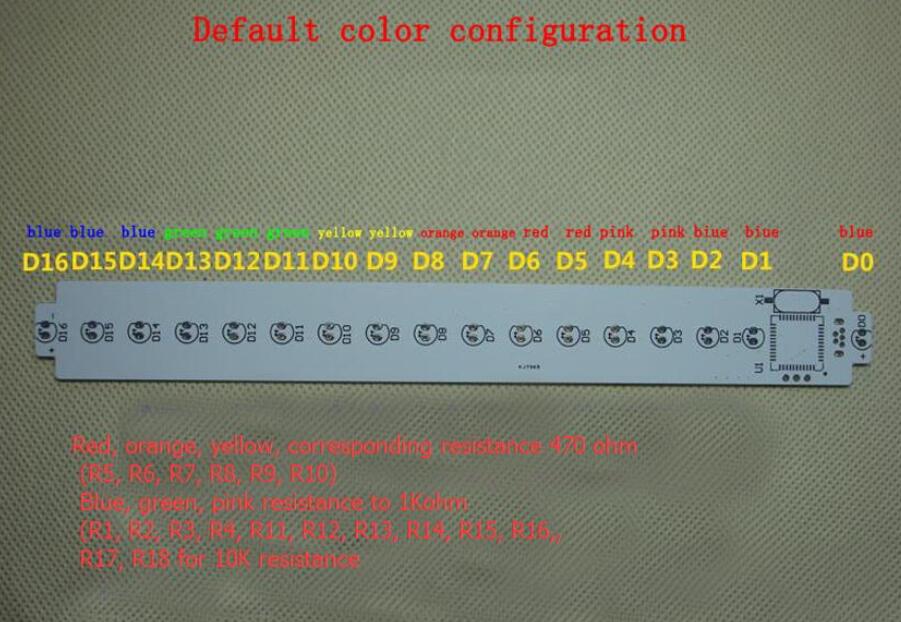

Default best color configuration: mark(471) for470 ohm resistor,marked (102) for 1K resistance,Label (103) for 10K resistance

Key operation and instructions for use:
Click: schema transformation
Length by 1 second: gain adjustment,1-6 level will be the top of the corresponding display (recommended value 3-4)
Long press 3 seconds: the channel conversion,the pink light is on the right channel,the orange light is left.

Attention:
1.Please insert the connecting cables attached to the USB port to the computer USB interface,3.5 mm earphones head through audio one points two branch device plugged into the computer or other equipment of the headphone output,another splitter broken connection audio equipment;
2.Please adjust the input volume by adjusting the gain control to display the control to the appropriate range;
3.Do not use copy mobile phone charger or other ripple is too big,voltage instability of the power supply will cause bottom noise or causing damage to the product.

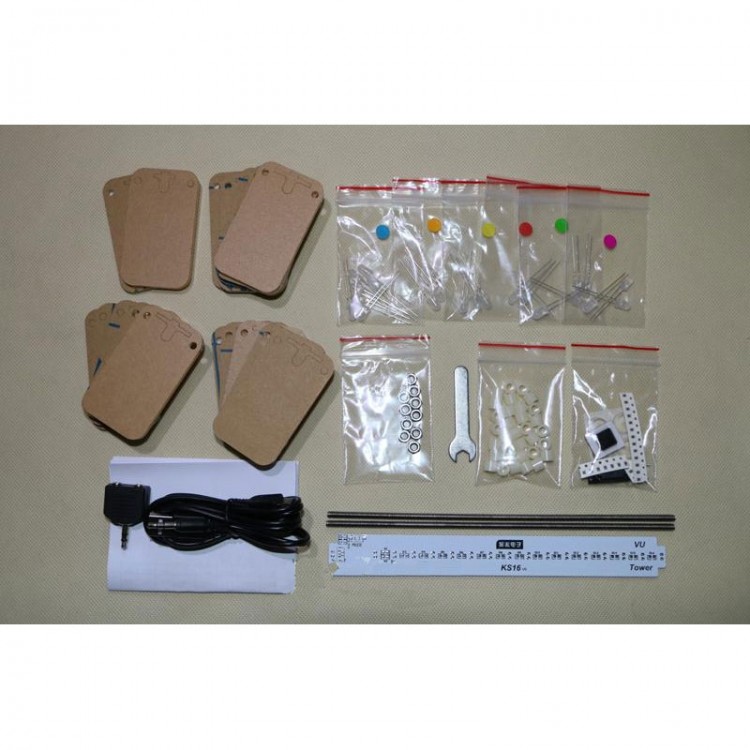

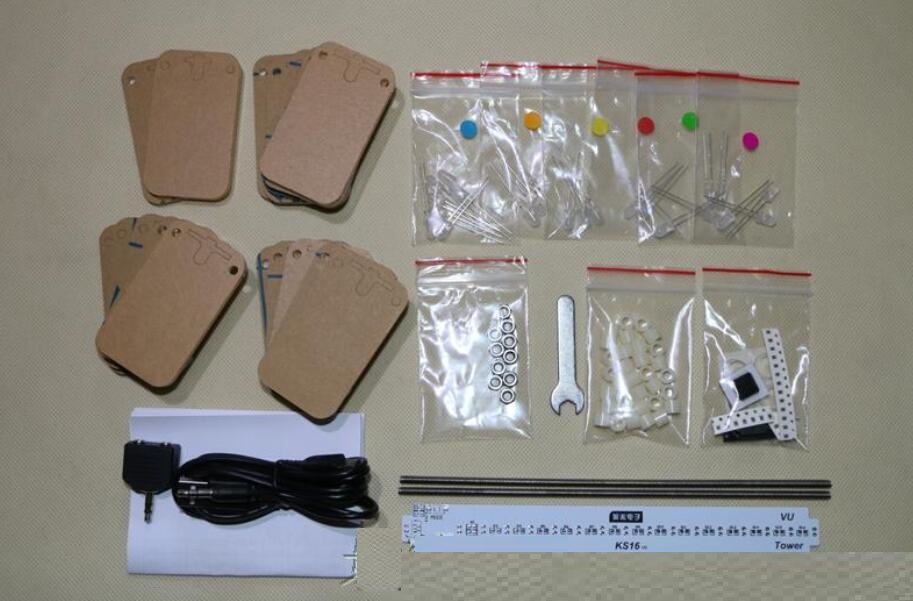

Package List:
- 1 x KS16 Music Spectrum Level Display DIY Kits
