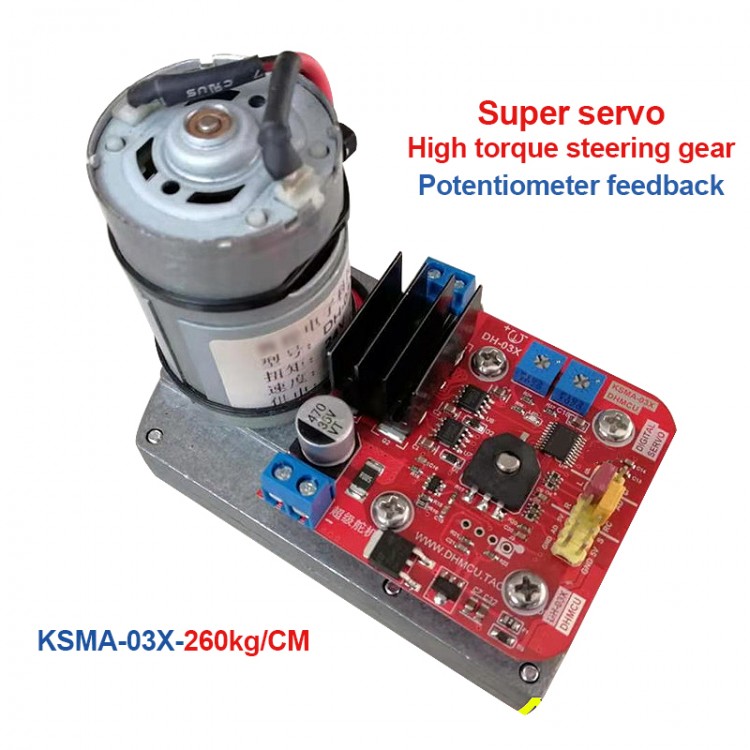

KSMA-03X High Torque Servo Model Airplane Digital Servo Metal Gear Potentiometer Feedback 260KG/CM

KSMA-03X High Torque Servo Model Airplane Digital Servo Metal Gear Potentiometer Feedback 260KG/CM

Version Comparison:
* 110KG/CM: Starting torque 110KG/CM; Holding torque 100KG/CM; Rated speed 0.12S/60° at 24V.
* 180KG/CM: Starting torque 180KG/CM; Holding torque 160KG/CM; Rated speed 0.5S/60° at 24V.
* 260KG/CM: Starting torque 260KG/CM; Holding torque 220KG/CM; Rated speed 0.5S/60° at 24V.
* 380KG/CM: Starting torque 380KG/CM; Holding torque 340KG/CM; Rated speed 0.5S/60° at 24V.

Video Description:
KSMA-03X servo controller wiring:
https://v.youku.com/v_show/id_XNDg3MDU0NTI5Ng==.html

KSMA-03X model airplane remote control wiring explanation:
https://v.youku.com/v_show/id_XNDg3MDU1MzI1Ng==.html

KSMA-03X potentiometer control wiring explanation:
https://v.youku.com/v_show/id_XNDg3MDU0NzQ3Mg==.html

Test Video:
https://v.youku.com/v_show/id_XNDQ3OTQxMTQ4OA==.html?spm=a2h3j.8428770.3416059.1

Technical Parameters:
- Rated voltage: DC 12-24V (12V MIN.-30V MAX.)
- No-load current: <500MA (current limit 10A, it is recommended to use a switching power supply or battery greater than 5A)
- Limit angle:
* 1.0-2MS control mode: 300 degrees (electronic limit adjustable)
* 0.5-2.5MS control mode: 300 degrees (electronic limit adjustable)
* 0-5V analog voltage control: 300 degrees (adjustable electronic limit)
- Ways to control:
* 1.0-2.0MS pulse mode: suitable for model airplane remote control receiver
* 0.5-2.5MS pulse mode: suitable for multi-channel servo controller
* Analog voltage mode: 0-5V analog voltage input control (pulse frequency: 50-333HZ)
- Materials: Gear and shaft: alloy steel; gear box body: cast aluminum
- Product weight: 560g
- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >1,000,000 times/normal torque
- Maximum torque: Optional 110KG/CM, 180KG/CM, 260KG/CM, 380KG/CM

Package Included:
- 1 x Set of Digital Servo

Note:
- Battery is not included.
