KST BLS815 V8.0 20Kgf.cm Digital Servo Brushless Servo Swashplate Servo for 550-700-class Helicopters
Description:
The KST BLS815 brushless servo, in a robust aluminum housing with a precision steel gearbox, is a power hunter among the servos. High-quality workmanship, speedy positioning times and perfect resetting accuracy make the servo universally applicable.
Features:
- Ultra High Torque & Excellent Speed
- Hardened Steel Gear
- CNC Aluminium Case
- High Quality Brushless Motor
- Dual Ball Bearings
- Ideal for 550-700 Class Helicopter Cyclic
Specifications:
- Item name: BLS815 V8.0 Brushless Servo
- Rated Voltage: DC 7.4V
- Voltage Range: DC 6.0V-8.4V
- Torque: 14Kgf.cm at 6.0V / 17Kgf.cm at 7.4V / 20Kgf.cm at 8.4V
- Speed: 0.09sec/60° at 6.0V / 0.08sec/60° at 7.4V / 0.07sec/60° at 8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50° (=100° when 1000μs-2000μs)
- Temperature Range: -10℃ to 65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

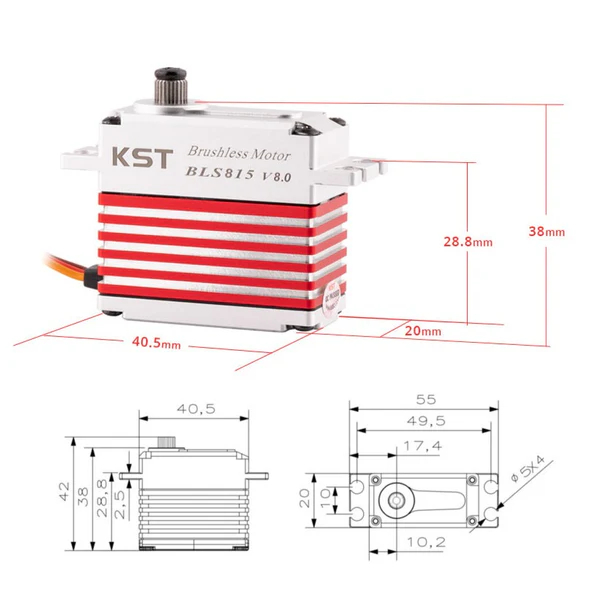

- Case Dimensions: 40.5mm*20mm*38mm ±0.2mm
- Weight: 70g±10%

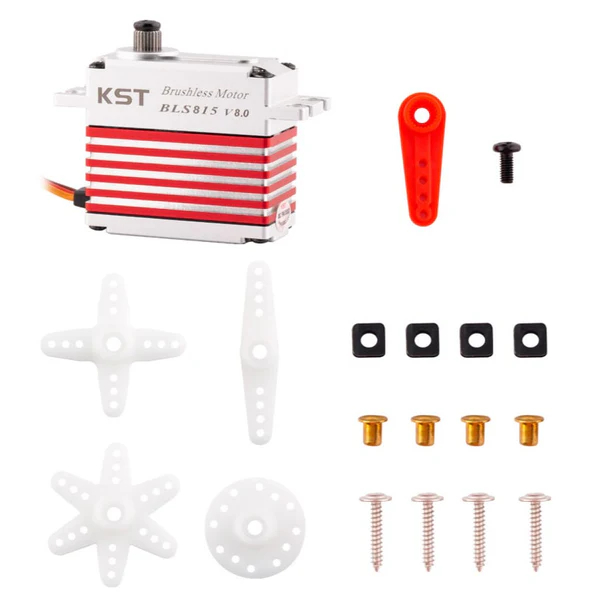

Package Included:
- 1 x BLS815 V8.0 Brushless Servo
- 5 x Plastic Servo Horns
- 1 x Servo Horn Screw
- 4 x Grommets
- 4 x Eyelets
- 4 x Mounting Screws
Packaging Details:
- Weight: 0.22kg
