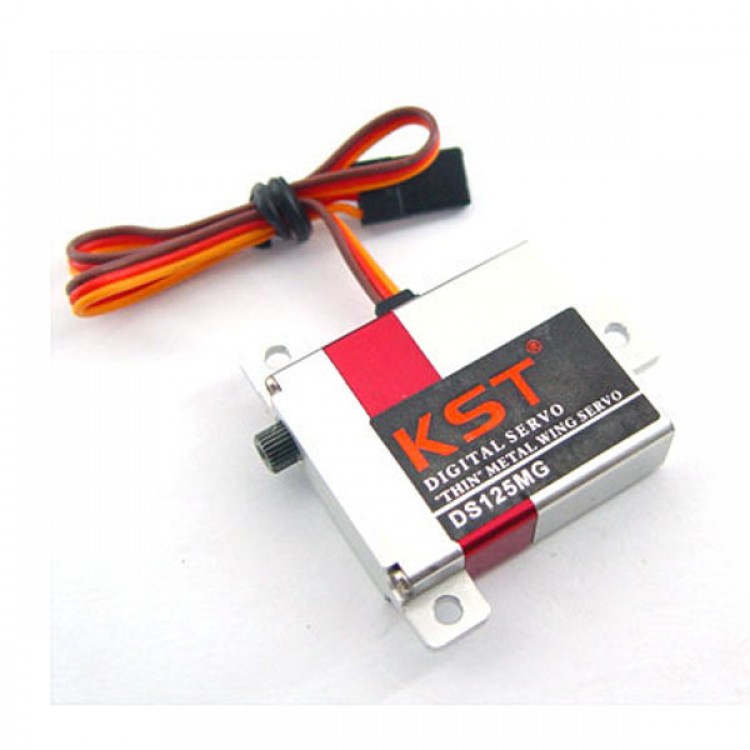

KST DS125MG Metal Digital Coreless Motor Wing Servo Glider 7KG
The KST DS125 Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo it has no geartrain slop. Unlike the other it comes with a nice metal output arm (photo soon).
At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 7kg.cm torque the KST DS125 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.
Specifications:
| KST DS125 Servo Specifications | ||
| Dimensions | 30 mm wide x 10 mm thick x 35.5 mm high | |
| Stall torque (4.8V) | 6.0 kg cm | 83 oz in |
| Stall torque (6V) | 7.0 kg cm | 97 oz in |
| Operating speed (4.8V) | 0.15 sec/60° | |
| Operating speed (6V) | 0.12 sec/60° | |
| Operating voltage | 4.5V to 6.0V | |
| Lead length | 16 cm | 6.3 in |
| Weight | 27.5 g | 0.97 oz |
| Bearings | Dual ball bearings | |
| Gear material | Bronze | |
| Motor Type | DC motor | |
| Driver type | FET | |
| Programmable | No | |
| Supplied accessories | 1 metal output arm, 3 substantial plastic output arms, 2 output arm retaining screws, 3 mounting screws | |
| Optional accessories | CNC alloy mounting fames, laser cut ply mounting frames | |
