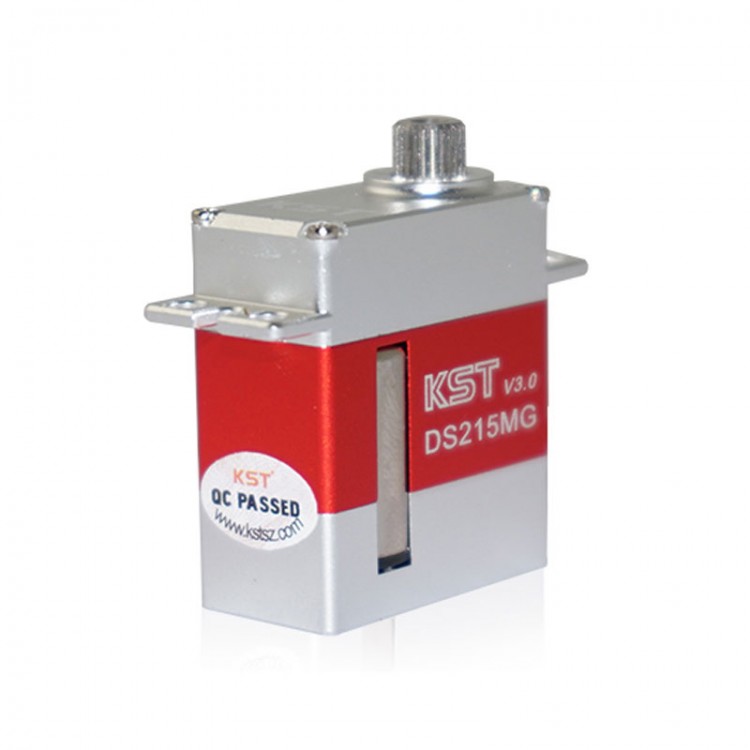

KST DS215MG Digital Servo V3.0 Version Aluminum Metal CNC 12mm Hollow Cup Motor Gear

Availability: In stock, usually dispatched in 1 business day

  • Price:$162.79
  • Price in reward points: 1628 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $159.53 $156.28 $151.39 $144.88 Contact US
Quantity:

KST DS215MG Digital Servo V3.0 Version Aluminum Metal CNC 12mm Hollow Cup Motor Gear



Product Description:

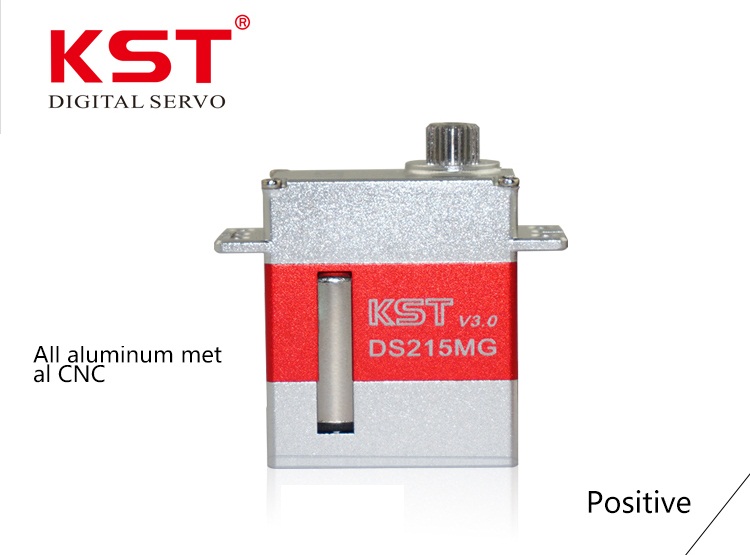

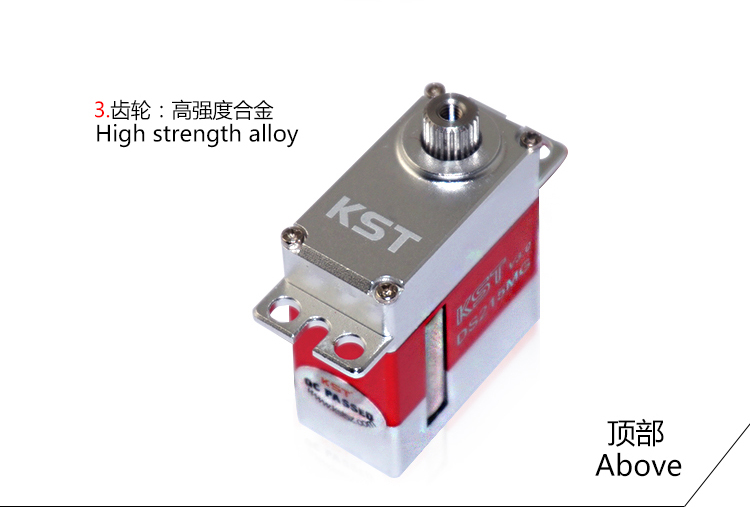

- Domestic KST DS215MG V3.0 lists on the market.It is made of shell Aluminum Alloy CNC,durable, high strength steel for gear tooth, resistance to blast, high smooth degree.The motor is 12MM hollow cup motor, 0.05S reaction, support 7.4V pressure is a selection for 450 servo.
- 215 servo uses hollow cup motor, all metal CNC shell, is the king for the 450 servo.
- The hollow cup motor has the outstanding characteristics:energy saving, sensitive and convenient control characteristics and stable running As a high efficiency energy conversion device, it represents the development direction of the motor. The hollow cup motor breaks through the traditional structure of the rotor of the traditional motor. Hollow cup motor has a very prominent energy saving, control and drag characteristics

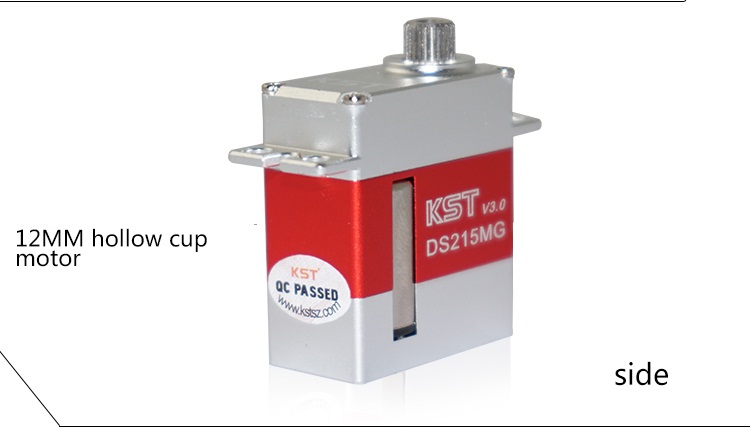

Hollow cup motor:
- Energy saving characteristics: energy conversion efficiency is very high, the maximum efficiency is generally more than 70%, part of the product can reach more than 90% (iron core motor generally in the 70%).
- Control of starting and braking characteristics: fast, fast response, mechanical time constant is less than 28 milliseconds, some products can reach less than 10 milliseconds (more than 100 ms in general motor core); in the state of high-speed operation in the region under the recommended operation, can be easily performed on speed sensitive regulation.
- Drag characteristics: operation stability is very reliable, the fluctuation of the speed is very small, as a micro motor speed fluctuations can be easily controlled within 2%.
- In addition, the energy density of the hollow cup motor is greatly improved, and the weight and volume of the hollow core motor are reduced by 1/3-1/2

Specification:
- Voltage:DC4.5V-8.5V

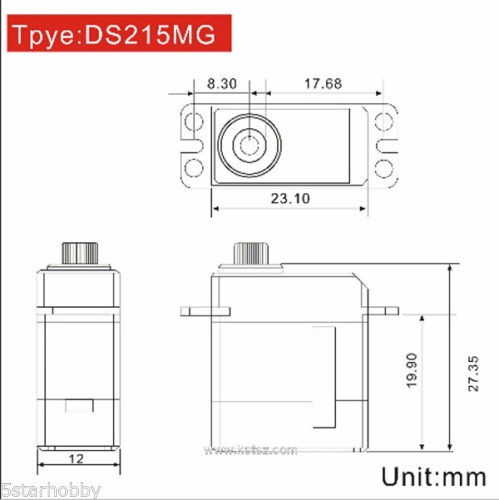

- Size: 22.90*12*27.30mm
- Force:3.70Kg.cm@7.4V;3.10Kg.cm@6.0V ;2.50Kg.cm@4.8V
- Speed:0.05sec/60°@7.4V;0.06sec/60°@6.0V;0.07sec/60°@4.8V
- Weight:20g
- Working Frequence:1520us/333Hz, 800us-2200us
- Motor:12mm Coreless

Neutral point seeking method:
- Neutral point adjustment on the servo,if the steering rocker is in the middle, the servo will automatically return to the neutral position.And then install the rudder arm, if you installed angle of rudder arm is likely, power steering return to neutral point caused by the death card for specific steering, simple method of neutral point are as follows:
First open the remote control;Then connect the receiver power supply, the steering line inserted into the RUDD channel, the servo is back to neutral point;When the servo returns to the neutral point, the rudder arm is installed, so that the rudder arm is perpendicular to the servo or parallel to the servo.

Package included:
- 1 x KST DS215MG Digital Coreless Swashplate Servo
