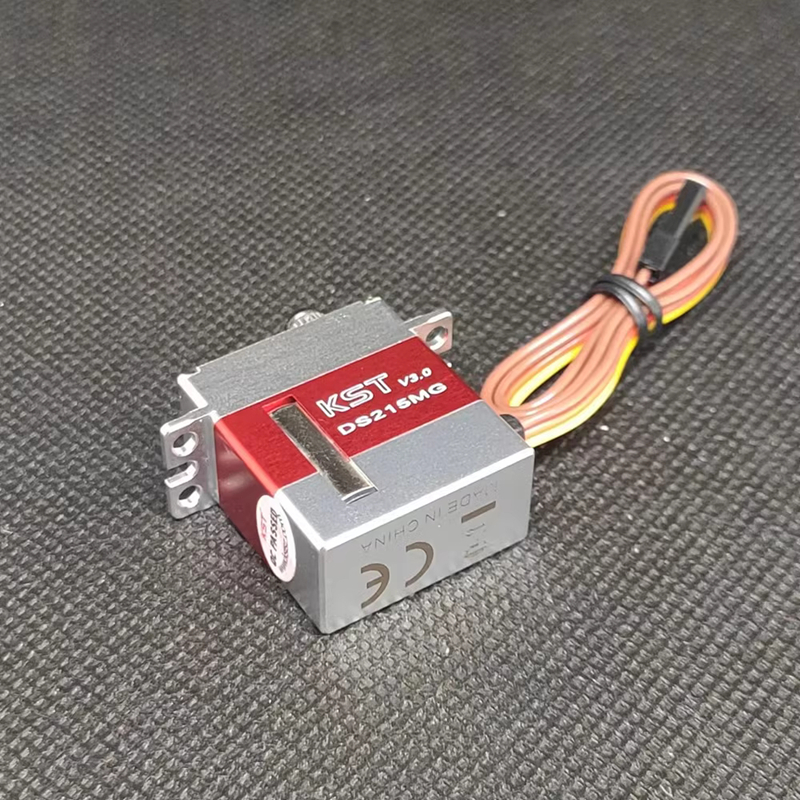

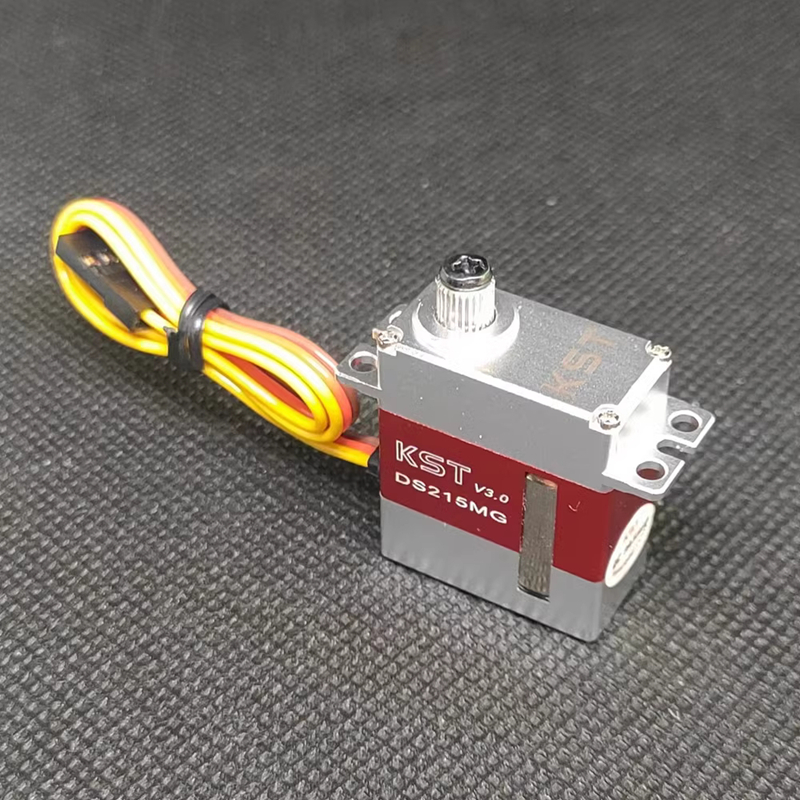

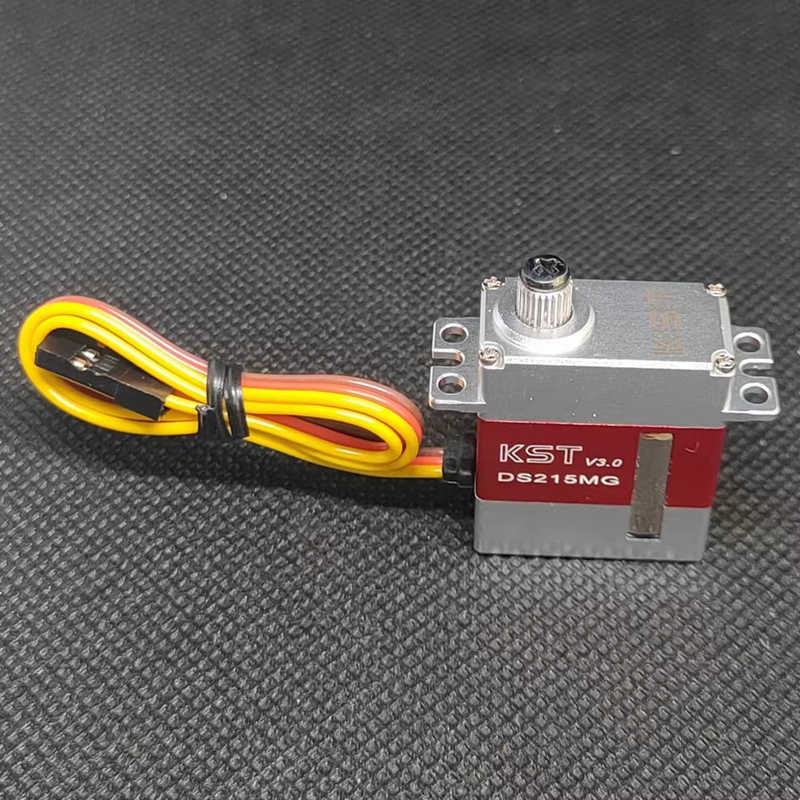

KST DS215MG V3.0 Digital Servo Metal Gear Servo (without Metal Servo Arm) for 450-class Helicopters
Description:
DS215MG servo features a coreless motor and an all-metal CNC housing. The servo is suitable for the swashplate mechanism and tail locking mechanism of 450-class helicopters.
The coreless motor has outstanding energy-saving characteristics, sensitive and convenient control characteristics and stable operation characteristics. As a high-efficiency energy conversion device, the motor represents the development direction of electric motors.
The coreless motor breaks through the rotor structure of the traditional motor in terms of structure. It uses a coreless rotor. The coreless motor boasts outstanding energy-saving, controlling, and dragging characteristics.
Specifications:
- Working voltage: DC 6.0V-7.4V
- Torque: 3.1Kg.cm at 6.0V; 3.7Kg.cm at 7.4V
- Speed: 0.06sec/60° at 6.0V; 0.05sec/60° at 7.4V

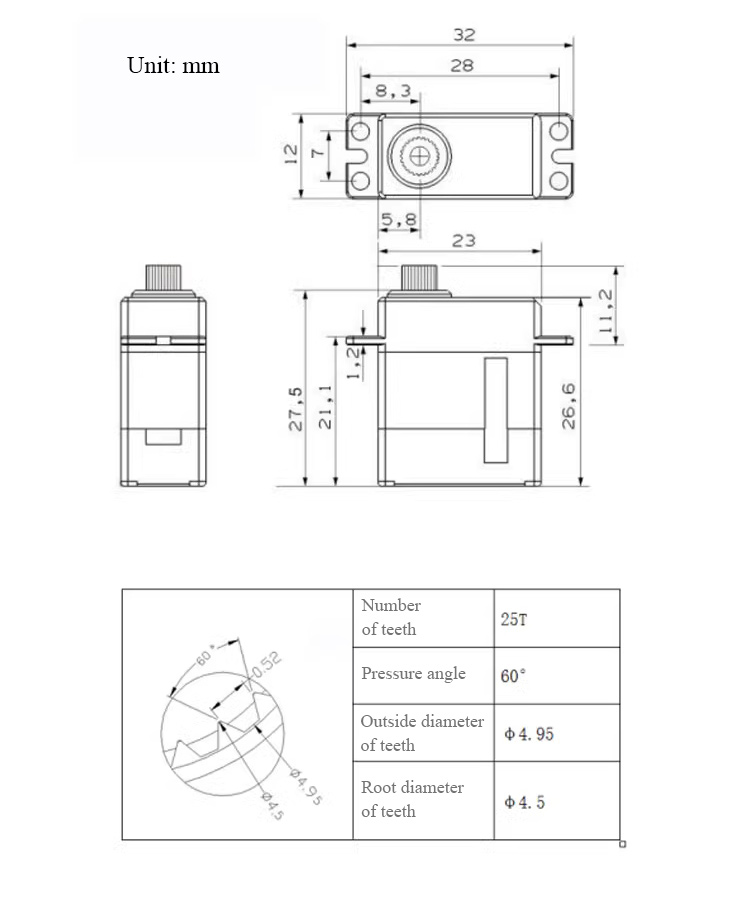

- Dimensions: 23mm x 12mm x 27.5mm / 0.9" x 0.5" x 1.1"
- Working frequency: 1520us/333Hz 800us-2200us
- Weight: 20g/0.04lb
- Motor: 12mm/0.5" coreless motor
- Ball bearings: 2BB

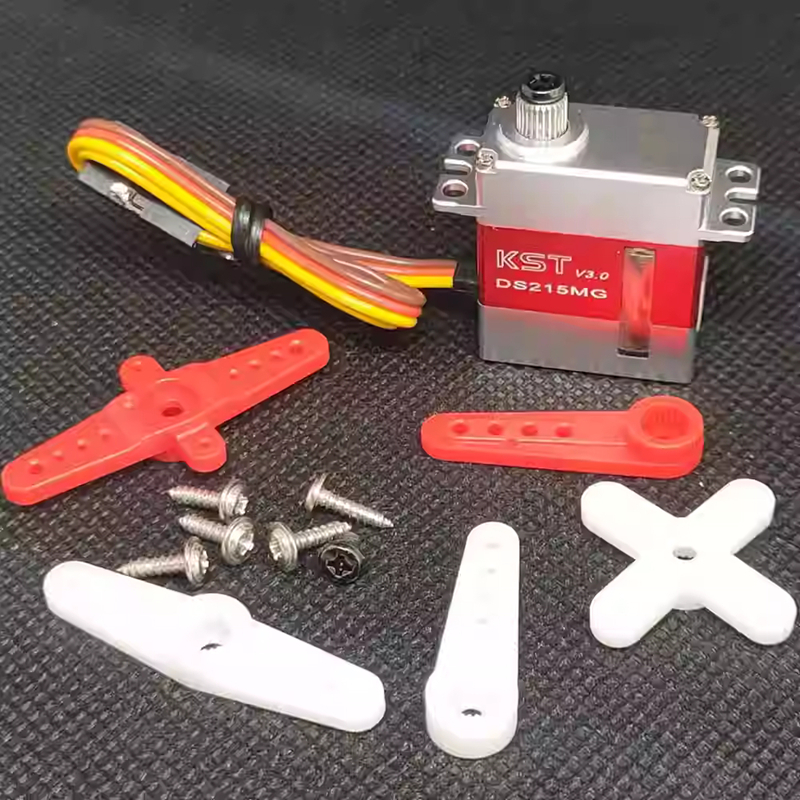

Package Included:
- 1 x Set of digital servo
Packaging Details:
- Weight: 0.22kg
