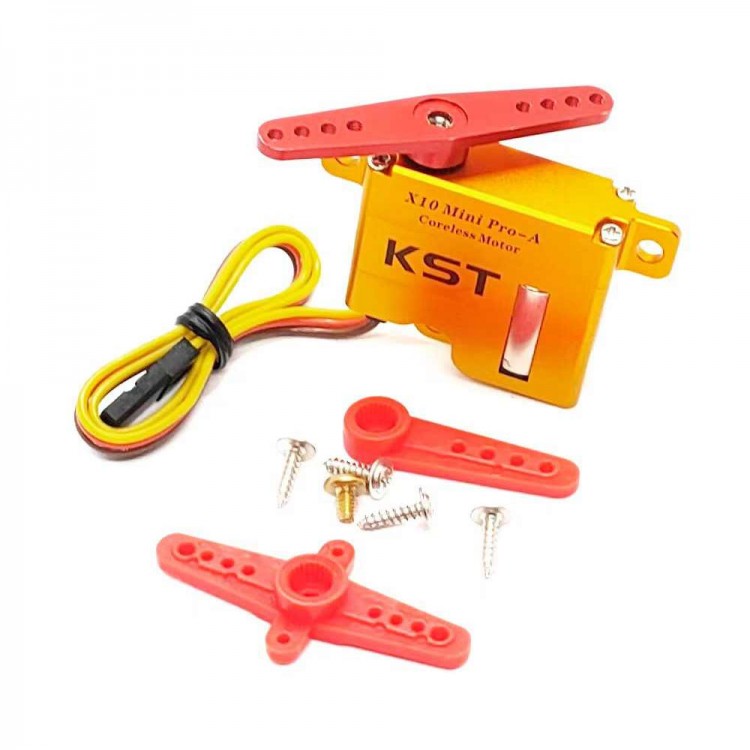

KST X10 Mini Pro-A 8.0Kgf.cm Metal Digital Servo HV Servo (with 42mm Metal Servo Arm) for Gliders

KST X10 Mini Pro-A 8.0Kgf.cm Metal Digital Servo HV Servo (with 42mm Metal Servo Arm) for Gliders

Description:
The new X10 Mini Pro series is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.

Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.

Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gears to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.

Features:
- Programmable
- Supports Soft Start
- Hardened Steel Gears
- Anodized CNC Aluminium Case
- Ultra High Torque & Excellent Speed
- Smaller Size and Larger Travel Angle
- Ideal for Competition Gliders and Large Scale Gliders

Specifications:
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque: 4.5Kgf.cm at 4.8V, 6.0Kgf.cm at 6.0V, 7.2Kgf.cm at 7.4V, 8.0Kgf.cm at 8.4V
- Speed: 0.13sec/60° at 4.8V, 0.11sec/60° at 6.0V, 0.09sec/60° at 7.4V, 0.08sec/60° at 8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±60° (=120° Total)
- Temperature Range: -10℃ to 65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 30mm*10mm* 28mm±0.2mm
- Weight: 20g±10%

Package Included:
- 1 x Servo
- 1 x Servo Horn Screw
- 2 x Plastic Servo Horns
- 4 x Mounting Screws
- 1 x 42mm Metal Servo Arm

Packaging Details:
- Weight: 0.22kg

Note:

- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
