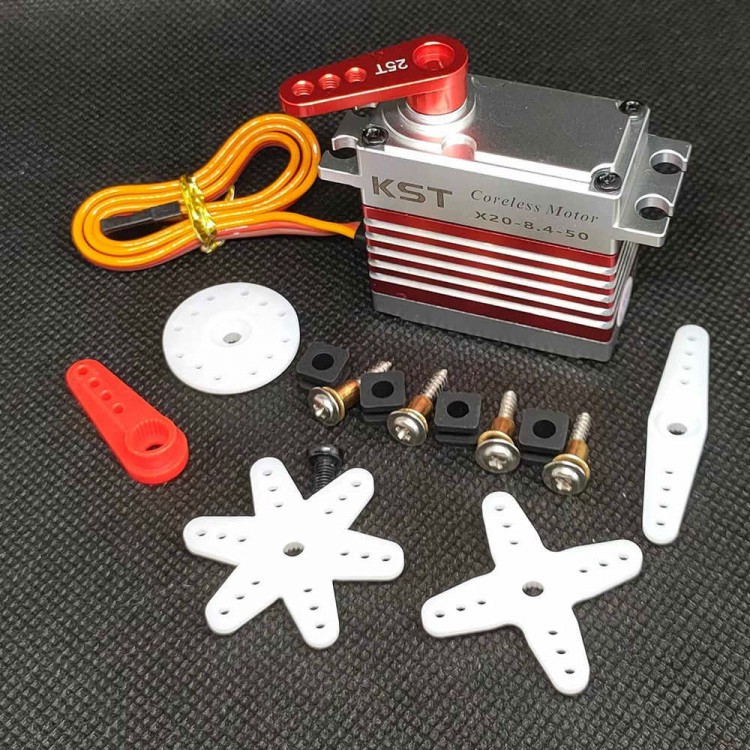

KST X20-8.4-50 ±50° 45Kgf.cm Digital Servo Brushless Servo + 28mm Metal Servo Arm for RC Planes

KST X20-8.4-50 ±50° 45Kgf.cm Digital Servo Brushless Servo + 28mm Metal Servo Arm for RC Planes

Description:
X20-8.4-50 is an incredibly powerful servo that features a full CNC aluminum case, high power coreless motor, and metal gears throughout. Boasting an incredible 45Kgf.cm of torque at 8.4V, the X20-8.4-50 will suit a wide variety of RC applications from giant scale aircraft, 1/8 scale nitro and electric off-road or on-road vehicles, crawlers, and much more!

Features:
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
- Programmable

Specifications:
- Rated Voltage: DC7.4V
- Working voltage: DC6.0V-8.4V
- Torque: 38Kgf.cm at 6.0V; 42Kgf.cm at 7.4V; 45Kgf.cm at 8.4V
- Speed: 0.20sec/60° at 6.0V; 0.17sec/60° at 7.4V; 0.15sec/60° at 8.4V
- Working signal: 1520us/333Hz, 900us-2100us
- Default Travel Angle: ±50° = 100° Total
- Temperature Range: -10℃ to 65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 40.5mm*21mm*42mm
- Weight: 78g

Package Included:
- 1 x Set of digital servo

Packaging Details:
- Weight: 0.2kg
