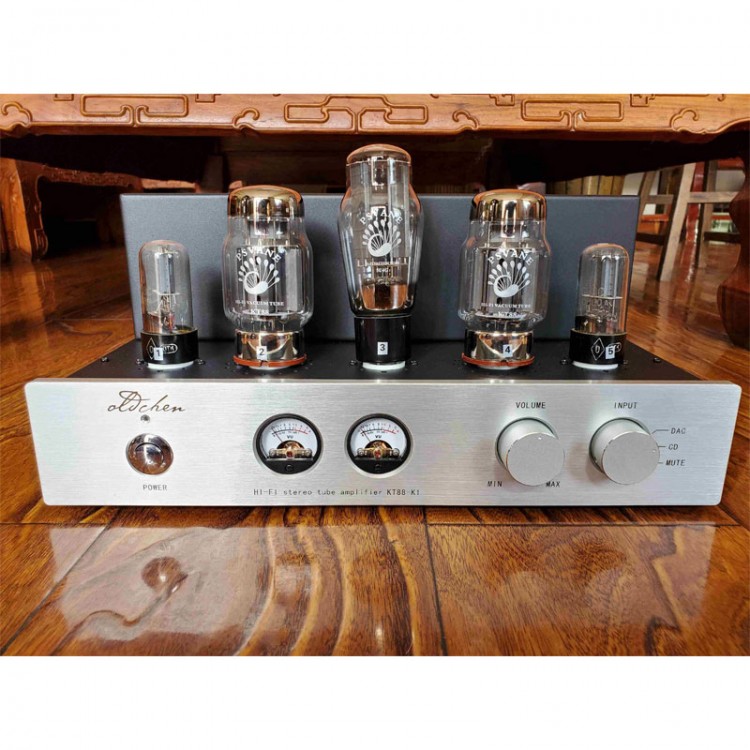

KT88-K1 VU Meter Version Class A HiFi Pure Electronic Tube Amplifier 15Wx2 Output with 5 Vacuum Tubes

KT88-K1 VU Meter Version Class A HiFi Pure Electronic Tube Amplifier 15Wx2 Output with 5 Vacuum Tubes

Description:
- Solicited suggestions from countless fans, and made great improvements in appearance and circuit. After more than a year of research and development and testing, the brand-new KT88-K1 is finally available. The new K1 will inherit the bright mid-range and high-pitched treble of the previous tube amplifier. The transparent features have greatly improved the looseness and thrust of the low frequency, and it is a more cost-effective product.

- K1 is still the traditional craft of purely manual scaffolding wiring and welding. The circuit draws on the advantages of domestic and foreign classic circuits. The 5U4G line of filament rectifier CLC inductance filter, 6H8C promotes KT88, the power supply adopts a new imported 0.35 chip 105*60, and the output adopts a new Imported Z11 film 86*50, no distortion output power 15W, easy to deal with bookshelves or floor boxes. The scaffolding strips are mainly connected with Teflon silver-plated wire through the machine, using imported fever-level components such as imported fever capacitors, metal film resistors, and ALPS potentiometers.

- K1 adopts 1.5mm thick steel plate electrostatic spraying overall chassis, 8mm oxidized brushed aluminum panel and solid frosted aluminum knob. It has 2 input and output 4 ohms and 8 ohms two sets of pure copper crystal terminals.

- Bluetooth version supports for AAC, aptX, aptX-LL, aptX-HD.

Specification:
- Process: hand built shed welding
- Type: single-end class A tube amplifier
- Rated output power: 15W x 2 (RMS 8ohms)
- Frequency response: 20Hz - 25kHz (-1dB)
- THD+N: < 1% (1kHz)
- Input sensitivity: 500mV - 2000mV
- Input impedance: 100kohms
- Output impedance: 4ohms - 8ohms
- SNR: 88dB
- Product size: 370 x 240 x 180mm
- Packaging weight: 21kg
- Power consumption: 140W

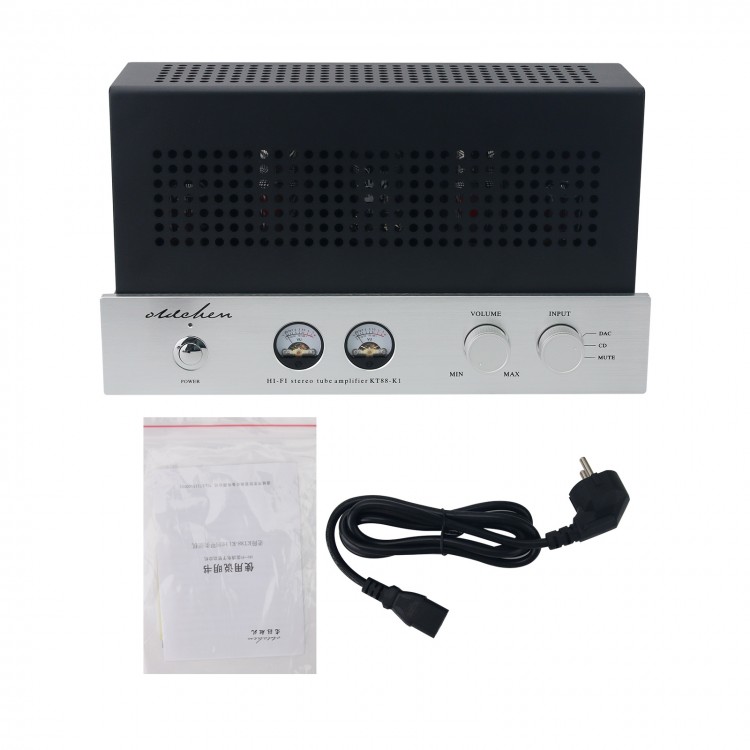

Package Included:
- 1 x Tube Amplifier
